447567 | Baja Designs Squadron/S2 Unlimited Pocket Kit Fog Lights For Ford F-150 Raptor | 2017-2020
Squadron/S2 Unlimited Pocket Kit Fog Lights | 2017-2020 | Ford F-150 Raptor
Description

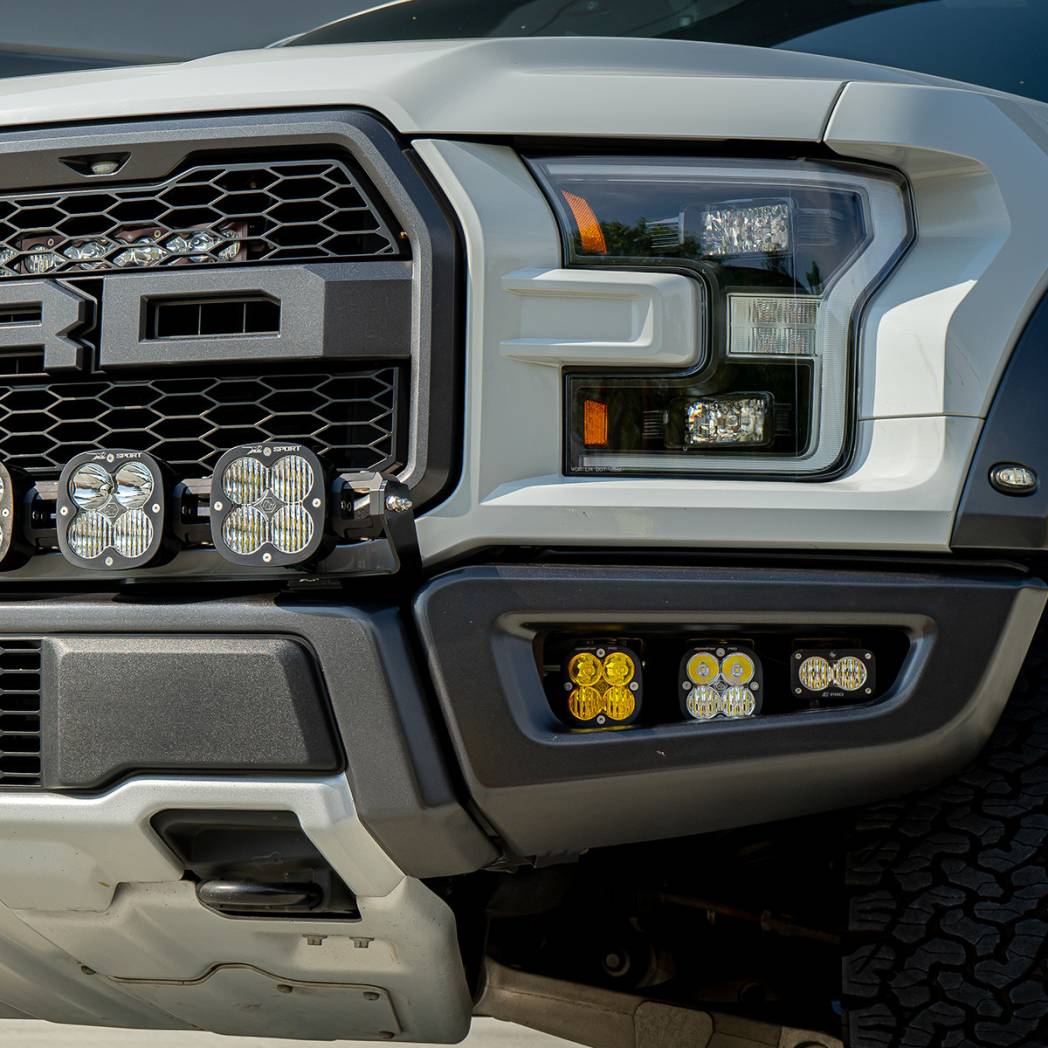

Separate your truck from the pack and take your lighting to the highest level with the Baja Designs 2017-2020 Ford Raptor “Unlimited” Fog Light Kit. This kit features two Squadron Pros, two Squadron Racers and two S2 Pros for no-compromise performance.
The Squadron Pro is the go-to choice when you want to annihilate the night and blast away the darkness. Each compact LED light boasts an impressive 4,600 lumens at 40 watts, to throw out brilliant brightness that is easy on your battery. The secret to Squadron Pro’s brilliance is Cree LEDs, which provide 20% more reach than standard LEDs with the same power consumption.
The Squadron Sport uses four Cree LEDs to produce 3,150 lumens at 26 watts to produce crisp, clear light that pierces the darkness and improves visibility in any and all conditions.
Last but certainly not least, the compact S2 offers an incredible 2,450 lumens of brilliance packed into a tiny 3 x 2-inch housing. Ounce for ounce, the S2 Pro is the brightest LED light on the market.

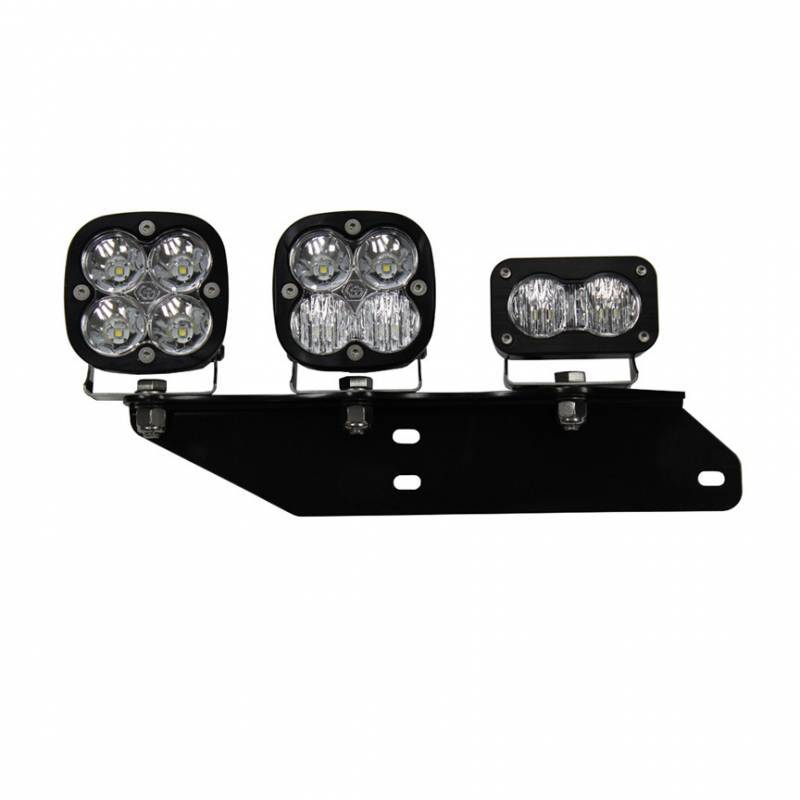

This mounting kit includes two Ford-specific mounting brackets and a wiring harness, allowing you to use your factory switch.
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications - 720001
| Product Type | Squadron Racer Edition LED Light Pod |
| Description | Racer Spot; Clear |
| Beam Pattern | Racer Spot |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | High Intensity Cree LED |
| Lighting Quantity | 4 |
| Brightness (Lumens) | 4,300 |
| Wattage (W) | 40 |
| Amperage Rating (A) | 2.9 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 3.07 |
| Height (in.) | 3.07 |
| Depth (in.) | 2.77 |
| Weight (lbs.) | 0.75 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Specifications - 490003
| Product Type | Squadron Pro LED Light Pod |
| Description | Driving/Combo; Clear |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Quantity | 4 |
| Brightness (Lumens) | 4,600 |
| Wattage (W) | 40 |
| Amperage Rating (A) | 2.9 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 3.07 |
| Height (in.) | 3.07 |
| Depth (in.) | 2.77 |
| Weight (lbs.) | 0.75 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Specifications - 480005
| Product Type | S2 Pro LED Light Pod |
| Description | Wide Cornering; Clear |
| Beam Pattern | Wide Cornering |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 2 |
| Brightness (Lumens) | 2,450 |
| Wattage (W) | 24 |
| Amperage Rating (A) | 1.7 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 2.93 |
| Height (in.) | 1.76 |
| Depth (in.) | 1.68 |
| Weight (lbs.) | 0.5 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
