K947563FL | 6 Inch Suspension Lift Kit w/ 4 Link & Fox Shocks (2019-2022 Ram 3500 4WD | NON Air Ride)

2019-2022 Ram 3500 Pickup 4WD | Non Air Ride)

K947563FL
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $5,548.48
Qty:

Description

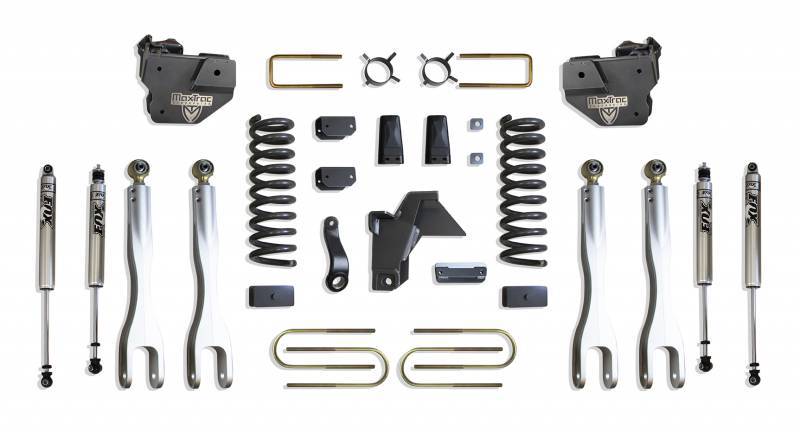

MAXTRAC SUSPENSION’S KIT# K947563L IS A COMPLETE 6″ LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4LINKS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS & FRONT/REAR MAXTRAC SHOCKS

Part Number: K947563L
Kit Number Break Down:
6" LIFT COILS (PART# 752860)
TRAC BAR BRACKET & HARDWARE (PART# 947400-1)
DRIVER SIDE 4-LINKS ARMS & BRACKET (PART# 947200-3)
PASS. SIDE 4-LINK ARMS & BRACKET (PART# 947200-4)
MAXTRAC SHOCKS (PART# 947360S)
3.5" REAR BLOCKS W/ U-BOLTS (PART# 907335)
Kit Type: LIFT/LEVEL

Notes:
REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
DOES NOT FIT 2WD MODELS
KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
MAXTRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING.
DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES

Application List

2019-2022 Ram 3500 Pickup 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*
