447724 | Baja Designs Squadron-R SAE Pocket Kit Fog Lights For Ford/Subaru | 2013-2019
Squadron-R SAE Pocket Kit Fog Lights | 2013-2019 | Ford/Subaru: See Application List
Description
This Baja Designs SAE-certified light is the same renowned Squadron that defines off-road lighting performance. This version features an SAE-certified circuitry and pattern for a street-legal punch! We tested and abused this light in the factory, then we unleased it to the world where it had been abused out on the trails.

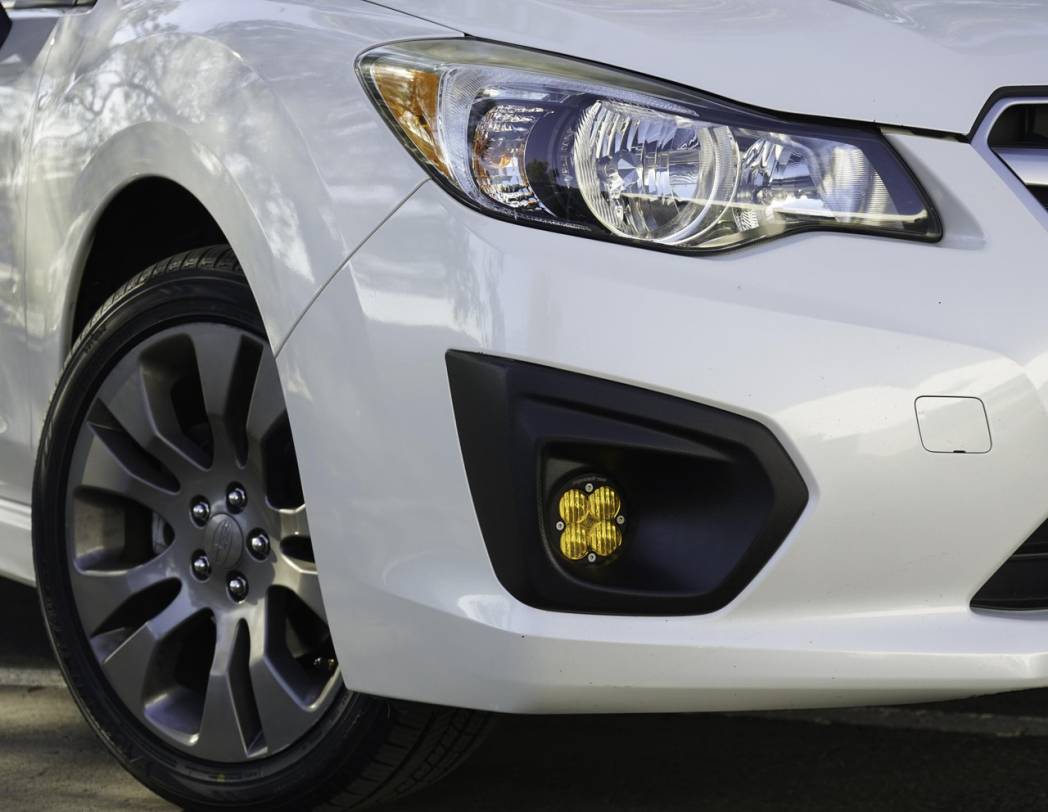

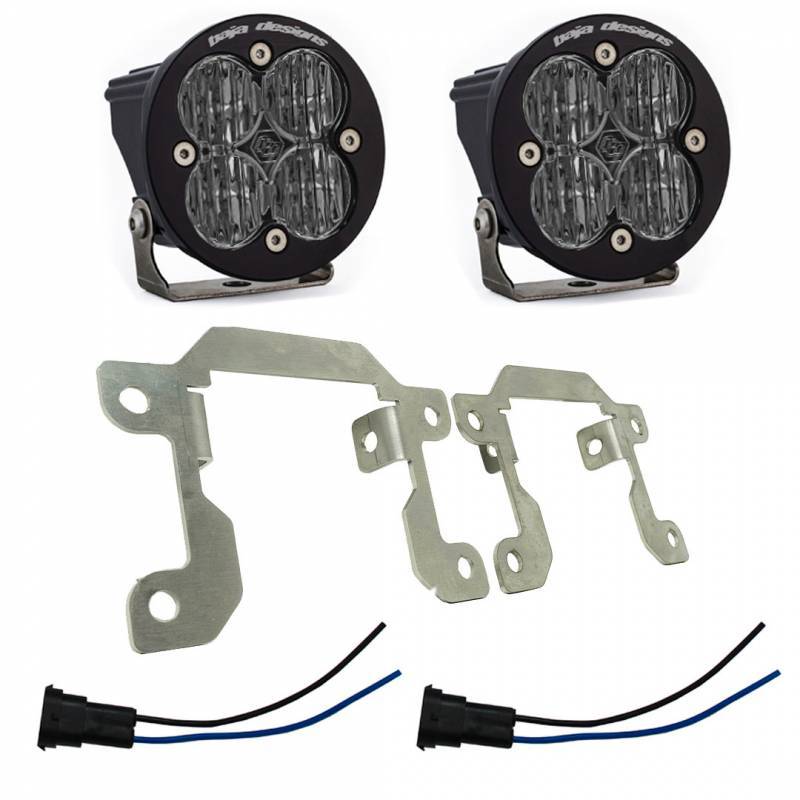

Rest assured that the Squadron is a serious upgrade to any LED, HID, and Halogen factory fog lights. This kit includes vehicle-specific brackets for the listed vehicle(s) below.
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications - 247805
Product Type | Squadron-R SAE LED Light Pod Pair w/ Wiring Harness |
Description | Round; Wide Cornering; Clear; Pair |
Beam Pattern | Wide Cornering |
Lens Color | Clear |
Lighting Modes | Beam |
Light Quantity | 2 |
Lighting Type | Forward Projecting |
Lighting Technology | Cree LED |
Lighting Quantity | 4 |
Brightness (Lumens) | 2,480 |
Wattage (W) | 22 |
Amperage Rating (A) | 1.6 |
Average Rated Life (hr.) | 49,930 |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Material | Hardcoated Polycarbonate |
Bezel Material | Billet Machined Aluminum |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Wiring Harness Included | No |
Overvoltage Protection | Built-In |
Dimensions
Length (in.) | 3.07 |
Height (in.) | 3.07 |
Depth (in.) | 2.77 |
Weight (lbs.) | 0.75 |
Standards & Compliance
Street Legal | Yes |
DOT Approved | Yes |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
DISCLAIMER AND WARNING
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Application List
2013-2014 Ford Focus ST
2013-2016 Ford Fusion
2015-2017 Ford Mustang
2015-2016 Ford Transit-150
2015-2016 Ford Transit-250
2015-2016 Ford Transit-350
2015-2016 Ford Transit-350 HD
2013-2016 Subaru BRZ
2016-2019 Subaru Crosstrek
2014-2018 Subaru Forester
2013-2016 Subaru Impreza
2010-2012 Subaru Legacy
2010-2012 Subaru Outback
2015-2019 Subaru WRX
2015-2019 Subaru WRX STI
2013-2015 Subaru XV Crosstrek
