447760 | Baja Designs Squadron Sport/S2 Sport Pocket Kit Fog Lights For Ford Bronco | 2021-2022
Squadron Sport/S2 Sport Pocket Kit Fog Lights | 2021-2022 | Ford Bronco
Description
Baja Designs know that you use your Bronco for what is was designed for. That’s why BD offers this Squadron Sport/S2 Sport Fog Pocket Light Kit.
Light up the trail and differentiate yourself from the pack with a set of S2 Sports in Driving/Combo, a set of S2 Sports in Wide Cornering, and a set of Squadron Sports in Spot.
The compact and powerful S2 Sports pump out 1,130 lumens each via two super-bright LEDs featuring quality that is second to none. Each Squadron Sport uses four Cree LEDs to produce 3,150 lumens at 26 watts to produce crisp, clear light that pierces the darkness and improves visibility in any and all conditions.
The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3). The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2). The Spot is a longer and narrower 8-degree beam focus for illumination further down the trail or road.

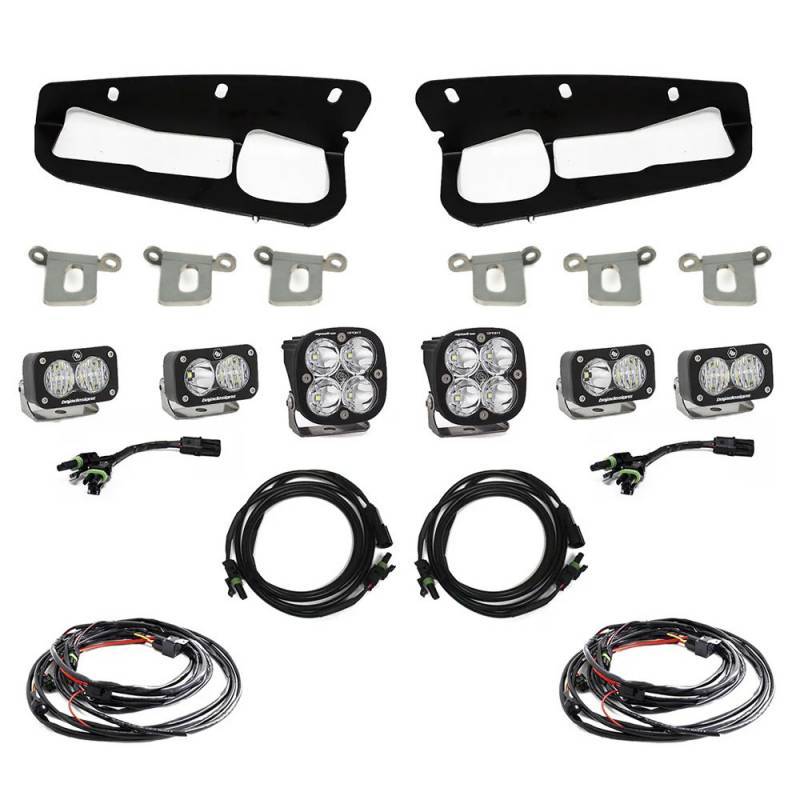

The included brackets require no cutting or drilling, and the wiring that is included allow for the lights to be operated from the upfitter Connectors in the cab. This is a comprehensive kit and does not require any additional parts for installation.
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications - 540003
| Product Type | S2 Sport LED Light Pod |
| Description | Driving/Combo; Clear |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 2 |
| Brightness (Lumens) | 1,130 |
| Wattage (W) | 12 |
| Amperage Rating (A) | 0.9 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 2.93 |
| Height (in.) | 1.76 |
| Depth (in.) | 1.68 |
| Weight (lbs.) | 0.50 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Specifications - 540005
| Product Type | S2 Sport LED Light Pod |
| Description | Wide Cornering; Clear |
| Beam Pattern | Wide Cornering |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 2 |
| Brightness (Lumens) | 1,130 |
| Wattage (W) | 12 |
| Amperage Rating (A) | 0.90 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum/td> |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 2.93 |
| Height (in.) | 1.76 |
| Depth (in.) | 1.668 |
| Weight (lbs.) | 0.50 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Specifications - 550001
| Product Type | Squadron Sport LED Light Pod |
| Description | Spot; Clear |
| Beam Pattern | Spot |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 4 |
| Brightness (Lumens) | 3,150 |
| Wattage (W) | 26 |
| Amperage Rating (A) | 2.00 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 3.07 |
| Height (in.) | 3.07 |
| Depth (in.) | 2.77 |
| Weight (lbs.) | 0.75 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
