447762 | Baja Designs Squadron Sport/S2 Sport Pocket Kit Amber & Clear Fog Lights For Ford Bronco | 2021-2022
Squadron SAE/S2 Sport Pocket Kit Amber & Clear Lights For Ford Bronco | 2021-2022
Description

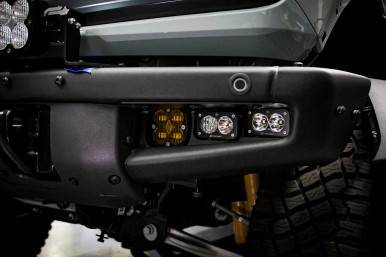

Baja Designs know that you use your Bronco for what is was designed for. That’s why BD offer this Squadron Sport/S2 Sport Fog Pocket Light Kit. Light up the trail and differentiate yourself from the pack with a set of S2 Sports in Driving/Combo, a set of S2 Sports in Wide Cornering, and a set of Squadron Amber SAE in wide cornering.
The compact and powerful S2 Sports pump out 1,130 lumens each via two super-bright LEDs featuring quality that is second to none. The Squadron SAE is just as rugged as our off-road lights, putting out 2,480 lumens via four powerful LEDs for a street-legal punch.
The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3). The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).

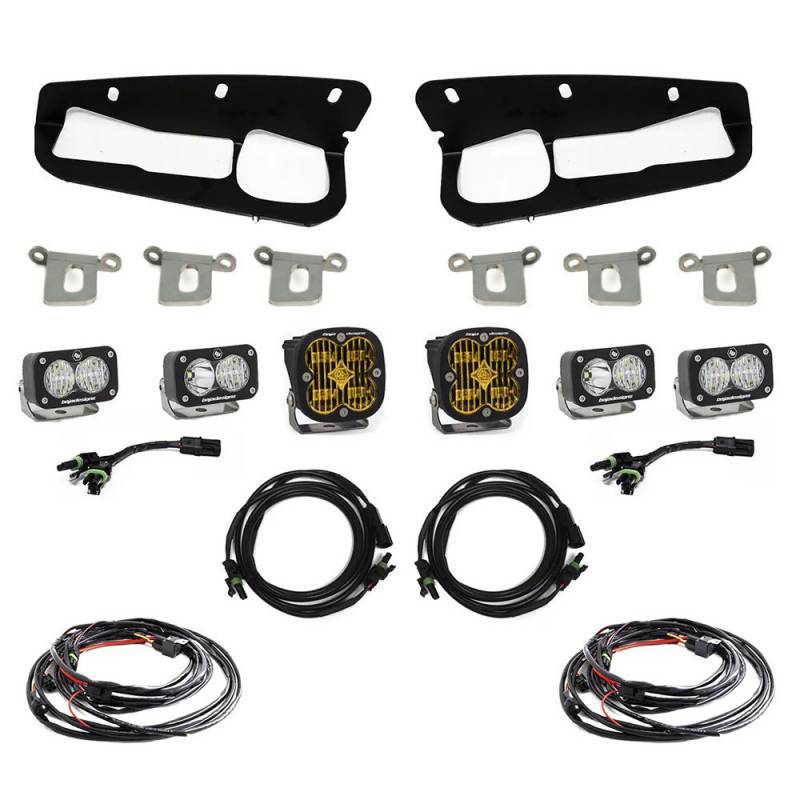

The included brackets require no cutting or drilling, and the wiring that is included allow for the lights to be operated from the upfitter Connectors in the cab. This is a comprehensive kit and does not require any additional parts for installation.
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications - 540003
| Product Type | S2 Sport LED Light Pod |
| Description | Driving/Combo; Clear |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 2 |
| Brightness (Lumens) | 1,130 |
| Wattage (W) | 12 |
| Amperage Rating (A) | 0.9 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 2.93 |
| Height (in.) | 1.76 |
| Depth (in.) | 1.68 |
| Weight (lbs.) | 0.50 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Specifications - 540005
| Product Type | S2 Sport LED Light Pod |
| Description | Wide Cornering; Clear |
| Beam Pattern | Wide Cornering |
| Lens Color | Clear |
| Lighting Modes | Beam |
| Light Quantity | 2 |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 2 |
| Brightness (Lumens) | 1,130 |
| Wattage (W) | 12 |
| Amperage Rating (A) | 0.90 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum/td> |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | No |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 2.93 |
| Height (in.) | 1.76 |
| Depth (in.) | 1.668 |
| Weight (lbs.) | 0.50 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Specifications - 257815
| Product Type | Squadron SAE LED Light Pod Pair w/ Wiring Harness |
| Description | Wide Cornering; Amber; Pair |
| Beam Pattern | Wide Cornering |
| Lens Color | Amber |
| Lighting Modes | Beam |
| Light Quantity | 2 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 4 |
| Brightness (Lumens) | 2,480 |
| Wattage (W) | 22 |
| Amperage Rating (A) | 1.60 |
| Average Rated Life (hr.) | 49,930 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Bezel Material | Billet Machined Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Wiring Harness Included | Yes |
| Overvoltage Protection | Built-In |
Dimensions
| Length (in.) | 3.07 |
| Height (in.) | 3.07 |
| Depth (in.) | 2.77 |
| Weight (lbs.) | 0.75 |
Standards & Compliance
| Street Legal | Yes |
| DOT Approved | Yes |
| Standards/Compliance (SAE) | SAE Standard J583 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
