447763 | Baja Designs Squadron Pro/S2 Sport Pocket Kit Fog Lights For Ford Bronco | 2021-2020

Squadron Pro/S2 Sport Pocket Kit Fog Lights | 2021-2020 | Ford Bronco

447763
Pricing: $1,834.73
Qty:
Free Ground Shipping | Exclusions Apply*

Description

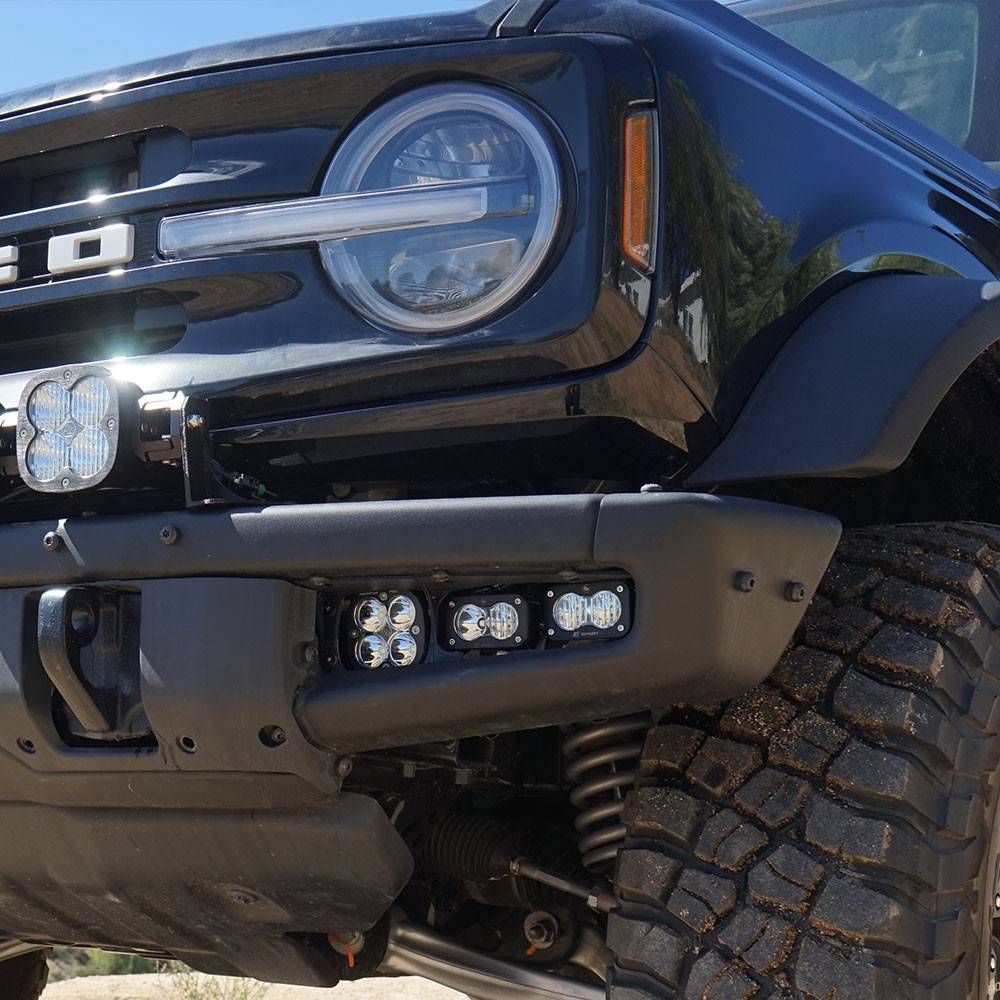

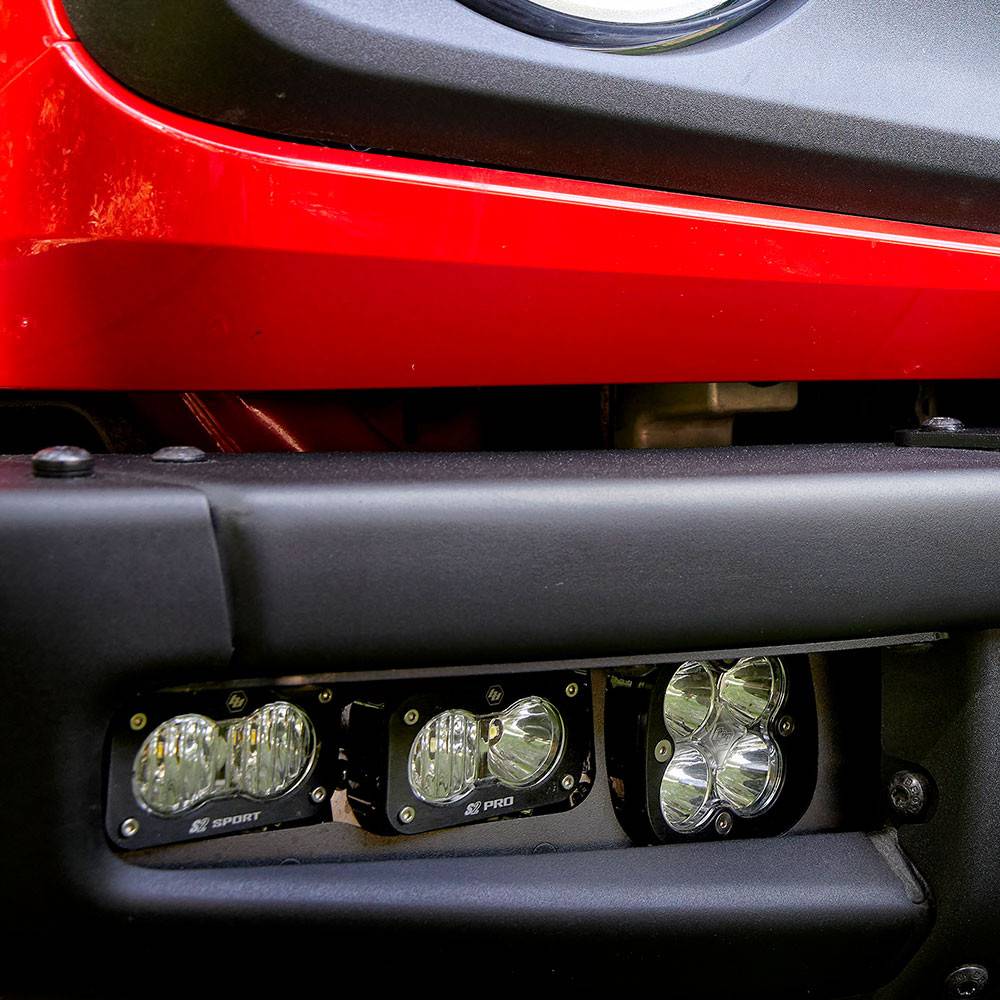

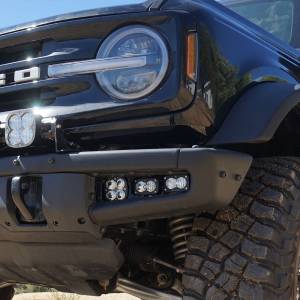

Baja Designs know that you use your Bronco for what is was designed for. That’s why BD offer this Squadron Pro/S2 Sport Fog Pocket Light Kit. Light up the trail, lead the pack and differentiate yourself from the pack with a set of set of S2 Sports in Driving/Combo, a set of S2 Sports in Wide Cornering, and a set of Squadron Pros in Spot.

The Squadron Pro is the go-to choice when you want to annihilate the night and blast away the darkness. The compact LED light boasts an impressive 4,600 lumens at 40 watts, to throw out brilliant brightness that is easy on your battery. The secret to Squadron Pro’s brilliance is Cree LEDs, which provide 20% more reach than standard LEDs with the same power consumption. The compact S2 Sports pump out 1,130 lumens each via two super-bright LEDs featuring quality that is second to none.

The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3). The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2). The Spot is a longer and narrower 8-degree beam focus for illumination further down the trail or road.

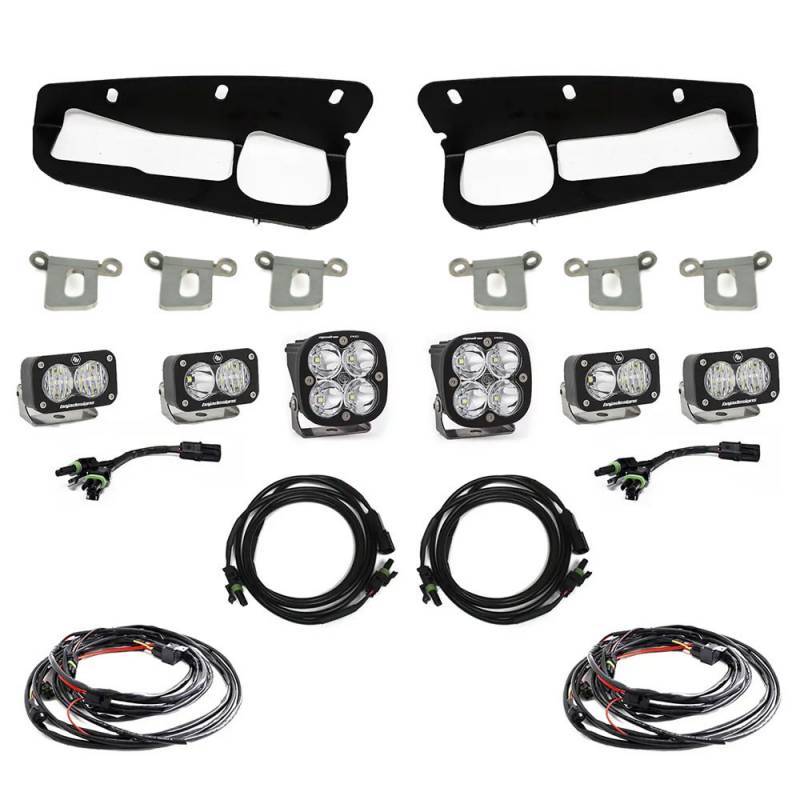

The included brackets require no cutting or drilling, and the wiring that is included allow for the lights to be operated from the upfitter Connectors in the cab. This is a comprehensive kit and does not require any additional parts for installation.

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications - 540003

 Product Type  S2 Sport LED Light Pod
 Description  Driving/Combo; Clear
 Beam Pattern  Driving/Combo
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  1
 Lighting Type  Forward Projecting
 Lighting Technology  LED
 Lighting Quantity  2
 Brightness (Lumens)  1,130
 Wattage (W)  12
 Amperage Rating (A)  0.9
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  No
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  2.93
 Height (in.)  1.76
 Depth (in.)  1.68
 Weight (lbs.)  0.50



Standards & Compliance

 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



Specifications - 540005

 Product Type  S2 Sport LED Light Pod
 Description  Wide Cornering; Clear
 Beam Pattern  Wide Cornering
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  1
 Lighting Type  Forward Projecting
 Lighting Technology  LED
 Lighting Quantity  2
 Brightness (Lumens)  1,130
 Wattage (W)  12
 Amperage Rating (A)  0.90
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Powder Coated Cast Aluminum/td>
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  No
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  2.93
 Height (in.)  1.76
 Depth (in.)  1.668
 Weight (lbs.)  0.50



Standards & Compliance

 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



Specifications - 490001

 Product Type  Squadron Pro LED Light Pod
 Description  Spot; Clear
 Beam Pattern  Spot
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  1
 Lighting Type  Forward Projecting
 Lighting Technology  Cree LED (2 Types)
 Lighting Quantity  4
 Brightness (Lumens)  4,600
 Wattage (W)  40
 Amperage Rating (A)  2.90
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Hard Anodized and Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  No
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  3.07
 Height (in.)  3.07
 Depth (in.)  2.77
 Weight (lbs.)  0.75



Standards & Compliance

 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

2021-2022 Ford Bronco

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.3 lbs.
  • W10.7000” x H10.1000” x L12.0000”
  • Free Ground Shipping | Exclusions Apply*
