448056 | Baja Designs Squadron Pro/S1 Pocket Kit Fog Lights For Ford F-150 Raptor | 2021-2022

Squadron Pro/S1 Pocket Kit Fog Lights | 2021-2022 | Ford F-150 Raptor

448056
Pricing: $1,997.36
Qty:
Free Ground Shipping | Exclusions Apply*

Description

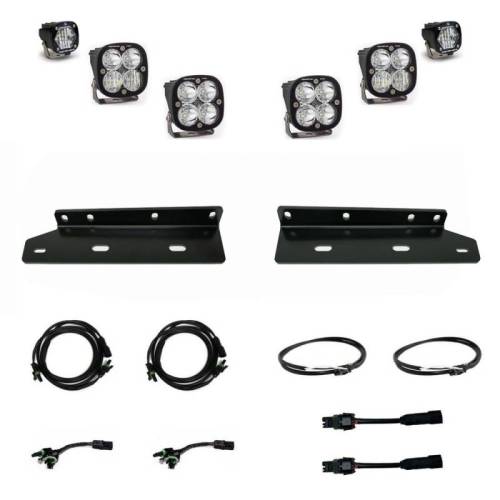

Separate your truck from the pack with the Baja Designs Ford Raptor “Pro” Fog Light Kit. This kit utilizes four Squadron Pros (4,600 lumens each), and two S1s (2,375 lumens each). This mounting kit includes two Ford-specific mounting brackets and a wiring harness, allowing you to use your factory Connector.

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications - 380005

 Product Type  S1 LED Light Pod
 Description  Wide Cornering; Clear
 Beam Pattern  Wide Cornering
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  1
 Lighting Type  Forward Projecting
 Lighting Technology  LED
 Lighting Quantity  1
 Brightness (Lumens)  2,375
 Wattage (W)  20
 Amperage Rating (A)  1.45
 Voltage  9-28
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Hard Anodized and Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  No
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  2.10
 Height (in.)  2.10
 Depth (in.)  2.10
 Weight (lbs.)  0.40



Standards & Compliance

 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



Specifications - 490003

 Product Type  Squadron Pro LED Light Pod
 Description  Driving/Combo; Clear
 Beam Pattern  Driving/Combo
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  1
 Lighting Type  Forward Projecting
 Lighting Technology  Cree LED
 Lighting Quantity  4
 Brightness (Lumens)  4,600
 Wattage (W)  40
 Amperage Rating (A)  2.9
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Hard Anodized and Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  No
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  3.07
 Height (in.)  3.07
 Depth (in.)  2.77
 Weight (lbs.)  0.75



Standards & Compliance

 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



Specifications - 490001

 Product Type  Squadron Pro LED Light Pod
 Description  Spot; Clear
 Beam Pattern  Spot
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  1
 Lighting Type  Forward Projecting
 Lighting Technology  Cree LED (2 Types)
 Lighting Quantity  4
 Brightness (Lumens)  4,600
 Wattage (W)  40
 Amperage Rating (A)  2.9
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Hard Anodized and Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  No
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  3.07
 Height (in.)  3.07
 Depth (in.)  2.77
 Weight (lbs.)  0.75



Standards & Compliance

 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

2021-2022 Ford F-150 Raptor

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 7.0 lbs.
  • W10.0000” x H10.0000” x L20.0000”
  • Free Ground Shipping | Exclusions Apply*
