630822 | Baja Designs Squadron SAE Pocket Kit Amber Fog Lights For Ford F-250/F-350 Super Duty | 1999-2010
Squadron SAE Pocket Kit Amber Fog Lights | 1999-2010 | Ford F-250/F-350 Super Duty
Description

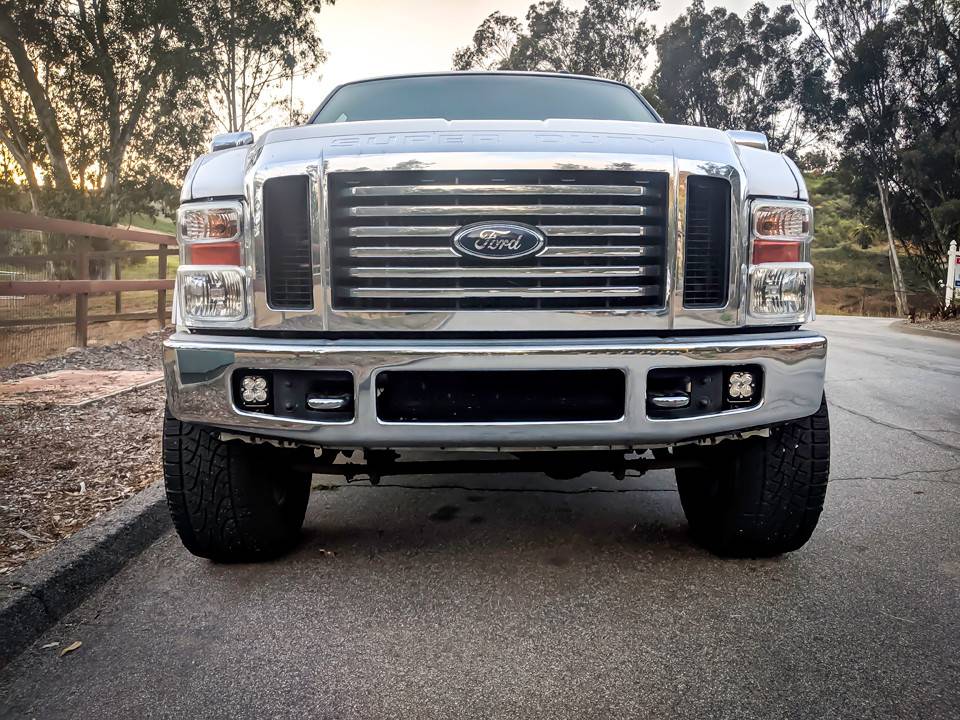

The Ford Squadron SAE Fog Pocket Light Kit allows you to mount two Squadron Pro auxiliary lights in the factory location. This kit features a pair of Squadron SAE, which have a combined output of 4,960 lumens. Squadron SAE from Baja Designs offers the same superior lighting and longevity as our LED off-road lights, optimized and approved for street use.
They’ve been ruthlessly tested at the factory and tested on the trails across countless rough trails and fast races. Rest assured they are serious upgrade from most LED, HID, and Halogen factory fog lights.

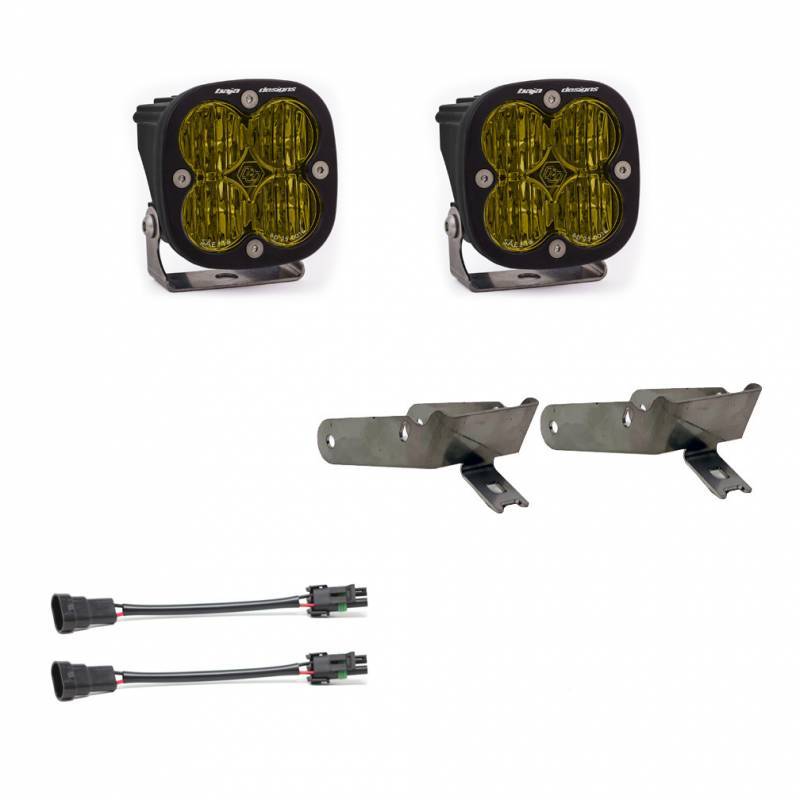

This plug-and-play kit includes two Squadron Pro Wide Cornering lights, two mounting brackets for the Ford Super Duty (99-10), and a wiring adapter, allowing you to use your factory Connector and mounting hardware. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications - 257805
Product Type | Squadron SAE LED Light Pod Pair w/ Wiring Harness |
Description | Wide Cornering; Amber; Pair |
Beam Pattern | Wide Cornering |
Lens Color | Amber |
Lighting Modes | Beam |
Light Quantity | 2 |
Lighting Type | Forward Projecting |
Lighting Technology | Cree LED |
Lighting Quantity | 4 |
Brightness (Lumens) | 2,480 |
Wattage (W) | 22 |
Amperage Rating (A) | 1.60 |
Average Rated Life (hr.) | 49,930 |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Material | Hardcoated Polycarbonate |
Bezel Material | Billet Machined Aluminum |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Wiring Harness Included | Yes |
Overvoltage Protection | Built-In |
Dimensions
Length (in.) | 3.07 |
Height (in.) | 3.07 |
Depth (in.) | 2.77 |
Weight (lbs.) | 0.75 |
Standards & Compliance
Street Legal | Yes |
DOT Approved | Yes |
Standards/Compliance (SAE) | SAE Standard J583 |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
DISCLAIMER AND WARNING
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Application List
1999-2010 Ford F-350 Super Duty
