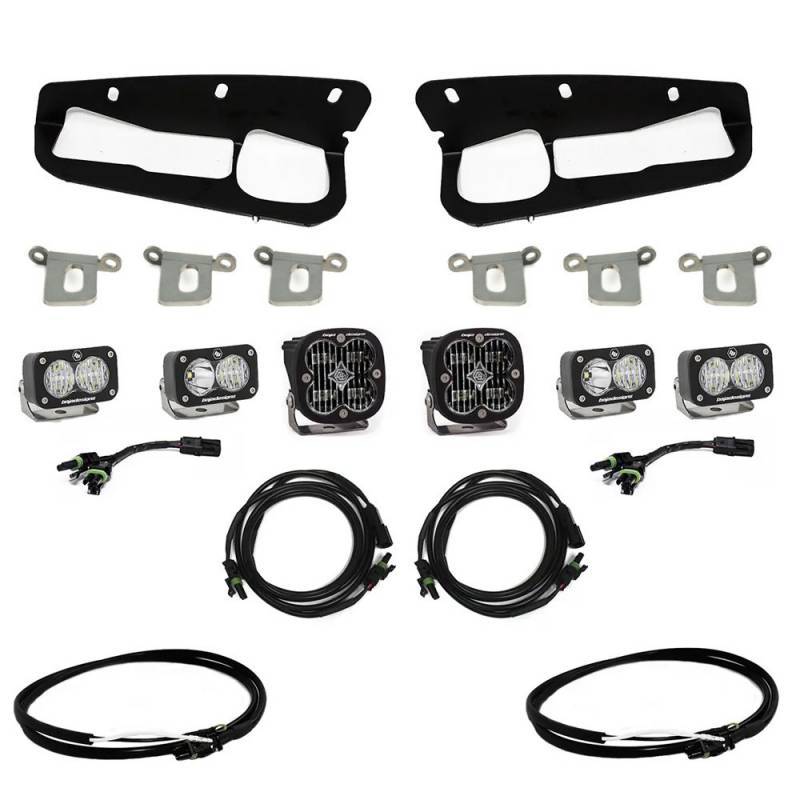

447761UP | Baja Designs Squadron SAE/S2 Sport Pocket Kit Fog Lights With Upfitter Connector For Ford Bronco | 2021-2022

Squadron SAE/S2 Sport Pocket Kit Fog Lights With Upfitter Connector | 2021-2022 | Ford Bronco

447761UP
Pricing: $1,597.04
Qty:
Free Ground Shipping | Exclusions Apply*

Description

At Baja Designs know that you use your Bronco for what is was designed for. That’s why we offer this Squadron Sport/S2 Sport Fog Pocket Light Kit. Light up the trail and differentiate yourself from the pack with a set of S2 Sports in Driving/Combo, a set of S2 Sports in Wide Cornering, and a set of Squadron Amber SAE in wide cornering.

The compact and powerful S2 Sports pump out 1,130 lumens each via two super-bright LEDs featuring quality that is second to none. The Squadron SAE is just as rugged as our off-road lights, putting out 2,480 lumens via four powerful LEDs for a street-legal punch.

The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3). The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).

The included brackets require no cutting or drilling, and the wiring that is included allow for the lights to be operated from the upfitter switches in the cab. This is a comprehensive kit and does not require any additional parts for installation.

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications - 540003

 Product Type  S2 Sport LED Light Pod
 Description  Driving/Combo; Clear
 Beam Pattern  Driving/Combo
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  1
 Lighting Type  Forward Projecting
 Lighting Technology  LED
 Lighting Quantity  2
 Brightness (Lumens)  1,130
 Wattage (W)  12
 Amperage Rating (A)  0.90
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  No
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  2.93
 Height (in.)  1.76
 Depth (in.)  1.68
 Weight (lbs.)  0.5



Standards & Compliance

 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



Specifications - 540005

 Product Type  S2 Sport LED Light Pod
 Description  Wide Cornering; Clear
 Beam Pattern  Wide Cornering
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  1
 Lighting Type  Forward Projecting
 Lighting Technology  LED
 Lighting Quantity  2
 Brightness (Lumens)  1,130
 Wattage (W)  12
 Amperage Rating (A)  0.90
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  No
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  2.93
 Height (in.)  1.76
 Depth (in.)  1.68
 Weight (lbs.)  0.5



Standards & Compliance

 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)



Specifications - 257805

 Product Type  Squadron SAE LED Light Pod Pair w/ Wiring Harness
 Description  Wide Cornering; Clear; Pair
 Beam Pattern  Wide Cornering
 Lens Color  Clear
 Lighting Modes  Beam
 Light Quantity  2
 Lighting Type  Forward Projecting
 Lighting Technology  Cree LED
 Lighting Quantity  4
 Brightness (Lumens)  2,480
 Wattage (W)  22
 Amperage Rating (A)  1.60
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Hard Anodized and Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  Yes
 Overvoltage Protection  Built-In



Dimensions

 Length (in.)  3.07
 Height (in.)  3.07
 Depth (in.)  2.77
 Weight (lbs.)  0.75



Standards & Compliance

 Street Legal  Yes
 DOT Approved  Yes
 Standards/Compliance (SAE)  SAE Standard J583
 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)
