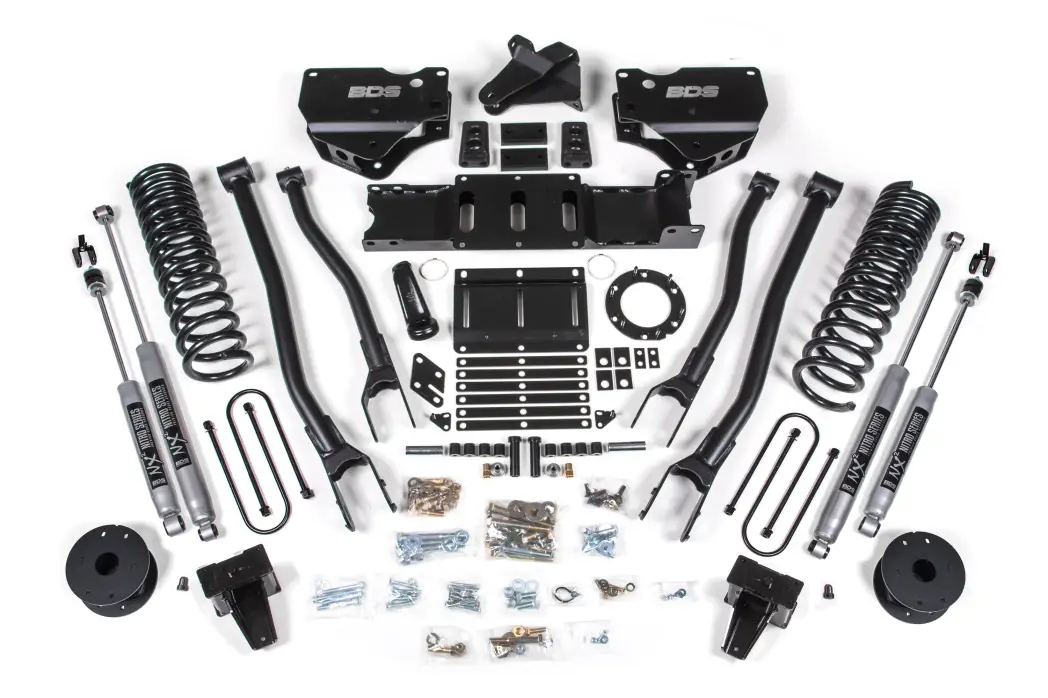

BDS1734H | BDS Suspension 5.5 Inch Lift Kit With 4 Link For Ram 3500 4WD With Rear Air Ride (2019-2024) | Gas | NX2 Nitro Series

5.5 Inch Lift Kit With 4 Link For Ram 3500 4WD With Rear Air Ride (2019-2024) | Gas | NX2 Nitro Series

BDS1734H
Pricing: $3,574.20
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Raise your RAM 3500 gas powered truck equipped with factory rear air bags to new heights with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features & Benefits

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
  • 37 x 13.5 with 18 x 9 and 5.625 in. Backspace
  • 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. For OE Rear Air Assist only
  2. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Cut Off Wheel or Equiv., Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 5.5"
  • Rear Lift Height : 5"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019Ram3500ALL4WDGASALLALL
2020Ram3500ALL4WDGASALLALL
2021Ram3500ALL4WDGASALLALL
2022Ram3500ALL4WDGASALLALL
2023Ram3500ALL4WDGASALLALL
2024Ram3500Big Horn4WDGASALLALL
2024Ram3500Big Horn4WDGASALLALL
2024Ram3500Big Horn4WDGASALLALL
2024Ram3500Laramie4WDGASALLALL
2024Ram3500Laramie4WDGASALLALL
2024Ram3500Limited4WDGASALLALL
2024Ram3500Limited4WDGASALLALL
2024Ram3500Limited Longhorn4WDGASALLALL
2024Ram3500Limited Longhorn4WDGASALLALL
2024Ram3500Tradesman4WDGASALLALL
2024Ram3500Tradesman4WDGASALLALL

Component List

1 BDS012626 2019-2024 Ram 3500 Auto Level Air Suspension 6" Rear
1 BDS012433 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2
1 BDS012434 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2
2 BDS032403 2019-2024 Ram 2500/3500 Coil 4" Diesel - 5.5" Gas
1 BDS122626 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas
2 BDS85714 Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2
2 BDS85769 Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 20 x 9 and 4.5 in. Backspace
37 x 13.5 with 18 x 9 and 5.625 in. Backspace
37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L36.0000”
