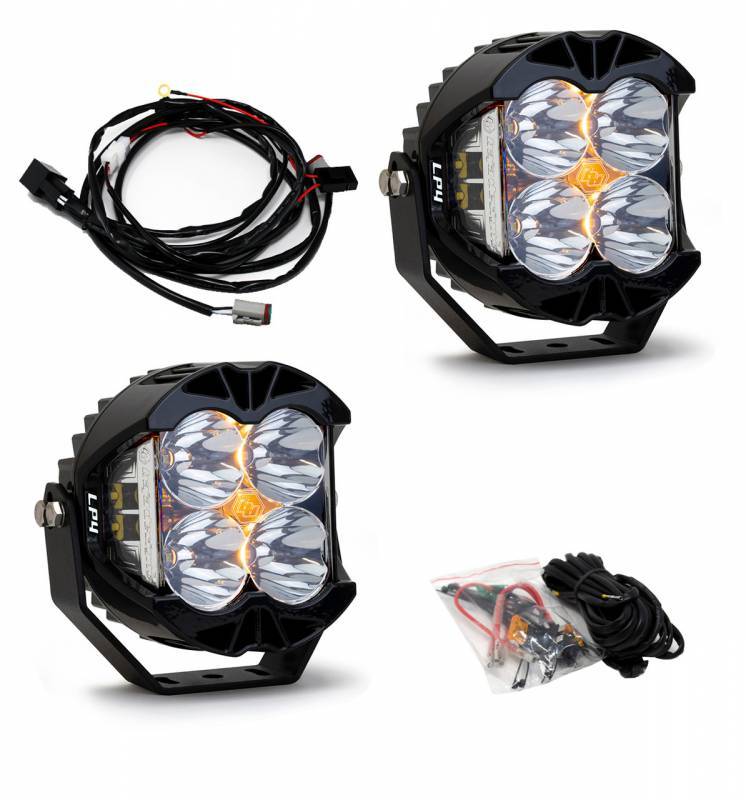

297801 | Baja Designs Universal LP4 Pro LED Auxiliary Light Pod | Spot, Pair

Universal LP4 Pro LED Auxiliary Light Pod | Universal - Check Specification Before Ordering

297801
Pricing: $1,217.57
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200-degree spread of usable LED light. This light pumps out 7,050 forward-projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an amber day-time running light, the LP4 easily fulfills all your lighting needs.

NOTE:

When installing LP4 lights on the a-pillar/ditch light configuration, we recommend the IPT covers to block hood/cabin glare.

Two variety of patterns are available in this series to suit your needs:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications - 297801

 Product Type  LP4 Pro LED Light Pod Pair w/ Wiring Harness
 Description  Spot; Clear; Pair
 Beam Pattern  Spot
 Lens Color  Clear
 Lighting Modes  Beam/Day-Time Running Backlighting
 Light Quantity  2
 Lighting Type  Forward Projecting
 Lighting Technology  LED
 Lighting Quantity  4
 Brightness (Lumens)  7,050
 Wattage (W)  60
 Amperage Rating (A)  6.50
 Secondary Lighting Type  Integrated Peripheral Technology (IPT)
 Secondary Lighting Technology  LED
 Secondary Light Quantity  4 LEDs
 Secondary Brightness (Lumens)  1,700
 Secondary Wattage (W)  15
 Secondary Amperage Rating (A)  1.0
 Backlight Wattage (W)  4.83
 Backlight Amperage Rating (A)  0.35
 Terminal Type  Mating Connector
 Terminal Connector  DT06-4S Deutsch
 Average Rated Life (hr.)  49,930
 Housing Color  Black
 Housing Material  Hard Anodized and Powder Coated Cast Aluminum
 Lens Material  Hardcoated Polycarbonate
 Bezel Material  Billet Machined Aluminum
 Mounting Hardware Included  Yes
 Mounting Hardware Material  Stainless Steel
 Wiring Harness Included  Yes
 Overvoltage Protection  Built-In

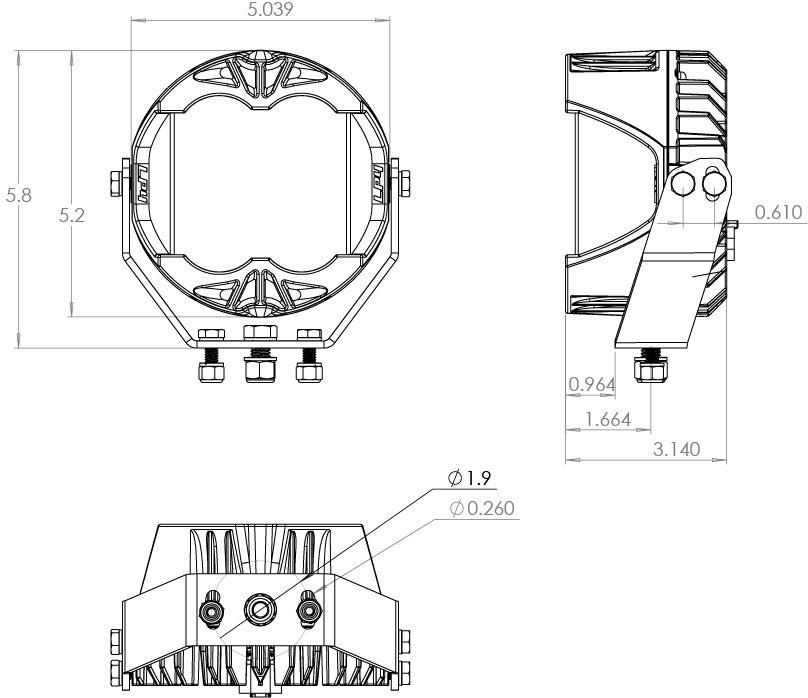

Dimensions

 Length (in.)  5.1
 Height (in.)  5.1
 Depth (in.)  3.2
 Weight (lbs.)  2.8



Standards & Compliance

 Standards/Compliance (Durability)  Exceeds MIL-STD810G (Mil-Spec Testing)
 Standards/Compliance (Water Resistance)  IP69K (Waterproof up to 9ft & Pressure Washable)
 Standards/Compliance (Impact Resistance)  IK10 Compliant (Mechanical Impact Testing)
