BDS1305FSR | BDS Suspension 6 Inch Lift Kit Fox 2.0 IFP Strut For Ford F-150 4WD | 2015-2020 | Rear 4 Inch Block Kit
6 Inch Lift Kit Fox 2.0 IFP Strut For Ford F-150 4WD | 2015-2020 | Rear 4 Inch Block Kit
Description

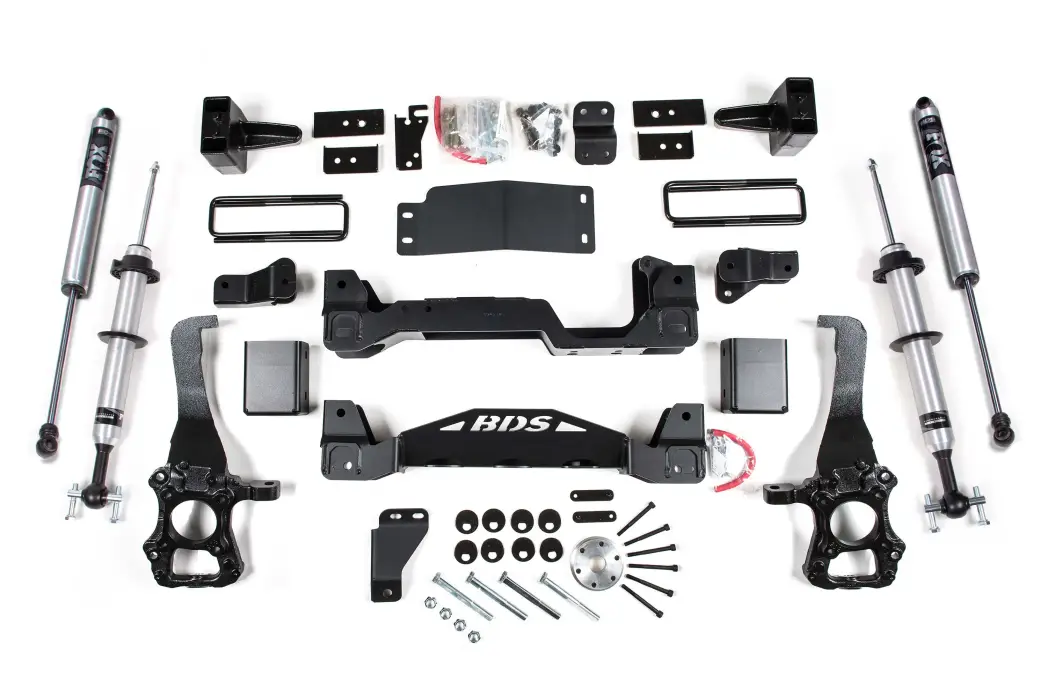

Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
Features & Benefits
- FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
Recommended Tires & Wheels
- 35 x 12.5 with 20 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
FOX 2.0 Struts
These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0"" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8"" hard chrome plated heat-treated alloy shaft.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Rear Lift Option
5 Inch Block Kit
- Level to tail high appearance
4 Inch Block Kit
- Tail low to level stance
Important Notes
- 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
- 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
- E-brake bracket required for factory powersteps (123018)
- Block kits replace factory 1-1/4" block.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
- Will not fit HD models (7 lug).
Installation
Est. Install Time :
8-10 hrsDifficulty Level :
DifficultSpecialty Tools Needed :
Cut-off Tool, Reciprocating Saw, Strut CompressorSpecification
- Front Lift Method : Cross-Member
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 6"
- Rear Lift Height : 5"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2015 | Ford | F-150 | ALL | 4WD | ALL | ALL | ALL |
2016 | Ford | F-150 | ALL | 4WD | ALL | ALL | ALL |
2017 | Ford | F-150 | King Ranch | 4WD | ALL | ALL | ALL |
2017 | Ford | F-150 | Lariat | 4WD | ALL | ALL | ALL |
2017 | Ford | F-150 | Limited | 4WD | ALL | ALL | ALL |
2017 | Ford | F-150 | Platinum | 4WD | ALL | ALL | ALL |
2017 | Ford | F-150 | SSV | 4WD | ALL | ALL | ALL |
2017 | Ford | F-150 | XL | 4WD | ALL | ALL | ALL |
2017 | Ford | F-150 | XLT | 4WD | ALL | ALL | ALL |
2018 | Ford | F-150 | King Ranch | 4WD | ALL | ALL | ALL |
2018 | Ford | F-150 | Lariat | 4WD | ALL | ALL | ALL |
2018 | Ford | F-150 | Limited | 4WD | ALL | ALL | ALL |
2018 | Ford | F-150 | Platinum | 4WD | ALL | ALL | ALL |
2018 | Ford | F-150 | Police Responder | 4WD | ALL | ALL | ALL |
2018 | Ford | F-150 | SSV | 4WD | ALL | ALL | ALL |
2018 | Ford | F-150 | XL | 4WD | ALL | ALL | ALL |
2018 | Ford | F-150 | XLT | 4WD | ALL | ALL | ALL |
2019 | Ford | F-150 | King Ranch | 4WD | ALL | ALL | ALL |
2019 | Ford | F-150 | Lariat | 4WD | ALL | ALL | ALL |
2019 | Ford | F-150 | Limited | 4WD | ALL | ALL | ALL |
2019 | Ford | F-150 | Platinum | 4WD | ALL | ALL | ALL |
2019 | Ford | F-150 | Police Responder | 4WD | ALL | ALL | ALL |
2019 | Ford | F-150 | SSV | 4WD | ALL | ALL | ALL |
2019 | Ford | F-150 | XL | 4WD | ALL | ALL | ALL |
2019 | Ford | F-150 | XLT | 4WD | ALL | ALL | ALL |
2020 | Ford | F-150 | King Ranch | 4WD | ALL | ALL | ALL |
2020 | Ford | F-150 | Lariat | 4WD | ALL | ALL | ALL |
2020 | Ford | F-150 | Limited | 4WD | ALL | ALL | ALL |
2020 | Ford | F-150 | Platinum | 4WD | ALL | ALL | ALL |
2020 | Ford | F-150 | Police Responder | 4WD | ALL | ALL | ALL |
2020 | Ford | F-150 | SSV | 4WD | ALL | ALL | ALL |
2020 | Ford | F-150 | XL | 4WD | ALL | ALL | ALL |
2020 | Ford | F-150 | XLT | 4WD | ALL | ALL | ALL |
Tires & Wheels
35 x 12.5 with 20 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace
Components
1 BDS023634 2015-2020 Ford F150 Knuckle Box Kit - DS
1 BDS023635 2015-2020 Ford F150 Knuckle Box Kit - PS
1 BDS023650 2015-2020 Ford F150 Front Box Kit (1of2)
1 BDS023651 2015-2020 Ford F150 Front Box Kit (2of2)
2 FOX98662001 Kit: BDS, 14-On Ford F-150, Front Coilover, Snap Ring, PS, 2.0, IFP, 6.1", 4 & 6" Lift
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Details
- BDS1305FSR
- BDS1305FSR
- 840416400755
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
