BDS1401H | BDS Suspension 2 Inch Lift Kit With Coil Spacer For Jeep Wrangler JK 2 Door (2007-2011) | NX2 Nitro Series Shock

2 Inch Lift Kit With Coil Spacer For Jeep Wrangler JK 2 Door (2007-2011) | NX2 Nitro Series Shock

BDS1401H
Pricing: $562.63
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Boost the height of your 2007-2011 Jeep Wrangler JK 2 Door by installing this 2-inch coil spacer lift kit from BDS. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33" tires at an affordable price.

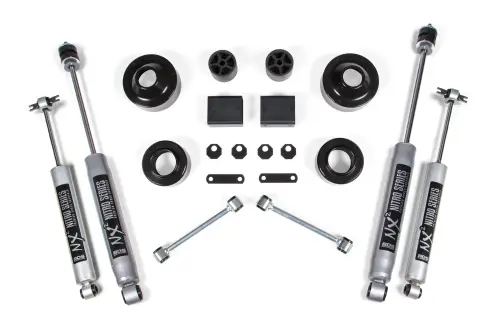

The lift kit includes four new urethane coil mounts, bump stop extensions, front octo-cam washers and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Features & Benefits

  • Urethane coil spacers maintain factory ride
  • Lower cam locks to correct caster for alignment
  • Bump stop spacers to prevent harsh bottom outs
  • Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
  • Allows clearance for 33" tires

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 16 x 8 and 4.5 in. Backspace

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. Removing the OE spring isolators will result in a 1" lift if desired.
  2. 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels
  3. This kit is FMVSS No.126 Compliant

Installation

Est. Install Time :

4 hrs

Difficulty Level :

ModeratelyEasy

Specialty Tools Needed :

Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands

 Specification

  • Front Lift Method : Coil Spacers
  • Rear Lift Method : Coil Spacers
  • Shocks Included : Yes
  • Front Lift Height : 2"
  • Rear Lift Height : 2"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2007JeepWrangler JKRubiconALLALLALLALL
2007JeepWrangler JKSaharaALLALLALLALL
2007JeepWrangler JKALLALLALLALLALL
2008JeepWrangler JKRubiconALLALLALLALL
2008JeepWrangler JKSaharaALLALLALLALL
2008JeepWrangler JKALLALLALLALLALL
2009JeepWrangler JKRubiconALLALLALLALL
2009JeepWrangler JKSaharaALLALLALLALL
2009JeepWrangler JKX-SALLALLALLALL
2009JeepWrangler JKALLALLALLALLALL
2010JeepWrangler JKIslanderALLALLALLALL
2010JeepWrangler JKRubiconALLALLALLALL
2010JeepWrangler JKSaharaALLALLALLALL
2010JeepWrangler JKSportALLALLALLALL
2010JeepWrangler JKALLALLALLALLALL
2011JeepWrangler JK70th AnniversaryALLALLALLALL
2011JeepWrangler JKRubiconALLALLALLALL
2011JeepWrangler JKSaharaALLALLALLALL
2011JeepWrangler JKSportALLALLALLALL
2011JeepWrangler JKALLALLALLALLALL

Component List

1 BDS024203 07 Jeep JK 2in Spacer Kit
1 BDS124320 2007-2018 Jeep Wrangler (JK) 2-4.5in Front Sway Bar Links Solid
2 BDS85700 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
2 BDS85951 Shock- 25.95 x 15.40 x 2 - BP18/EB1

Tires & Wheels

33 x 12.5 with 16 x 8 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 34.1 lbs.
  • W7.0000” x H7.0000” x L24.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
