BDS1519H | BDS Suspension 2 Inch Leveling Kit Coil Spring Spacer For Ford F-250 / F-350 Super Duty 4WD | 2017-2022 | NX2 Nitro Series Shocks
BDS1519H | BDS Suspension 2 Inch Leveling Kit Coil Spring Spacer For Ford F-250 / F-350 Super Duty 4WD | 2017-2022 | NX2 Nitro Series Shocks
Description
Level the stance of your 2017-2019 Ford F250 and F350 Super Duty truck by installing this 2-inch coil spacer leveling kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires at an affordable price.

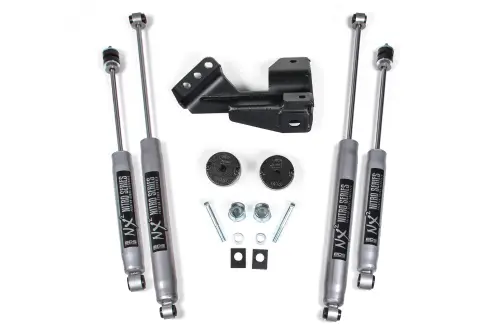

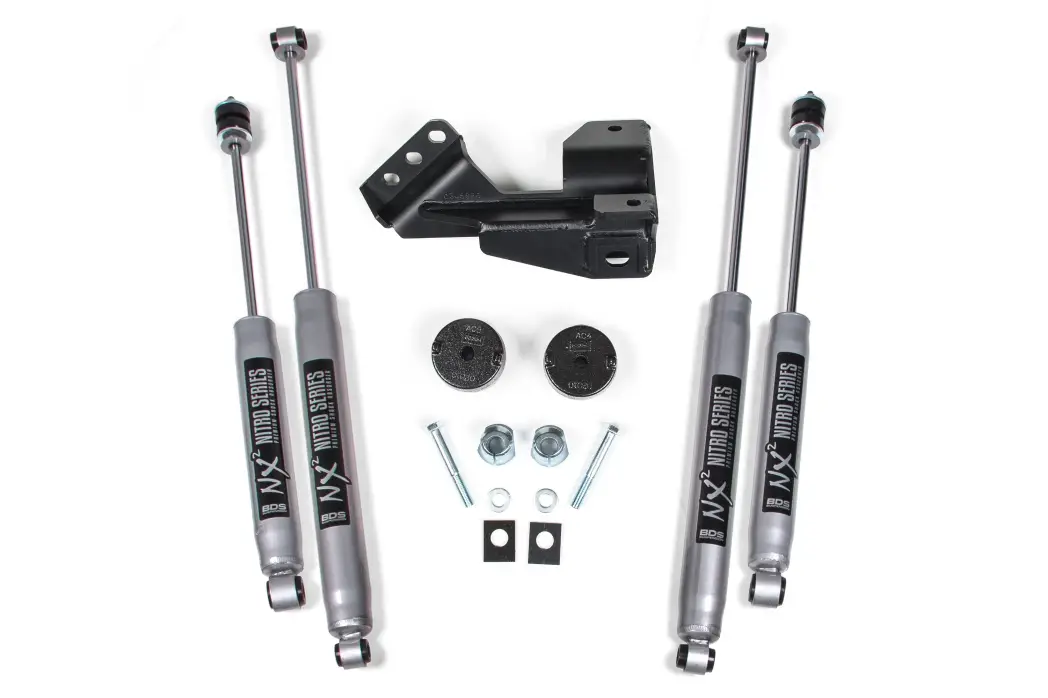

Up front the lift kit includes billet aluminum coil spacers, track bar bracket for steering correction, alignment cams, and custom-tuned nitrogen charged shocks.
Features & Benefits
- Easy, 100% Bolt-on installation
- Maintains factory like ride quality
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Installation
Est. Install Time :
4 hrsDifficulty Level :
ModeratelyEasySpecialty Tools Needed :
30mm Socket
Specification
- Front Lift Method : Coil Spacer
- Rear Lift Method : None
- Shocks Included : Yes
- Front Lift Height : 2"
- Rear Lift Height : 0"
Product Series
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2017 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2017 | Ford | F-350 Super Duty | King Ranch | 4WD | ALL | ALL | ALL |
2017 | Ford | F-350 Super Duty | Lariat | 4WD | ALL | ALL | ALL |
2017 | Ford | F-350 Super Duty | Platinum | 4WD | ALL | ALL | ALL |
2017 | Ford | F-350 Super Duty | XL | 4WD | ALL | ALL | ALL |
2017 | Ford | F-350 Super Duty | XLT | 4WD | ALL | ALL | ALL |
2018 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2018 | Ford | F-350 Super Duty | King Ranch | 4WD | ALL | ALL | ALL |
2018 | Ford | F-350 Super Duty | Lariat | 4WD | ALL | ALL | ALL |
2018 | Ford | F-350 Super Duty | Limited | 4WD | ALL | ALL | ALL |
2018 | Ford | F-350 Super Duty | Platinum | 4WD | ALL | ALL | ALL |
2018 | Ford | F-350 Super Duty | XL | 4WD | ALL | ALL | ALL |
2018 | Ford | F-350 Super Duty | XLT | 4WD | ALL | ALL | ALL |
2019 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2019 | Ford | F-350 Super Duty | King Ranch | 4WD | ALL | ALL | ALL |
2019 | Ford | F-350 Super Duty | Lariat | 4WD | ALL | ALL | ALL |
2019 | Ford | F-350 Super Duty | Limited | 4WD | ALL | ALL | ALL |
2019 | Ford | F-350 Super Duty | Platinum | 4WD | ALL | ALL | ALL |
2019 | Ford | F-350 Super Duty | XL | 4WD | ALL | ALL | ALL |
2019 | Ford | F-350 Super Duty | XLT | 4WD | ALL | ALL | ALL |
2020 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2020 | Ford | F-350 Super Duty | King Ranch | 4WD | ALL | ALL | ALL |
2020 | Ford | F-350 Super Duty | Lariat | 4WD | ALL | ALL | ALL |
2020 | Ford | F-350 Super Duty | Limited | 4WD | ALL | ALL | ALL |
2020 | Ford | F-350 Super Duty | Platinum | 4WD | ALL | ALL | ALL |
2020 | Ford | F-350 Super Duty | XL | 4WD | ALL | ALL | ALL |
2020 | Ford | F-350 Super Duty | XLT | 4WD | ALL | ALL | ALL |
2021 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2021 | Ford | F-350 Super Duty | King Ranch | 4WD | ALL | ALL | ALL |
2021 | Ford | F-350 Super Duty | Lariat | 4WD | ALL | ALL | ALL |
2021 | Ford | F-350 Super Duty | Limited | 4WD | ALL | ALL | ALL |
2021 | Ford | F-350 Super Duty | Platinum | 4WD | ALL | ALL | ALL |
2021 | Ford | F-350 Super Duty | XL | 4WD | ALL | ALL | ALL |
2021 | Ford | F-350 Super Duty | XLT | 4WD | ALL | ALL | ALL |
2022 | Ford | F-250 Super Duty | ALL | 4WD | ALL | ALL | ALL |
2022 | Ford | F-350 Super Duty | King Ranch | 4WD | ALL | ALL | ALL |
2022 | Ford | F-350 Super Duty | Lariat | 4WD | ALL | ALL | ALL |
2022 | Ford | F-350 Super Duty | Limited | 4WD | ALL | ALL | ALL |
2022 | Ford | F-350 Super Duty | Platinum | 4WD | ALL | ALL | ALL |
2022 | Ford | F-350 Super Duty | XL | 4WD | ALL | ALL | ALL |
2022 | Ford | F-350 Super Duty | XLT | 4WD | ALL | ALL | ALL |
Components
2 BDS85710 Shock- 22.50 x 13.50 x 2-3/8 - S50/EB2
2 BDS85717 Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
Tire & Wheels
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Details
- BDS1519H
- BDS1519H
- 840416402469
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
