BDS1612H | BDS Suspension 4 Inch Lift With 4 Link For Dodge Ram 3500 4WD (2013-2018) | Gas | Rear Lift 3 Inch Block Kit, NX2 Nitro Series Shocks

4 Inch Lift With 4 Link For Dodge Ram 3500 4WD (2013-2018) | Gas | Rear Lift 3 Inch Block Kit, NX2 Nitro Series Shocks

BDS1612H
Pricing: $1,690.02
Qty:
Free Ground Shipping | Exclusions Apply*

Description

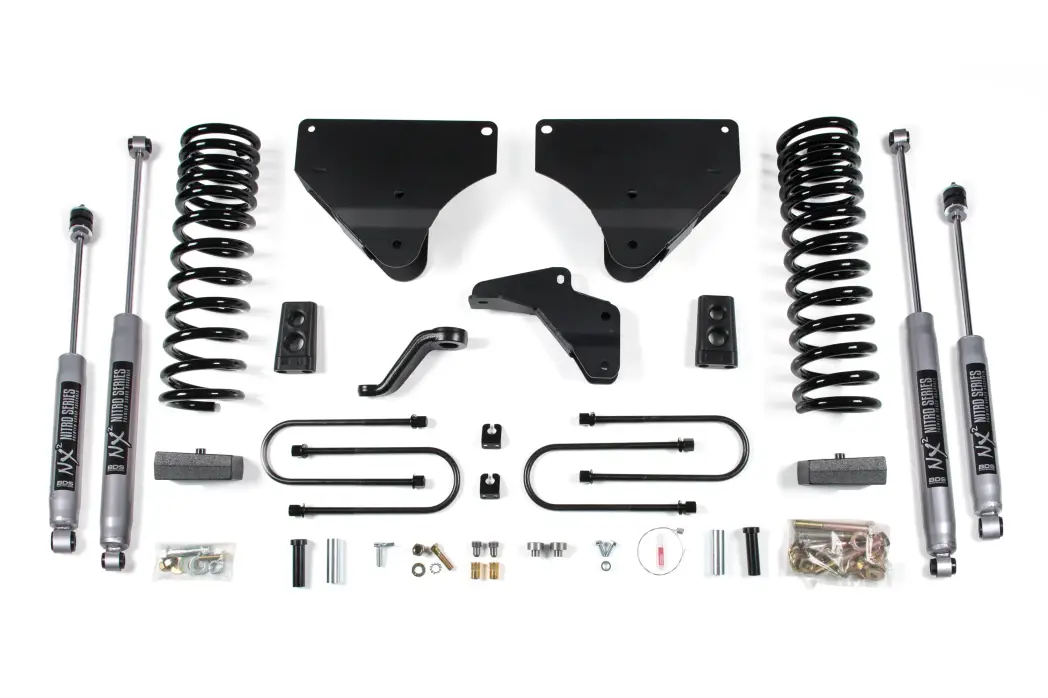

Improve the ride and style of your RAM 3500 gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features & Benefits

  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 37 x 13.5 with 17 x 9 and 5.625 in. Backspace

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Lift Option

3 Inch Block Kit

  • Level to tail high appearance

2 Inch Block Kit

  • Tail low to level stance

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. The carrier-bearing drop kit is necessary for models equipped with two-piece rear drive shaft.
  2. 6.4L Gas models will require exhaust modification to clear the front driveshaft and potentially the passenger's Radius arm bracket.
  3. 5.7L Gas models may require exhaust modification - but not in all cases.
  4. The vehicle can be driven without the front driveshaft to an exhaust shop for modification and reinstalled after modification.

Installation

Est. Install Time :

6-8 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

Basic Hand Tools, Step Drill Bit, Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller, Welding Equipment

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 3"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2013Ram3500ALL4WDGASALLALL
2014Ram3500ALL4WDGASALLALL
2015Ram3500ALL4WDGASALLALL
2016Ram3500ALL4WDGASALLALL
2017Ram3500ALL4WDGASALLALL
2018Ram3500ALL4WDGASALLALL

Component List

1 BDS012317 2013 Ram 3500 3" Rear Box w/4" axle
1 BDS012401 2013-18 Ram 2500/300 4" Front Box Kit
1 BDS032302 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3" Diesel - 4" Gas
2 BDS85700 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
2 BDS85759 Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1

Tires & Wheels

(Trimming may be required)
35 x 12.5 with 17 x 9 and 4.5 in. Backspace
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
37 x 13.5 with 17 x 9 and 5.625 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
