BDS1665FDSC | BDS Suspension 2 Inch Lift Kit With Fox 2.5 Coil-over For Dodge Ram 1500 4WD (2013-2021) | Rear Fox 2.0 Performance Series Shocks
2 Inch Lift Kit With Fox 2.5 Coil-over For Dodge Ram 1500 4WD (2013-2021) | Rear Fox 2.0 Performance Series Shocks
Description

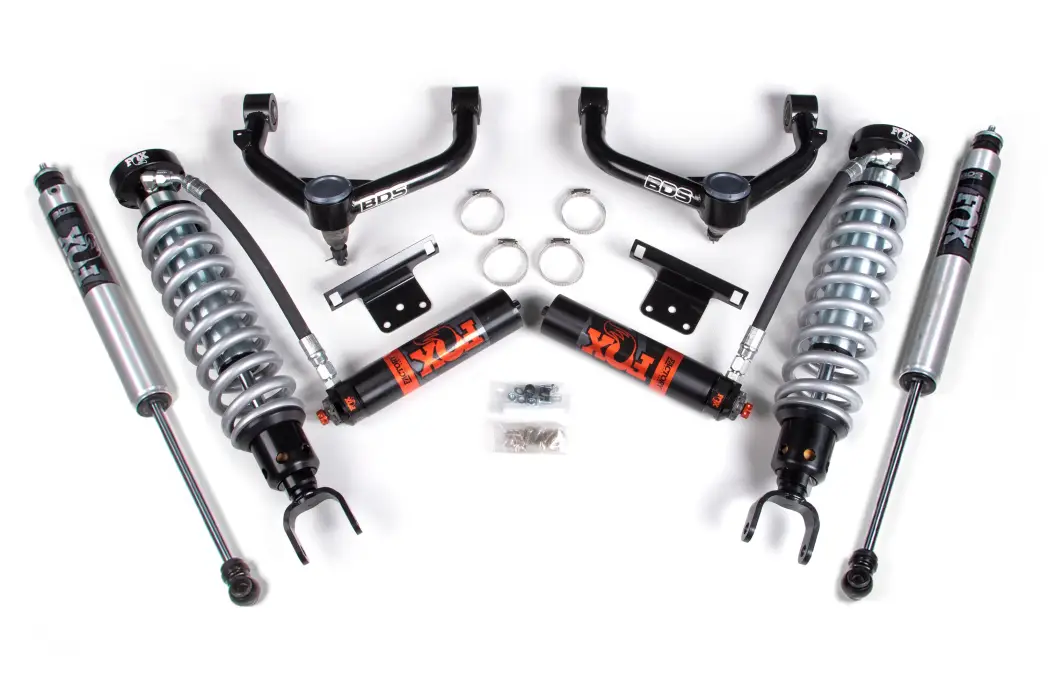

Take your 2013-2018 RAM 1500 4WD truck to the next level and improve the ride with this 2-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.
Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
Features & Benefits
- FOX 2.5 Factory series coil-overs offer improved damper performance over stock
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series IFP rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100% Bolt on installation
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 18 x 9 and 5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5 in. Backspace
FOX 2.5 Coil-Overs
FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
DSC Adjustment
FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Rear Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Reservoir w/ DSC
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- Large 2.5-inch steel body
- Massive 7/8-inch hard chrome plated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Important Notes
- The stock wheel/tire can be reinstalled. Stock wheel with wider 12.50 tires cannot due to clearance issue to UCA at full steering lock.
- Vehicles equipped with Offroad or Rebel Package will not achieve the full 2" of lift, net ride height change will be around 1" above stock.
- Will not fit adjustable air suspension equipped models.
Installation
Est. Install Time :
3-4 hrsDifficulty Level :
EasySpecification
- Front Lift Method : Coil-Over
- Rear Lift Method : Stock
- Shocks Included : Yes
- Front Lift Height : 2"
- Rear Lift Height : 0"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2013 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2013 | Ram | 1500 | Express | 4WD | ALL | ALL | ALL |
2013 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2013 | Ram | 1500 | Laramie Longhorn | 4WD | ALL | ALL | ALL |
2013 | Ram | 1500 | Outdoorsman | 4WD | ALL | ALL | ALL |
2013 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2013 | Ram | 1500 | ST | 4WD | ALL | ALL | ALL |
2013 | Ram | 1500 | SXT | 4WD | ALL | ALL | ALL |
2013 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2013 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Express | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Laramie Limited | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Laramie Longhorn | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Outdoorsman | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | ST | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | SXT | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Special Service | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2014 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Express | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Laramie Limited | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Laramie Longhorn | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Outdoorsman | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | ST | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | SXT | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Special Service | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2015 | Ram | 1500 Rebel | ALL | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Express | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Laramie Limited | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Laramie Longhorn | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Outdoorsman | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | ST | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | SXT | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Special Service | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2016 | Ram | 1500 Rebel | ALL | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Express | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Laramie Limited | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Laramie Longhorn | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Outdoorsman | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | ST | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | SXT | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Special Service | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2017 | Ram | 1500 Rebel | ALL | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Big Horn | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Express | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Laramie | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Laramie Limited | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Laramie Longhorn | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Limited | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Lone Star | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Outdoorsman | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | SLT | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | ST | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | SXT | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Special Service | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Sport | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 | Tradesman | 4WD | ALL | ALL | ALL |
2018 | Ram | 1500 Rebel | ALL | 4WD | ALL | ALL | ALL |
2019 | Ram | 1500 Classic | ALL | 4WD | ALL | ALL | ALL |
2020 | Ram | 1500 Classic | ALL | 4WD | ALL | ALL | ALL |
2021 | Ram | 1500 Classic | ALL | 4WD | ALL | ALL | ALL |
Component List
1 FOX88306080 NF: KIT: 06-ON Dodge 1500 4wd Front Coilover, 2.5 Series, R/R, 5.7", 0-2" Lift, DSC
2 FOX98224712 Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
Tire & Wheels
33 x 12.5 with 18 x 9 and 5 in. Backspace
33 x 12.5 with 20 x 9 and 5 in. Backspace
Details
- BDS1665FDSC
- BDS1665FDSC
- 840416406337
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
