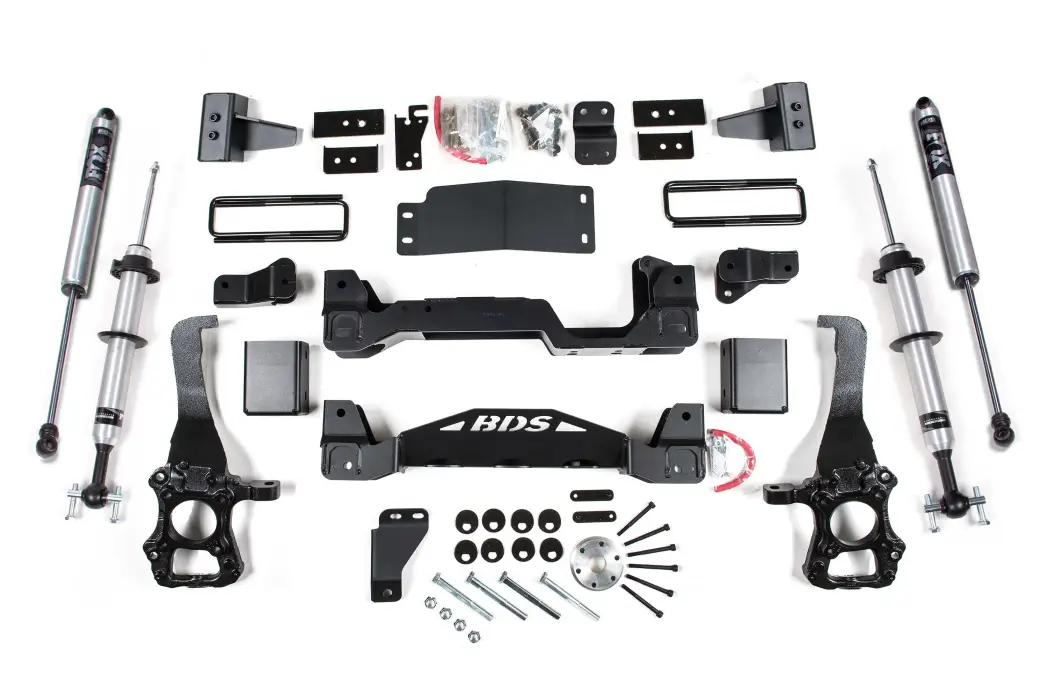

BDS1533FSR | BDS Suspension 4" Lift Kit Fox 2.0 IFP Strut For Ford F-150 4WD | 2015-2020

• FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance

• 35 x 12.5 with 18 x 9 and 5.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

FOX 2.0 Struts

These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0"" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8"" hard chrome plated heat-treated alloy shaft.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Important Notes

1. 18" wheels with 5-5.5" total backspacing should be tested prior to mounting tire to ensure proper clearance to BDS steering knuckle.
2. 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
3. E-brake bracket required for factory powersteps (123018)
4. Block kits replace factory 1-1/4" block.
5. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
6. Will not fit HD models (7 lug).
