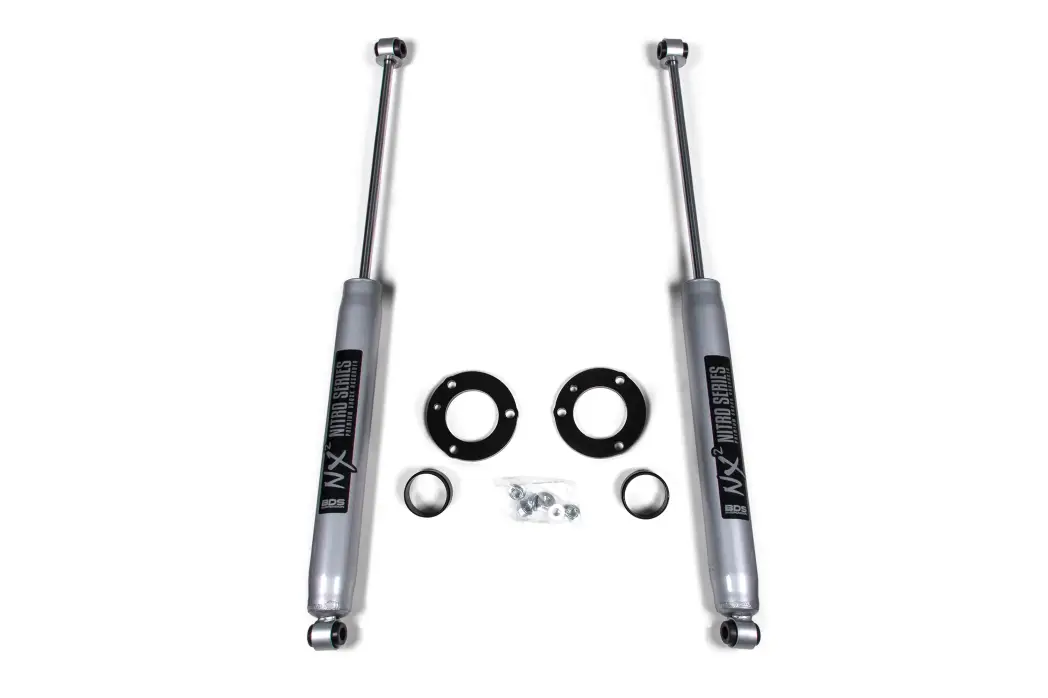

BDS1544H | BDS Suspension 2 Inch Leveling Kit For Ford Ranger 4WD | 2019-2023 | NX2 Nitro Series

• Easy, 100% Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

• 285 / 70 with 17 x 8 and in. Backspace
• 285 / 65 with 18 x 9 and in. Backspace

Rear Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Important Notes

1. Aftermarket wheels must have a minimum of 93.1mm center hub bore.

Installation

Specialty Tools Needed :

35mm Axle Nut Socket, Strut Compressor

Specification

• Front Lift Method : Strut Spacer
• Rear Lift Method : Stock
• Shocks Included : Yes
• Front Lift Height : 2"
• Rear Lift Height : 0"
