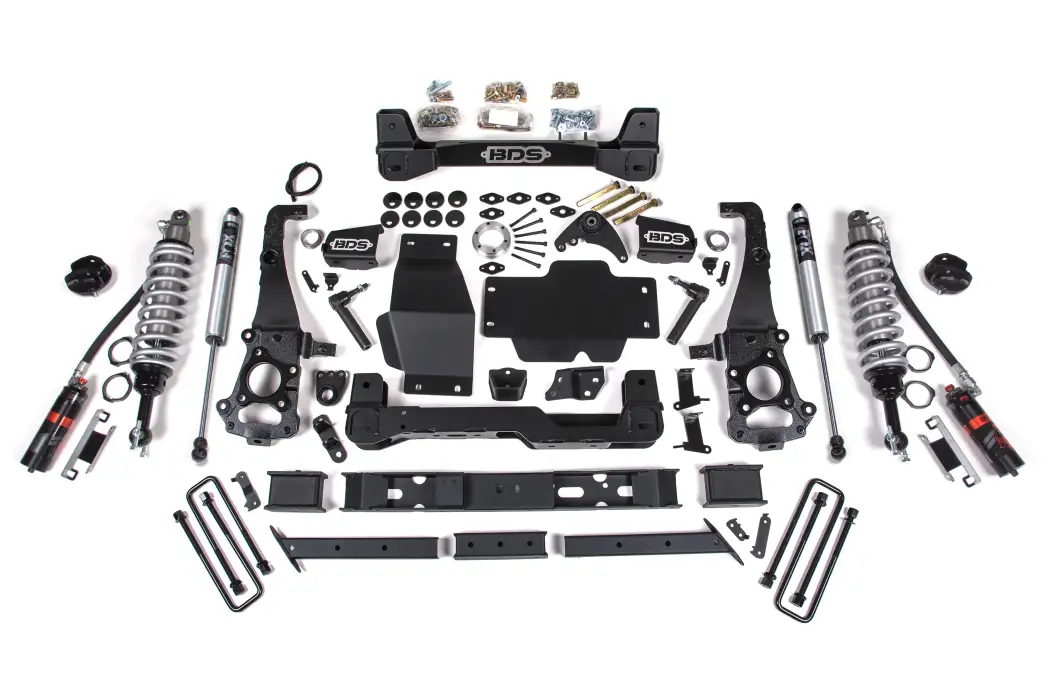

BDS1547FDSC | BDS Suspension 6 Inch Lift Kit Fox 2.5 Coil-Over For Ford Ranger 4WD | 2019-2023 | OE Knuckle Cast Aluminum

• FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance

• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Important Notes

*IMPORTANT* Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle-equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

1. Requires frame bracket and differential modification. If using a plasma cutter for frame bracket mod, disconnecting the battery is highly recommended.
2. Stock 17-18" wheels cannot be reinstalled.
3. When balancing tires for 17-18" wheels, wheel weights are best positioned towards the center of the wheel to avoid interference with the tie rod end.
4. Rack and Pinion steering is sensitive to tire choice. Aggressive tires, smaller backspacing or tires that require several wheel weights may induce steering wheel wobble.
5. Will not work on Tremor model.

Installation

Specialty Tools Needed :

35mm Axle Nut Socket, Air Hammer (Recommended), Basic Hand Tools, Cut-off Tool, Jack / Jack Stands
