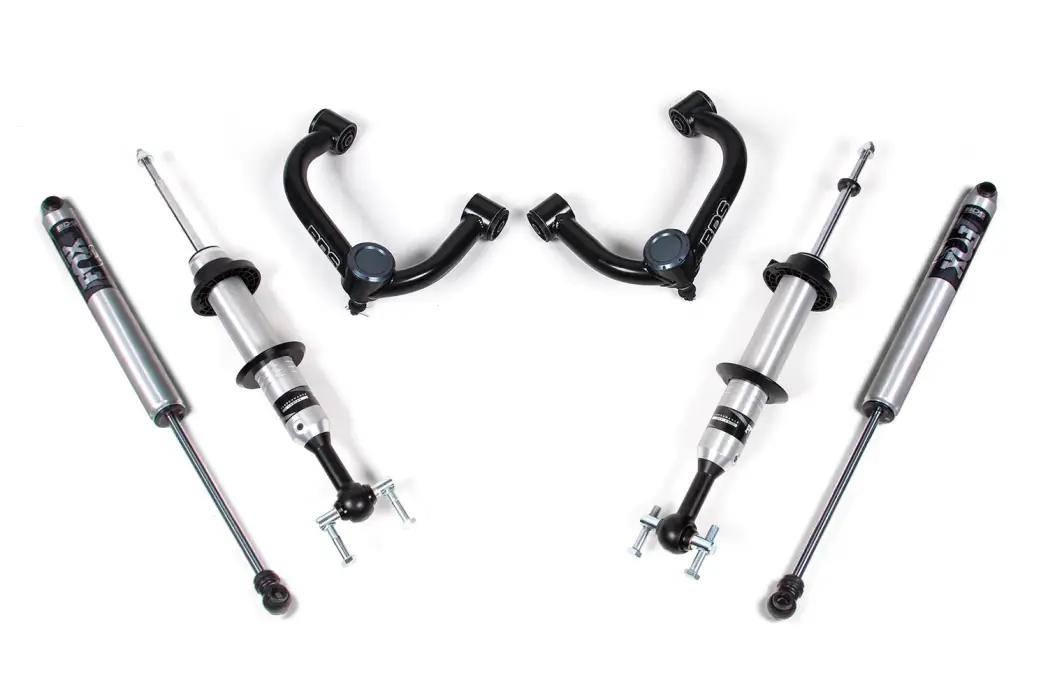

BDS1553FSR | BDS Suspension 2 Inch Lift Kit Fox 2.0 Snap Ring Strut For Ford F-150 4WD | 2014-2020

2 Inch Lift Kit Fox 2.0 Snap Ring Strut For Ford F-150 4WD | 2014-2020

BDS1553FSR
Pricing: $2,778.45
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Built to outperform, upgrade your 2014-2020 Ford F150 truck with this 2-inch leveling kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

Features & Benefits

  • FOX Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
  • HD Upper control arms provide superior strength and proper alignment
  • Adjustable height to fine tune
  • Provides level stance from front to rear
  • Easy, 100% Bolt On installation
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Recommended Tires & Wheels

  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

FOX 2.0 Snap Ring Strut

The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Important Notes

  1. Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
  2. Will not fit HD models (7 lug).

Installation

Est. Install Time :

3 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Basic Hand Tools, Ball Joint Separation Tool, Jack / Jack Stands

Specification

  • Front Lift Method : Coil-Over
  • Rear Lift Method : Stock
  • Shocks Included : Yes
  • Front Lift Height : 2"
  • Rear Lift Height : 0"

Product Series

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2014FordF-150FX44WDALLALLALL
2014FordF-150King Ranch4WDALLALLALL
2014FordF-150Lariat4WDALLALLALL
2014FordF-150Limited4WDALLALLALL
2014FordF-150Platinum4WDALLALLALL
2014FordF-150STX4WDALLALLALL
2014FordF-150XL4WDALLALLALL
2014FordF-150XLT4WDALLALLALL
2015FordF-150ALL4WDALLALLALL
2016FordF-150ALL4WDALLALLALL
2017FordF-150King Ranch4WDALLALLALL
2017FordF-150Lariat4WDALLALLALL
2017FordF-150Limited4WDALLALLALL
2017FordF-150Platinum4WDALLALLALL
2017FordF-150SSV4WDALLALLALL
2017FordF-150XL4WDALLALLALL
2017FordF-150XLT4WDALLALLALL
2018FordF-150King Ranch4WDALLALLALL
2018FordF-150Lariat4WDALLALLALL
2018FordF-150Limited4WDALLALLALL
2018FordF-150Platinum4WDALLALLALL
2018FordF-150Police Responder4WDALLALLALL
2018FordF-150SSV4WDALLALLALL
2018FordF-150XL4WDALLALLALL
2018FordF-150XLT4WDALLALLALL
2019FordF-150King Ranch4WDALLALLALL
2019FordF-150Lariat4WDALLALLALL
2019FordF-150Limited4WDALLALLALL
2019FordF-150Platinum4WDALLALLALL
2019FordF-150Police Responder4WDALLALLALL
2019FordF-150SSV4WDALLALLALL
2019FordF-150XL4WDALLALLALL
2019FordF-150XLT4WDALLALLALL
2020FordF-150King Ranch4WDALLALLALL
2020FordF-150Lariat4WDALLALLALL
2020FordF-150Limited4WDALLALLALL
2020FordF-150Platinum4WDALLALLALL
2020FordF-150Police Responder4WDALLALLALL
2020FordF-150SSV4WDALLALLALL
2020FordF-150XL4WDALLALLALL
2020FordF-150XLT4WDALLALLALL

Component List

1 BDS123253 2004-2020 F150 Upper Control Arm Box Kit
2 FOX98562009 15-20 Ford F150 4WD, Front C/O, Snap Ring, PS, 2.0, IFP, 5.6", 0-2" Lift
2 FOX98224651 Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1

Tires & Wheels Recommendations

35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 65.0 lbs.
  • W12.0000” x H6.0000” x L19.0000”
  • Free Ground Shipping | Exclusions Apply*
