BDS1566H | BDS Suspension 4 Inch Lift Kit With 4-Link For Ford F-350 Super Duty DRW 4WD | 2020-2022 | Gas | NX2 Nitro Series

4 Inch Lift Kit With 4-Link For Ford F-350 Super Duty DRW 4WD | 2020-2022 | Gas | NX2 Nitro Series

BDS1566H
Pricing: $2,795.25
Qty:
Free Ground Shipping | Exclusions Apply*

Description

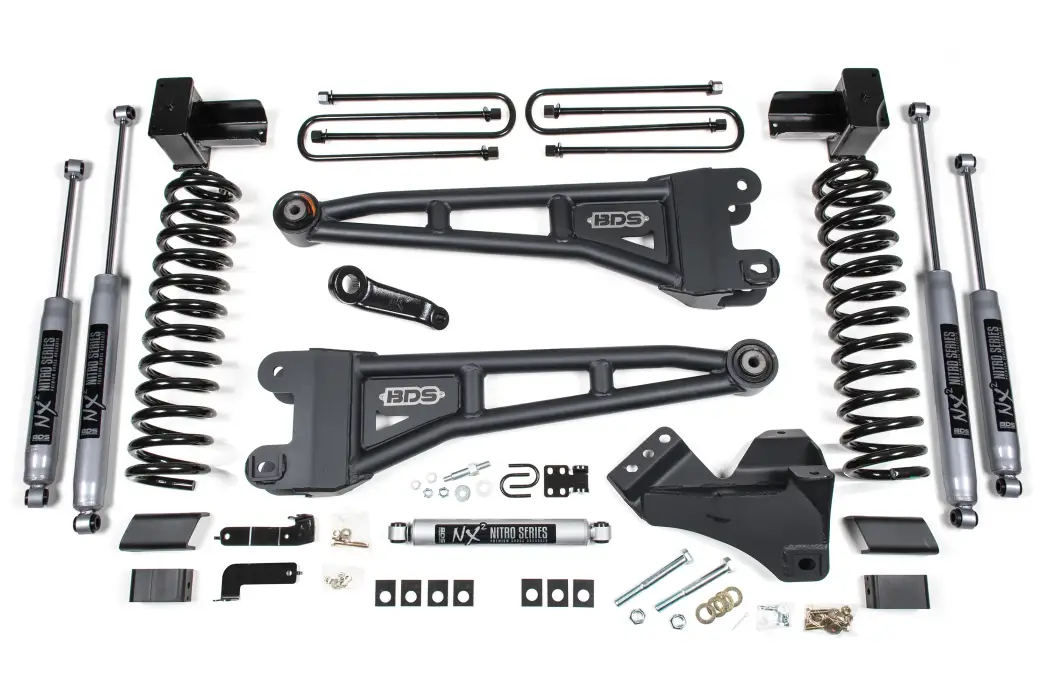

Raise the height of your dual rear wheel Ford F350 Super Duty gas-powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen-charged shocks.

In the rear, this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual-rate coil springs provide a remarkable ride through any terrain
  • Heavy-duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • The track bar relocation bracket and pitman's arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide a level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

4-Link Conversion

Convert the factory-stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Important Notes

  1. Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
  2. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  3. Front exhaust modification may be required to clear the front drive shaft (Gas Only)
  4. Torque wrench capable of 405 ft-lbs required.
  5. 37 x 12.50 tires may require minor trimming.

Installation

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

30mm Socket, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 3"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2020FordF-350 Super DutyKing Ranch4WDFLEXALLALL
2020FordF-350 Super DutyKing Ranch4WDGASALLALL
2020FordF-350 Super DutyLariat4WDFLEXALLALL
2020FordF-350 Super DutyLariat4WDGASALLALL
2020FordF-350 Super DutyPlatinum4WDGASALLALL
2020FordF-350 Super DutyPlatinum4WDFLEXALLALL
2020FordF-350 Super DutyXL4WDGASALLALL
2020FordF-350 Super DutyXL4WDFLEXALLALL
2020FordF-350 Super DutyXLT4WDGASALLALL
2020FordF-350 Super DutyXLT4WDFLEXALLALL
2021FordF-350 Super DutyKing Ranch4WDGASALLALL
2021FordF-350 Super DutyKing Ranch4WDFLEXALLALL
2021FordF-350 Super DutyLariat4WDFLEXALLALL
2021FordF-350 Super DutyLariat4WDGASALLALL
2021FordF-350 Super DutyPlatinum4WDFLEXALLALL
2021FordF-350 Super DutyPlatinum4WDGASALLALL
2021FordF-350 Super DutyXL4WDFLEXALLALL
2021FordF-350 Super DutyXL4WDGASALLALL
2021FordF-350 Super DutyXLT4WDGASALLALL
2021FordF-350 Super DutyXLT4WDFLEXALLALL
2022FordF-350 Super DutyKing Ranch4WDGASALLALL
2022FordF-350 Super DutyKing Ranch4WDFLEXALLALL
2022FordF-350 Super DutyLariat4WDGASALLALL
2022FordF-350 Super DutyLariat4WDFLEXALLALL
2022FordF-350 Super DutyPlatinum4WDGASALLALL
2022FordF-350 Super DutyPlatinum4WDFLEXALLALL
2022FordF-350 Super DutyXL4WDGASALLALL
2022FordF-350 Super DutyXL4WDFLEXALLALL
2022FordF-350 Super DutyXLT4WDGASALLALL
2022FordF-350 Super DutyXLT4WDFLEXALLALL

Component List

1 BDS013423 2017-2022 Ford F-250 / F-350 4in 4-Link Box Kit 2of2
1 BDS013317 2020-2022 Ford F-250/F-350 3In Rear Box Kit
1 BDS013601 2017-2022 Super Duty 4-Link Box Kit 1of2
1 BDS033412 2005-2022 Ford F250/F350 Gas 4" Coil Spring Kit
1 BDS85431 2017-2023 F250/F350 Single Stabilizer
2 BDS85700 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
2 BDS85718 Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1

Tires & Wheels Recommendations

37 x 12.5 with 17 x 9 and 5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
