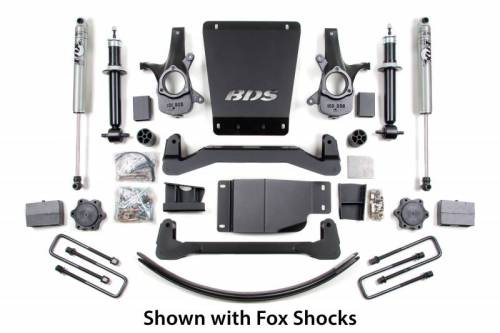

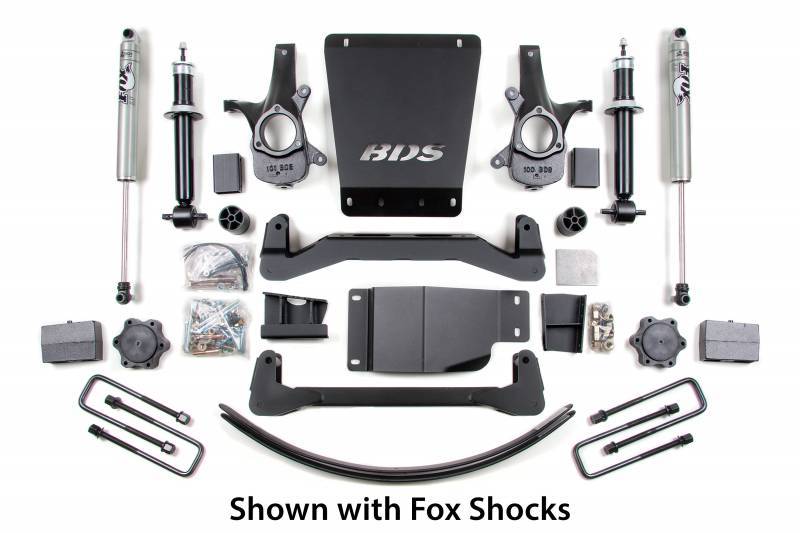

BDS176H | BDS Suspension 6" Lift Kit For Chevrolet Silverado / GMC Sierra 4WD 1500 | 2007-2013

The unique BDS High Clearance design is a true blend of performance, appearance, and function. The suspension geometry of this 6" lift kit creates a factory-style ride with a desert racing appearance. The black powder-coated high-arched cross members blend perfectly with the angle of the factory-installed lower control arms for a completely integrated look while lifting your vehicle a full 6" and increasing ground clearance at the front cross member by 91%.

This comprehensive IFS lift kit includes ductile steering knuckles correcting steering geometry to O.E. angles and custom valved front coil over strut cylinders with 18 mm shafts designed to handle increased tire & wheel weight without sacrificing ride quality. Heavy-duty front and differential skid plates are also included for extreme off-road protection and rear NX² series shocks.

Note: Stock 20" wheels can be re-installed only with factory tire size. Factory 17 and 18's cannot be re-installed.

Tire & Wheel Combinations

• 33" x 12.50" w/17 x 8 and 4-1/2" back spacing
• 35" x 12.50 w/17 x 9 or 18 x 9 and 5" back spacing
• 35" x 12.50" w/20 x 9 and 5.75" back spacing
• *Trimming may be required*

Est. Installation:

• 8 hours

Difficulty Level (easy 1 - 5 complicated):

• 4

Important Kit Notes

• 1. Will NOT FIT 2014 MODEL YEAR.
  2. Strut compressor required for installation
  3. This system will not fit 2007 classic models
  4. Requires frame bracket modification
  5. 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
  6. Traction bars will not fit regular cab short box models.
  7. Add 121651 Auxillary Differential support bracket for AWD models. Also may require front driveline modification.
  8. Will not fit two-mode hybrid models with electronic power steering.
•
  Note: Stock 20" wheels can be re-installed only with factory tire size. Factory 17 and 18's cannot be re-installed.
