74540 | Rough Country 3 Inch Lifted Struts Lift Kit For Toyota Tacoma 4WD | 2005-2023 | M1 Struts, M1 Rear Shocks
3 Inch Lifted Struts Lift Kit For Toyota Tacoma 4WD | 2005-2023 | M1 Struts, M1 Rear Shocks | Does NOT Fit 5 Lug, T/X Baja, XSP-X Models
Description
Explore New Heights. If you’re looking for not-too-tall and not-too-small, Rough Country’s 3” Lifted Strut kit is the perfect option for increased ground clearance and aggressive good looks! This all-inclusive kit features everything you need for a stunning, new appearance and enhanced off-road action, with a host of features designed to promote an incredible suspension geometry and ride quality!
Innovative Design and Construction. Rough Country's 3-in lift features a set of application-valved lifted struts to provide optimal ride quality and superior looks! This perfect-height lift is a great choice for anyone who wants more than a simple level but doesn’t quite want the full height of a 4 or 6-inch option. This kit lifts and levels the front of the vehicle with the rear, offering enough increased ground clearance to run up to 33" tires with an improved, aggressive look. We didn't want to limit you to one standard kit. Rough Country's 3-inch kit is configurable with all the shock options that we offer. This allows you to choose which shock series you want! Ranging from our nitrogen-charged N3 shocks to our Vertex reservoir shocks the power to choose is in your hands.
Installation. Featuring a 100% bolt-on installation process, an estimated timeframe of 2-4 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!
Limited Lifetime Replacement Warranty. Rough Country's 3" Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
FEATURES
- Easy installation.
- Increased ground clearance.
- Maintains factory ride quality.
- Levels the front with the rear of the vehicle.
OPTIONAL N3 LOADED STRUTS
- Includes pre-loaded coil.
- Maintains smooth, factory-like ride.
- Increased ground clearance.
- Engineered for lifted applications.
- Infinitely Variable Damping.
- Leak-proof piston seal.
- Massive 1 3/8in Bore.
- Silver powder coat finish.
- 3-year Manufacturer's Warranty.
OPTIONAL M1 MONOTUBE STRUTS
- 2-inch seamless extruded tube.
- 46mm digressive piston.
- Digressive valving.
- 46mm digressive piston.
- Fast heat dissipation.
- Fade-free performance
- Natural rubber bushings.
- Zinc plated aluminum body.
- 3-year Manufacturer's Warranty.
OPTIONAL VERTEX COILOVERS
- 8-Stage Adjustable Damping.
- Monotube Design.
- Nitrogen-charged.
- Massive 2.5in Piston.
- 22mm Chrome-Hardened Piston Rod.
- 3-Stage Seal System.
- Heat-Treated, Alloy Bearing.
- Honed Steel Body.
- 3-year Manufacturer's Warranty.
NOTES - IMPORTANT
- Requires minor cutting.
- Does NOT fit models with 5 lug wheels.
- Does NOT fit T/X Baja models.
- Does NOT fit XSP-X models.
SPECS
- Est. Install Time 2-4 hours
Vehicle Applications
NOTES - IMPORTANT
Requires minor cutting.
Does NOT fit models with 5 lug wheels.
Does NOT fit T/X Baja models.
Does NOT fit XSP-X models.

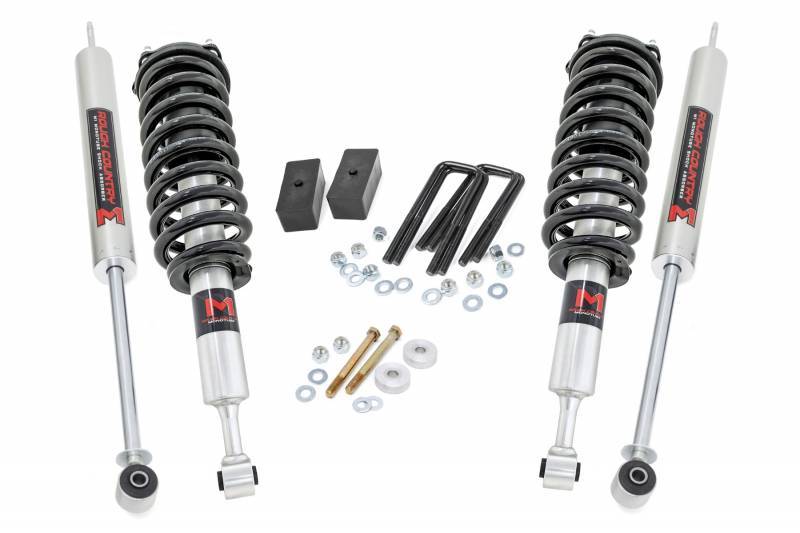

Components
(2) Struts
Differential spacers
Hardware
REAR
2in lift blocks
U-bolts
Hardware
SHOCKS
(2) Shocks (Rear)
Tire & Wheels
285/70R17 Factory 17 6x5.5 - 0.25 Spacer
285/70R17 17x8.5 6x5.5 +0 Minor trimming
265/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +1 Minor trimming
265/70R17 17x8.5 6x5.5 +1 -
265/70R17 17x9 6x5.5 -12 -
285/70R17 17x9 6x5.5 +0 Minor trimming
265/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 Minor trimming
265/70R17 17x9 6x5.5 +1 -
285/65R18 18x8.5 6x5.5 +0 Minor trimming
265/70R18 18x8.5 6x5.5 +0 -
285/65R18 18x8.5 6x5.5 +1 Minor trimming
265/70R18 18x8.5 6x5.5 +1 -
265/70R18 18x9 6x5.5 -12 -
285/65R18 18x9 6x5.5 +0 Minor trimming
265/70R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 Minor trimming
265/70R18 18x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +0 Minor trimming
285/55R20 20x9 6x5.5 +1 Minor trimming
Details
- 74540
- 74540
- 840269918667
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 72.0 lbs.
- W11.0200” x H5.9000” x L32.6800”
- Free Ground Shipping | Exclusions Apply*
