21740 | Rough Country 6 Inch Lift Kit M1 Struts / M1 Rear Shocks (2019-2024 Silverado 1500 | 4.3L, 5.3L, 6.2L Gas Engine | Multi-Leaf Spring)
2019-2024 Chevrolet Silverado 1500 2WD/4WD | 4.3L, 5.3L, 6.2L Gas Engine | Multi-Leaf Spring
Description

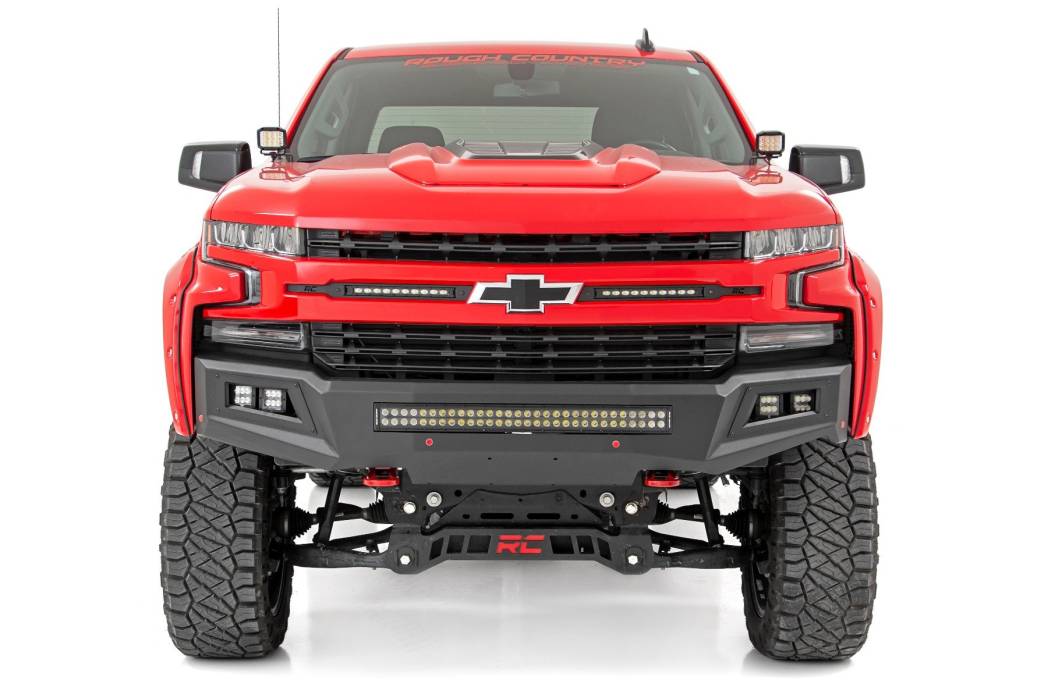

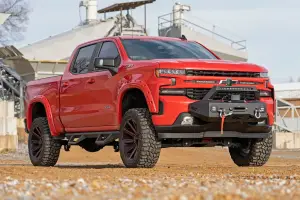

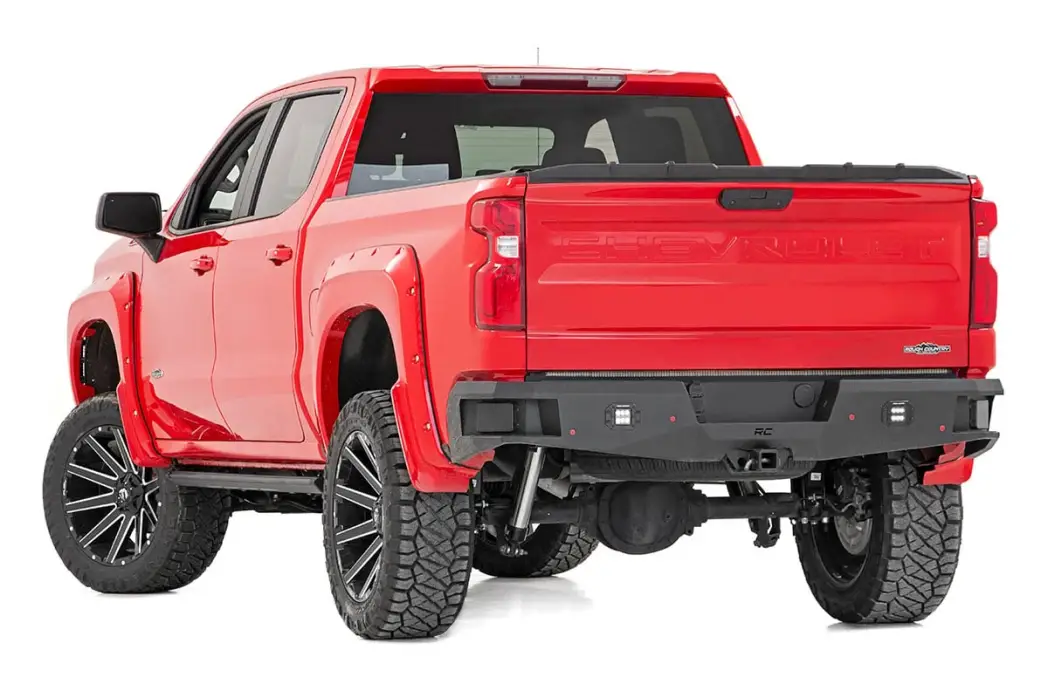

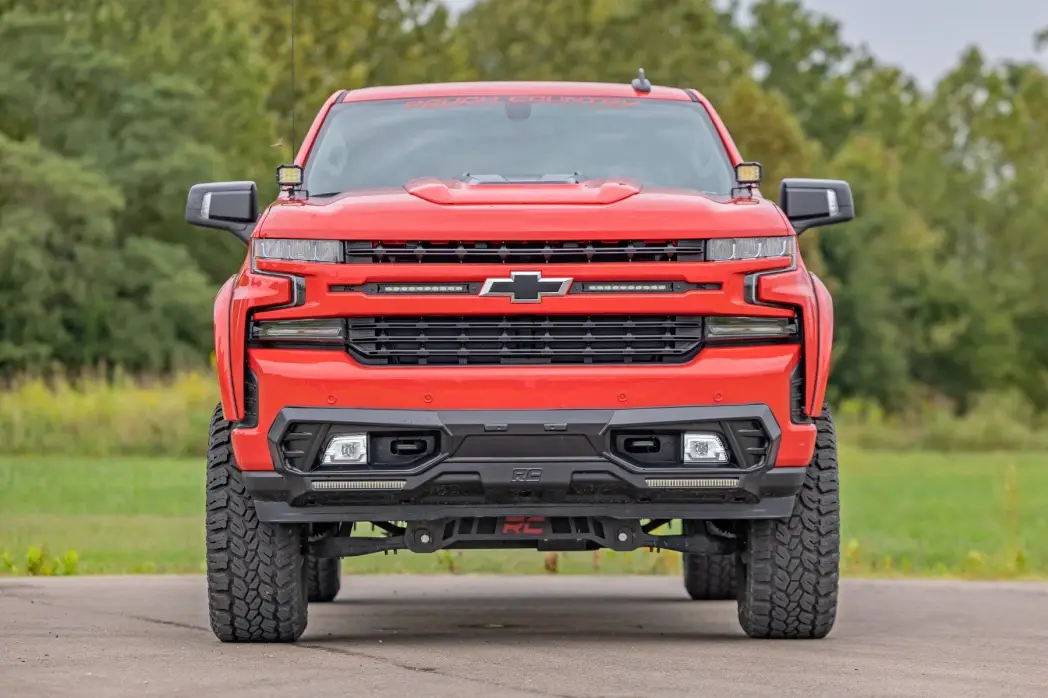

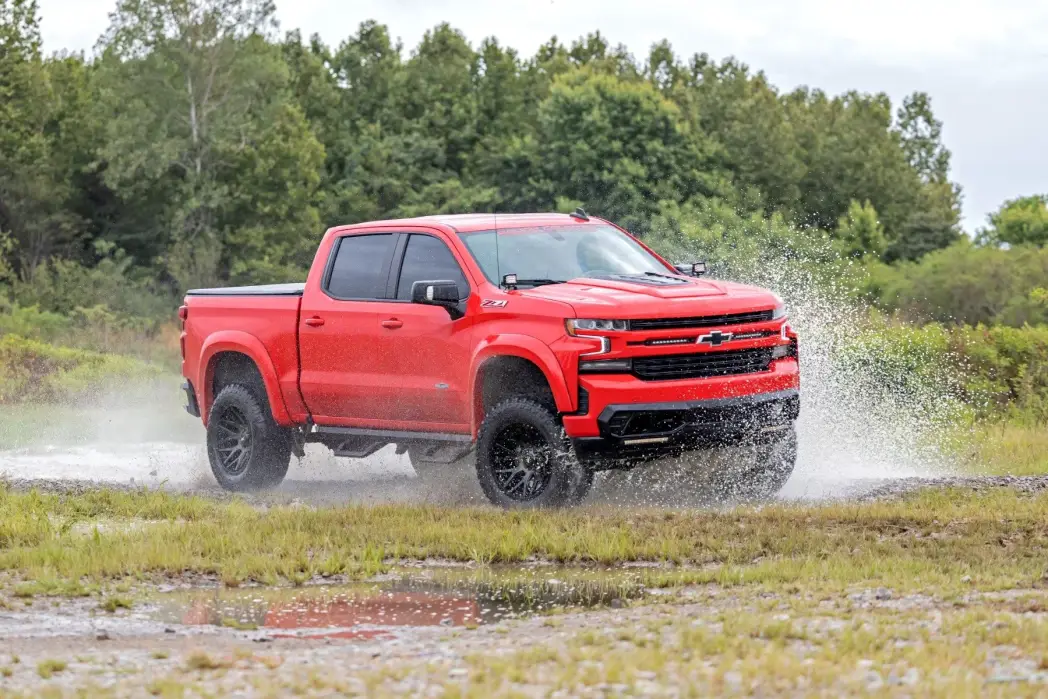

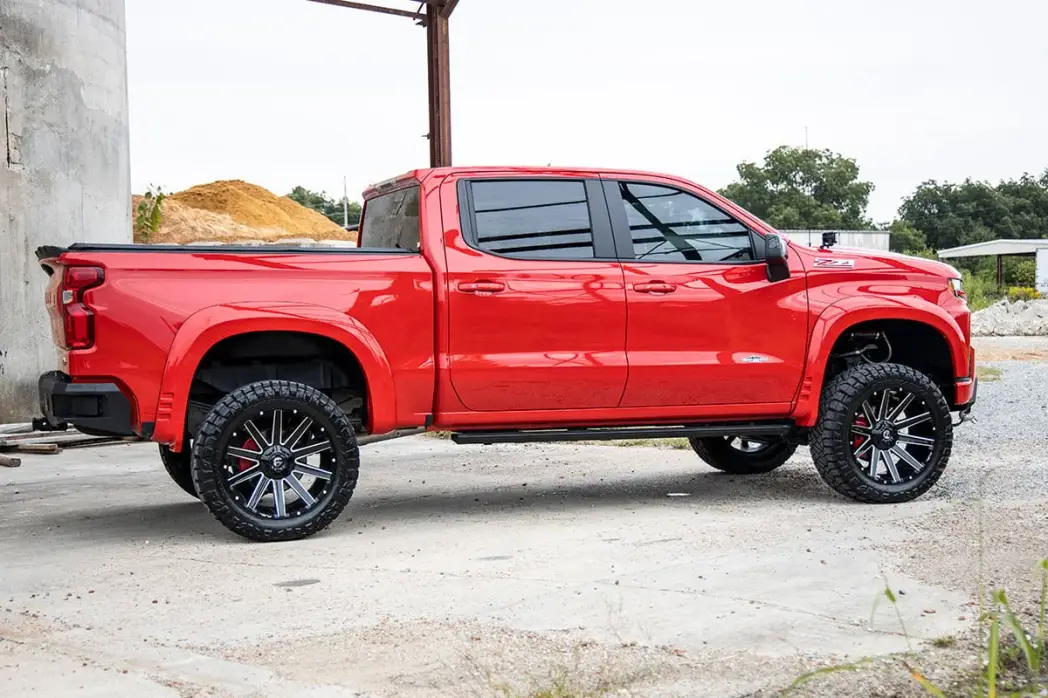

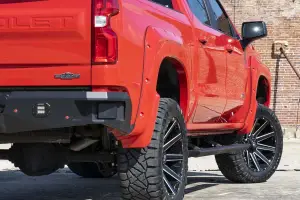

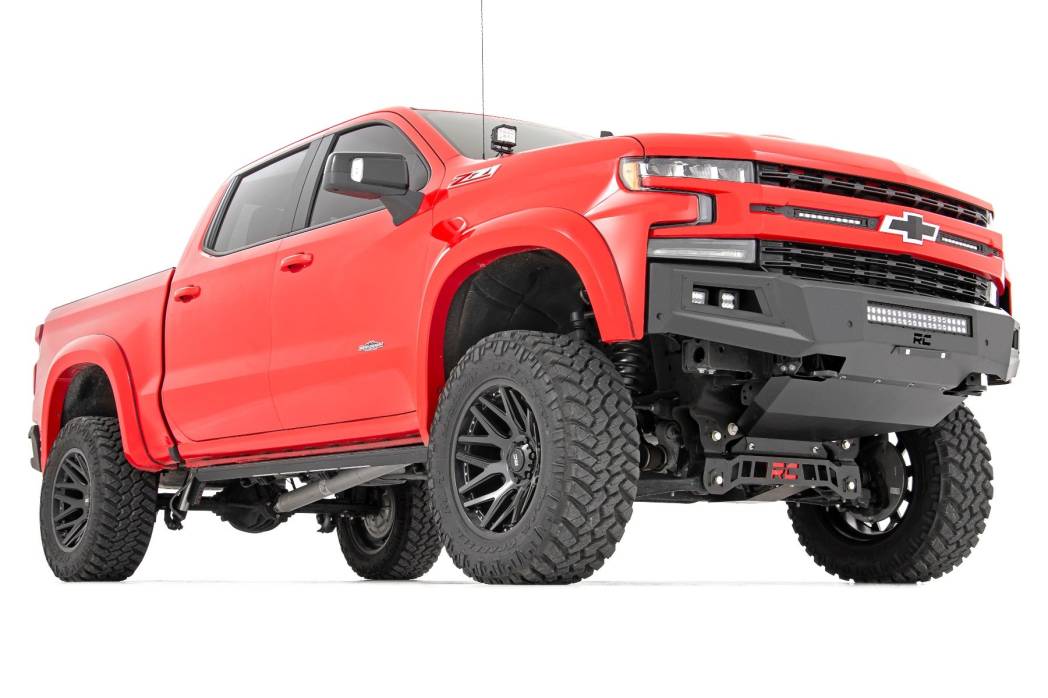

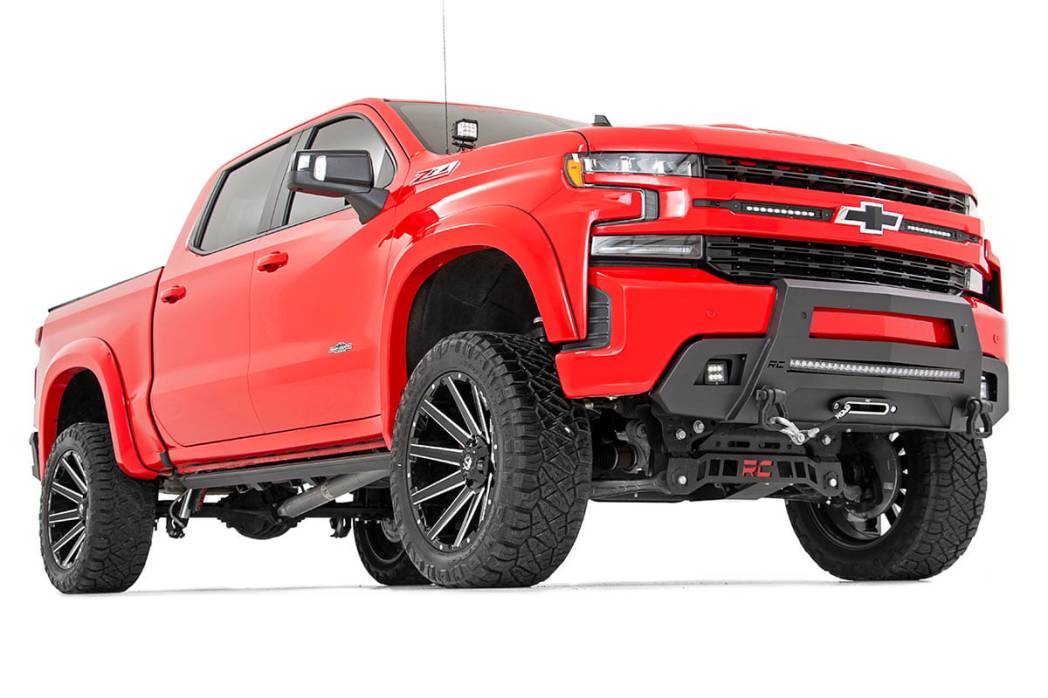

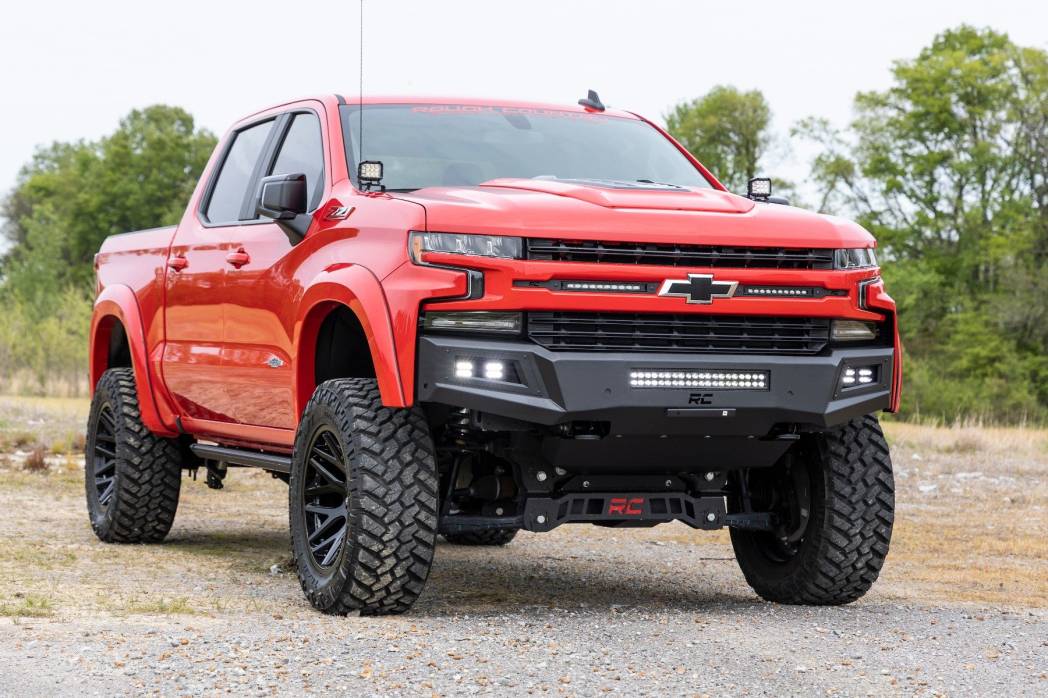

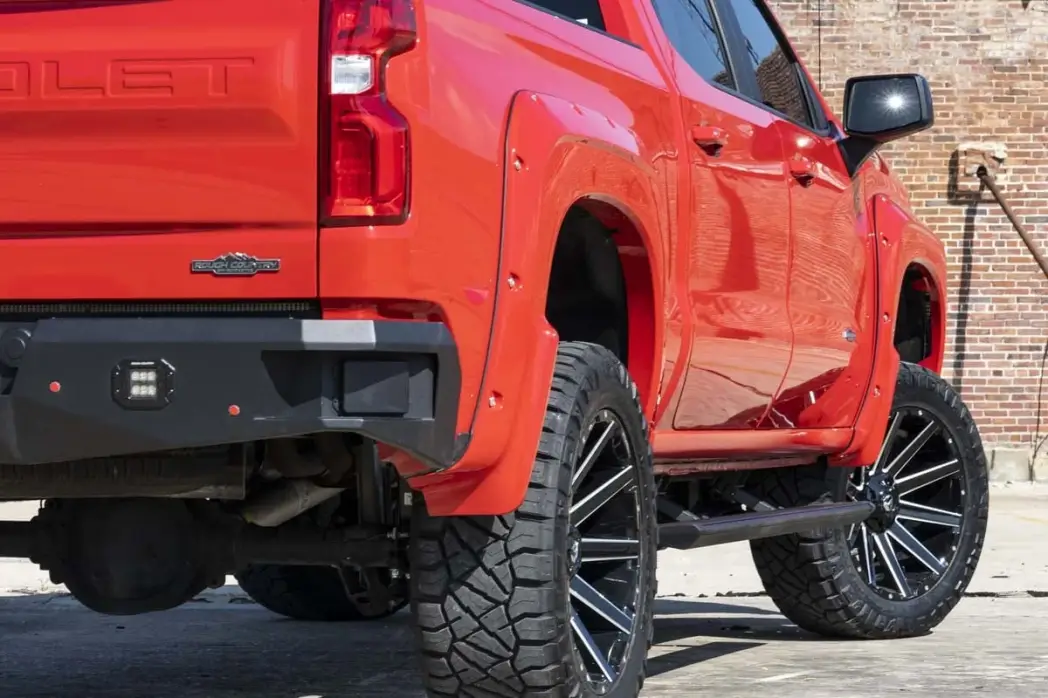

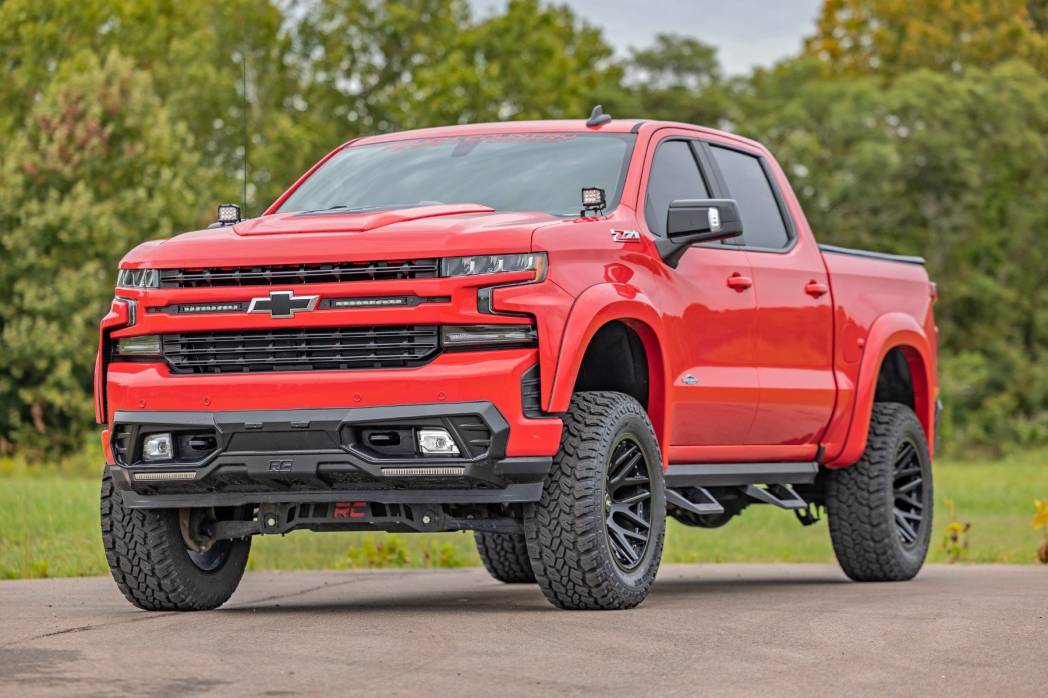

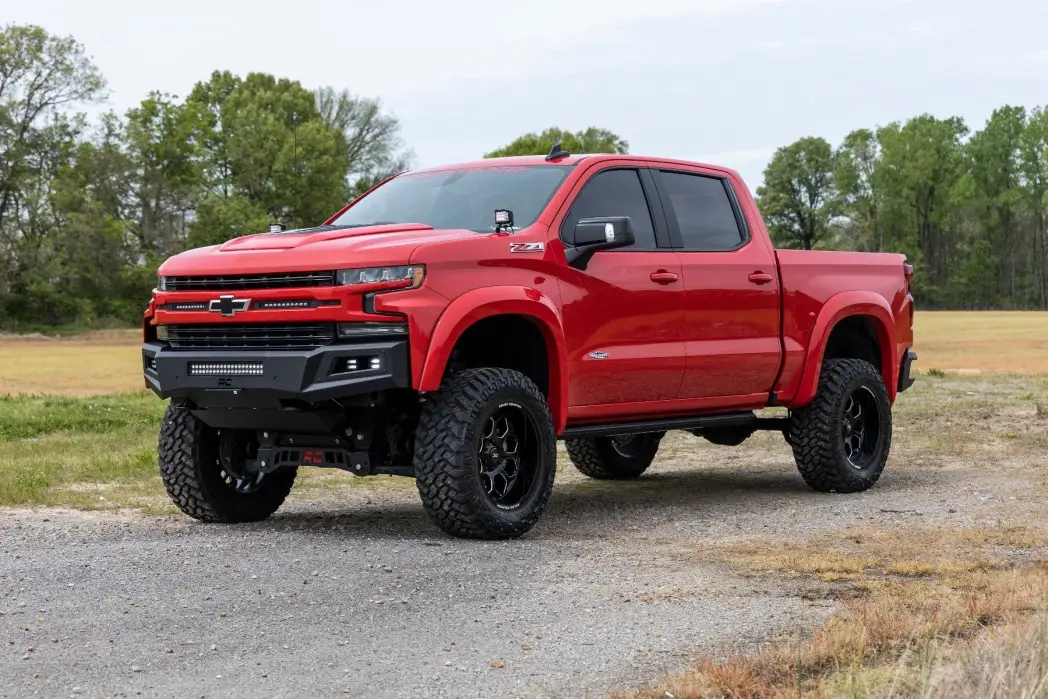

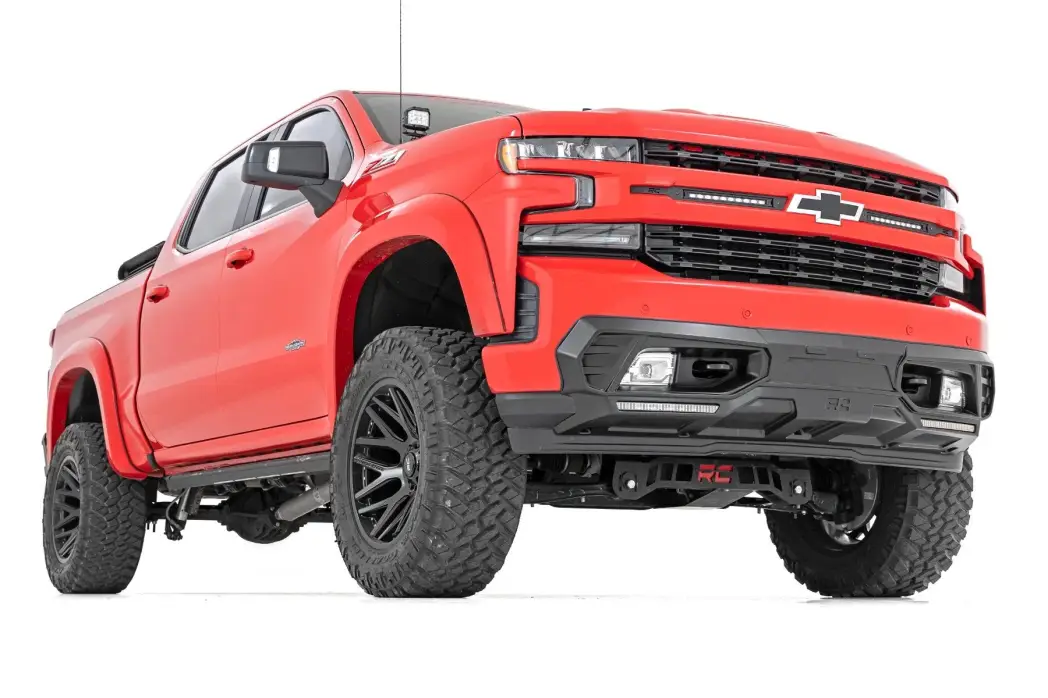

6 Inch Lift Kit with M1 Struts / M1 Rear Shocks | Chevy Silverado 1500 4WD (2019-2024)
Explore New Heights. Chevy's fourth generation 1500 features an impressive all-new design that’s built from the ground up, with aggressive angles and head-turning stylings that fit in beautifully when transformed with Rough Country’s 6-inch Suspension Lift.
Innovative Design and Construction. When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. This suspension kit combines the use of durable steel knuckles, differential brackets, and drop cross members to reduce cv angles and simulate factory angles all while achieving new heights. Featuring a set of upper strut spacers that offer uncompromised strength and rigidity, gaining lift height is no issue. Completing the rear of this suspension kit is a set of rear blocks, shocks, and u-bolts that allow you to retain factory-like geometry. This combined setup provides enough clearance to run 35" tires without additional modifications. We didn't want to limit you to one standard kit. Rough Country's 6-inch kit is configurable with all the shock options that we offer. This allows you to choose which shock series you want! Ranging from our nitrogen-charged N3 shocks to our Vertex reservoir shocks the power to choose is in your hands.
Installation. With minor cutting and a strut compressor required to install, an estimated timeframe of 8-10 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!
Limited Lifetime Replacement Warranty. Rough Country's 6" Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
Features
- Lifts and levels the vehicle from front to rear.
- High clearance crossmember design for optimal suspension geometry.
- Includes cast knuckles for extreme durability.
- Retains stock track width.
- No strut disassembly required.
- 100% precision laser cut materials using the latest computer-aided design process.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Notes - Important
- Does NOT fit GMC Sierra, for GMC use #22931
- Does NOT fit Trailboss models. For Trailboss use#27531
- Does NOT fit models with two piece rear driveshaft.
- Does NOT fit "Classic" models (2018 body style)
- Requires cutting and drilling.
Tire & Wheel Details
- Does NOT fit factory wheels
- 20-inch or larger aftermarket wheels are required.
- Wheels must feature 4.5in backspacing to fit
- Please test fit wheels prior to installation
- Must verify compatibility of the aftermarket wheel with the 2019 and up GM larger brake caliper system.
- Some aftermarket wheels may require .25" wheel spacer #1065.
Specs
Est. Install Time | 8-10 hours |
---|
Application List
2019-2024 Chevrolet Silverado 1500 LT 4WD
2019-2024 Chevrolet Silverado 1500 LTZ 4WD
2023-2024 Chevrolet Silverado 1500 PPV 4WD
2019-2024 Chevrolet Silverado 1500 RST 4WD
2019-2024 Chevrolet Silverado 1500 WT 4WD
2022-2024 Chevrolet Silverado 1500 ZR2 4WD

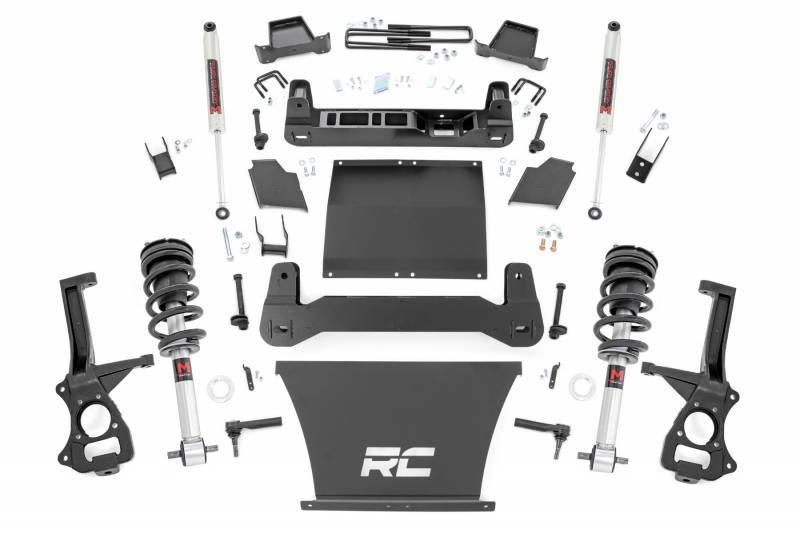

Components
Lifted knuckles
Front crossmember
Rear crossmember
M1 Loaded Struts
Differential drop brackets
Differential skid plate
Sway-bar drop brackets
Hardware
Rear
Fabricated lift blocks
Brake line brackets
U-bolts
Hardware
Shocks
(2) RM1 Monotube series
Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
35x12.50R20 | 20x9 | 6x5.5 | -12 | - |
295/60R20 | 20x9 | 6x5.5 | -12 | - |
35x12.50R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
295/60R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
35x12.50R20 | 20x10 | 6x5.5 | -24 | Minor Trimming |
295/60R20 | 20x10 | 6x5.5 | -24 | Minor Trimming |
35x12.50R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
295/60R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
35x12.50R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
295/60R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
35x12.50R20 | 20x12 | 6x5.5 | -44 | Trimming Required |
35x12.50R22 | 22x10 | 6x5.5 | -25 | Minor Trimming |
285/55R22 | 22x10 | 6x5.5 | -25 | - |
35x12.50R22 | 22x10 | 6x5.5 | -24 | Minor Trimming |
35x12.50R22 | 22x10 | 6x5.5 | -19 | Minor Trimming |
285/55R22 | 22x10 | 6x5.5 | -19 | - |
35x12.50R22 | 22x10 | 6x5.5 | -18 | Minor Trimming |
285/55R22 | 22x10 | 6x5.5 | -18 | - |
35x12.50R22 | 22x12 | 6x5.5 | -44 | Trimming Required |
Details
- 21740
- 21740
- 840269917028
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
