50740 | Rough Country 6 Inch Lift Kit For Ford F-250/F-350 Super Duty 4WD | 2017-2022 | Diesel, No Overloads Springs, 4" Axle Diameter, M1 Shocks, No Front Driveshaft

6 Inch Lift Kit | 2017-2022 | Ford F-250/F-350 Super Duty 4WD | Diesel, No Overloads Springs, 4" Axle Diameter, M1 Shocks, No Front Driveshaft

50740
Pricing: $2,639.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Gain greater travel and improved handling while adding ground clearance and aggressive style with Rough Country’s 4-Link F-250 Lift Kit.

This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country’s durable, fixed upper arms and adjustable lower control arms. A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.

This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country’s Nitrogen-Charged N2.0 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride. Includes Rough Country’s Lifetime Replacement Warranty

FEATURES

  • Easy bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

OPTIONAL PREMIUM N3 SHOCKS

  • 10-Stage Variable Valving
  • High Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Models equipped with a 10-speed transmission must remove dial pin.
  • Does NOT fit gas engine models.
  • Does NOT fit manual shift transfer cases
  • Does NOT fit dually models.
  • New fabricated lift block replaces the factory-equipped lift block.
  • Does NOT work on models equipped with Tremor Factory Trim Package

SPECS

  • Est. Install Time 6-10 hours

Vehicle Applications

2017 - 2022 Ford F-250 Super Duty
2017 - 2022 Ford F-350 Super Duty

NOTES - IMPORTANT
Does NOT fit gas engine models.
Does NOT fit manual shift transfer cases Does NOT fit dually models.
Does NOT fit models with 3.5" rear axle tube Does NOT fit models equipped with rear factory contact overload springs New fabricated lift block replaces the factory equipped lift block.
Does NOT work on models equipped with Tremor Factory Trim Package

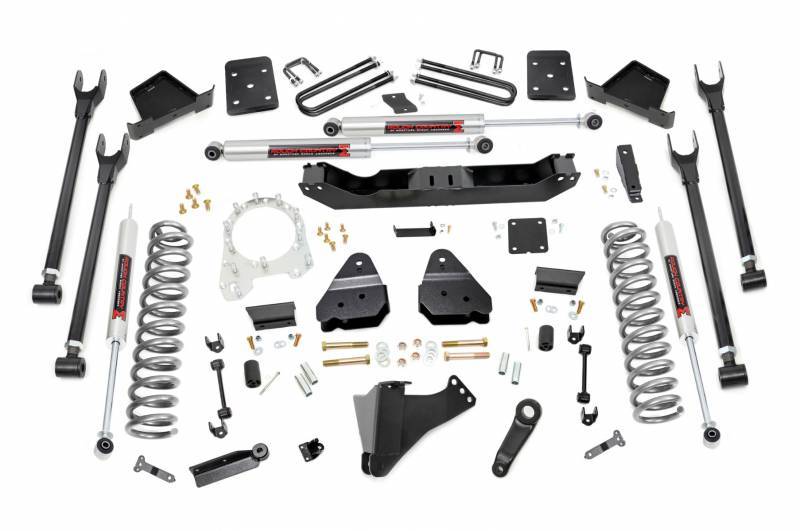

Components

FRONT
Lifted coil springs
Fixed upper control arms
Clocking ring kit
Adjustable lower control arms
Radius arm drop brackets
Sway-bar drop brackets
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware

REAR
Fabricated anti-wrap lift blocks
Carrier bearing drop bracket
Brake line brackets
U-bolts
Hardware

SHOCKS
(4) Shocks

Tire & Wheels

37x12.50R17 17x9 8x170 -12 -
37x12.50R17 17x9 8x170 +0 -
37x12.50R17 17x9 8x170 +1 -
37x12.50R18 18x9 8x170 -12 -
37x12.50R18 18x9 8x170 +0 -
37x12.50R18 18x9 8x170 +1 -
37x12.50R20 20x9 8x170 -12 -
37x12.50R20 20x9 8x170 +0 -
37x12.50R20 20x9 8x170 +1 -
37x12.50R20 20x10 8x170 -25 Minor Trimming
37x12.50R20 20x10 8x170 -24 Minor Trimming
37x12.50R20 20x10 8x170 -19 Minor Trimming
37x12.50R20 20x10 8x170 -18 Minor Trimming
35x12.50R20 20x12 8x170 -44 Minor Trimming
37x12.50R22 22x9 8x170 -12 -
37x12.50R22 22x9 8x170 +0 -
37x12.50R22 22x9 8x170 +1 -
37x12.50R22 22x10 8x170 -25 Minor Trimming
37x12.50R22 22x10 8x170 -24 Minor Trimming
37x12.50R22 22x10 8x170 -19 Minor Trimming
37x12.50R22 22x10 8x170 -18 Minor Trimming
35x12.50R22 22x12 8x170 -44 Minor Trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
