53640 | Rough Country 6 Inch Lift Kit For Ford F-250/F-350 Super Duty 4WD | 2005-2007 | Diesel, M1 Shocks

6 Inch Lift Kit | 2005-2007 | Ford F-250/F-350 Super Duty 4WD | Does NOT Fit Dually Models | Diesel, M1 Shocks

53640
Pricing: $1,704.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Compliment your 05-07 Ford F-250/350's aggressive, good looks with Rough Country's 6-inch Radius Arm Lift Kit. Rough Country's 6-inch Lift Kit was engineered to retain the F-250/350's impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with a mean profile and balanced on and off-road ride quality.

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Radius Arm Suspension Lift features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. At 27lbs each, these beefy, upgraded Radius Arms dwarf stock equipment while and feature durable Clevite Rubber Bushings for maximum vibration absorption.

This all-inclusive kit also features an adjustable alignment cam at the axle to allow caster adjustment as well as a track bar relocation bracket and a drop pitman arm. A full set of N3 Shocks provide a truly balanced ride quality for on and off-road use - prefect for daily drivers. This kit also ships with a set of durable, lifted coil springs and brake line relocation brackets.

This innovative kit design features a 100% bolt-on installation process that is lightning fast compared to other kits this size. Save time and money with no need for cutting, drilling, or other complicated procedures. Rough Country's 6-inch Radius Arm Lift Kit is backed by our Lifetime Replacement Warranty.

FEATURES

  • 100% bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Includes heavy-duty radius arms equipped with durable Clevite Rubber Bushings for maximum vibration absorption.
  • New radius arms help maintain factory angles.
  • Includes adjustable alignment cam at the axle to allow caster adjustment
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

OPTIONAL PREMIUM N3 SHOCKS

  • 10-Stage Variable Valving
  • High Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Does NOT fit dually models.
  • Factory rear contact overload springs will need to be removed

Vehicle Applications

2005 - 2007 Ford F-250 Super Duty
2005 - 2007 Ford F-350 Super Duty

NOTES - IMPORTANT
Does NOT fit dually models.
Does NOT fit gas engine models.
Factory rear contact overload springs will need to be removed

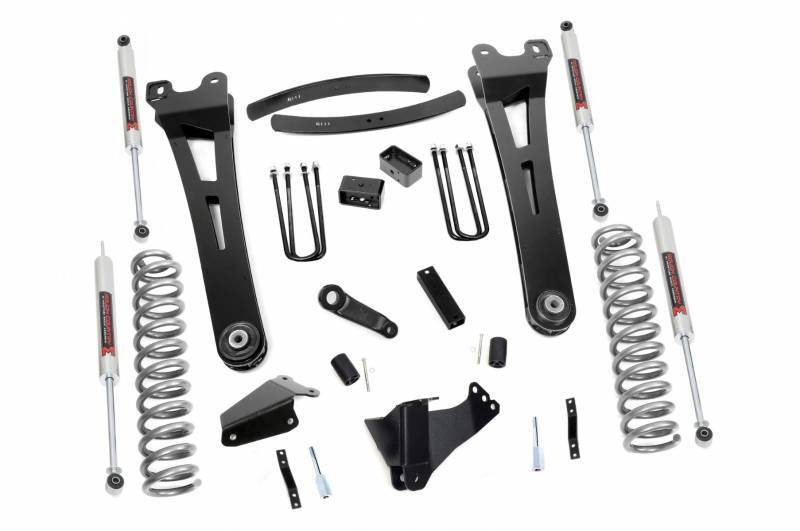

Components

FRONT
Lifted coil springs
Radius arms
Sway-bar extensions
Track bar drop bracket
Stabilizer relocation bracket
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware

REAR
Fabricated lift blocks
Add-a-leafs
Carrier bearing drop bracket
U-bolts
Hardware

SHOCKS
(4) Shocks

Tire & Wheels

37x12.50R17 17x9 8x170 -12 -
37x12.50R17 17x9 8x170 +0 -
37x12.50R17 17x9 8x170 +1 -
37x12.50R18 18x9 8x170 -12 -
37x12.50R18 18x9 8x170 +0 -
37x12.50R18 18x9 8x170 +1 -
37x12.50R20 20x9 8x170 -12 -
37x12.50R20 20x9 8x170 +0 -
37x12.50R20 20x9 8x170 +1 -
37x12.50R20 20x10 8x170 -25 Minor Trimming
37x12.50R20 20x10 8x170 -24 Minor Trimming
37x12.50R20 20x10 8x170 -19 Minor Trimming
37x12.50R20 20x10 8x170 -18 Minor Trimming
37x12.50R20 20x12 8x170 -44 Minor Trimming
37x12.50R22 22x10 8x170 -25 Minor Trimming
37x12.50R22 22x10 8x170 -24 Minor Trimming
37x12.50R22 22x10 8x170 -19 Minor Trimming
37x12.50R22 22x10 8x170 -18 Minor Trimming
37x12.50R22 22x12 8x170 -44 Minor Trimming

Details

  • 53640
  • 53640
  • 840269917813
  • Rough Country
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
