47840 | Rough Country 4.5 Inch Lift Kit For Ford F-250/F-350 Super Duty 4WD | 2008-2010 | M1 Shocks

4.5 Inch Lift Kit | 2008-2010 | Ford F-250/F-350 Super Duty 4WD | Does NOT Fit Dually & V8 Gas Models | M1 Shocks

SKU: 47840

Pricing: $1,522.95

Description
Vehicle Applications
Components
Wheels & Tire
Details
Shipping
Documents

Description

This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.

FEATURES

Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

OPTIONAL PREMIUM N3 SHOCKS

10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Metallic Silver Paint
Silver powder coat finish
3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS

8-Stage Adjustable Damping
Monotube Design
Nitrogen-charged
Massive 2.5in Piston
22mm Chrome-Hardened Piston Rod
3-Stage Seal System
Heat-Treated, Alloy Bearing
Honed Steel Body
3-year Manufacturer's Warranty

NOTES - IMPORTANT

Does NOT fit V-8 gas engine models.
Does NOT fit dually models.
V-10 gas engine models will require exhaust modification to clear the front driveshaft.
If vehicle is equipped with rear overload leafs, they will need to be removed.

SPECS

Est. Install Time 6-8 hours

Vehicle Applications

2009 - 2010 Ford F-250 Super Duty
2008 - 2010 Ford F-350 Super Duty

NOTES - IMPORTANT
Does NOT fit V-8 gas engine models.
Does NOT fit dually models.
V-10 gas engine models will require exhaust modification to clear the front driveshaft.
If vehicle is equipped with rear overload leafs, they will need to be removed.

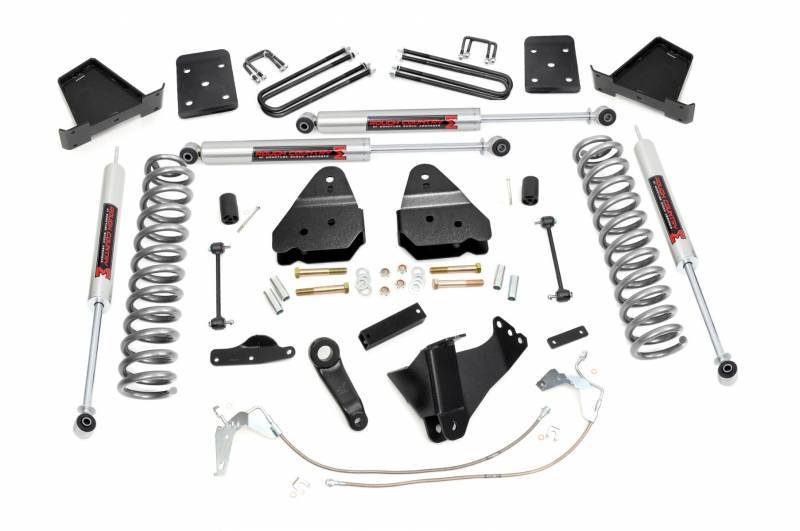

Components

FRONT
Lifted coil springs
Radius arm drop brackets
Extended sway-bar links
Track bar drop bracket
Pitman arm
Stainless steel braided brake lines
Bumpstop spacers
Hardware

REAR
Fabricated anti-wrap lift blocks
Carrier bearing drop bracket
U-bolts
Hardware

SHOCKS
(4) Shocks
