55040 | Rough Country 4.5 Inch Lift Kit For Ford F-250/F-350 Super Duty 4WD | 2017-2022 | Diesel, 3.5" Axle, M1 Shocks, No Front Driveshaft
4.5 Inch Lift Kit | Ford F-250/F-350 Super Duty 4WD | 2017-2022 | 3.5" Axle, M1 Shocks, No Front Driveshaft
Description
Give your 17-20 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 4.5" Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.
This kit features a set of front, lifted coil springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of sway bar drop brackets and track bar are provided to keep everything at optimum angles for a factory-like ride, even after lifting.
A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Get the wheels you want! Rough Country's 4.5" 17-20 Ford Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.
Best of all, Rough Country's 4.5” Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty!
FEATURES
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
OPTIONAL PREMIUM N3 SHOCKS
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
OPTIONAL VERTEX SHOCKS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Models equipped with a 10-speed transmission must remove dial pin.
- Does NOT fit gas engine models.
- Vertex kits do NOT allow use of factory wheels.
- Does NOT fit dually models.
- Does NOT fit manual shift transfer cases.
- Does NOT work on models equipped with Tremor Factory Trim Package.
SPECS
- Est. Install Time 6-10 hours
Vehicle Applications
2017 - 2022 Ford F-350 Super Duty
NOTES - IMPORTANT
Does NOT fit F-350 models.
Does NOT fit gas engine models.
Does NOT fit manual shift transfer cases Does NOT fit dually models.
Does NOT fit models with 4" rear axle tube Does NOT work on models equipped with Tremor Factory Trim Package Does NOT fit 2020 models with 10-speed transmission

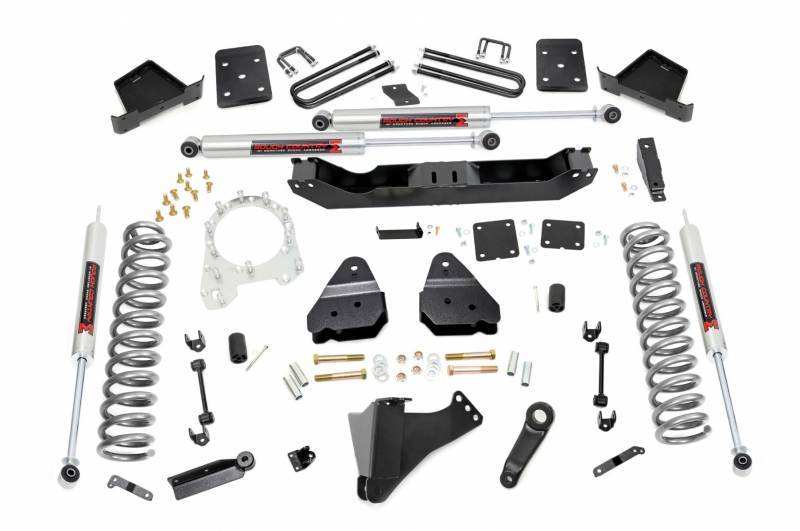

Components
Lifted coil springs
Radius arm drop brackets
Clocking ring kit
Sway-bar links
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware
REAR
Fabricated lift blocks
Brake line brackets
U-bolts
Hardware
SHOCKS
(4) Shocks
Details
- 55040
- 55040
- 840269917912
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
