53440 | Rough Country 4.5 Inch Lift Kit For Ford F-250 Super Duty 4WD | 2015-2016 | Diesel, No Rear Overload Springs, M1 Shocks
4.5 Inch Lift Kit | Ford F-250 Super Duty 4WD | 2015-2016 | Does NOT Fit Dually Models | Diesel, No Rear Overload Springs, M1 Shocks
Description
Give your 15-16 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 4.5" Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be the equal height with the rear for a levelled, better-than-stock look that gives an improved ride height and a more aggressive appearance.
This kit features a set of front, lifted coil springs allowing you to gain additional ride height without sacrificing ride quality or performance. A set of sway bar drop brackets and track bar are provided to keep everything at optimum angles for a factory-like ride, even after lifting.
A set of Rough Country's premium N3 shocks are also included. These fine-tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Get the wheels you want! Rough Country's 4.5" 15-16 Ford Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.
Best of all, Rough Country's 4.5” Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty!
FEATURES
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for the properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
OPTIONAL PREMIUM N3 SHOCKS
- 10-Stage Variable Valving
- High-Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
OPTIONAL VERTEX SHOCKS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Does NOT fit F-350 models.
- Does NOT fit gas engine models.
- Does NOT fit dually models.
- A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. (#1197)
SPECS
- Est. Install Time 4-6 hours
Vehicle Applications
NOTES - IMPORTANT
Does NOT fit F-350 models.
Does NOT fit gas engine models.
Does NOT fit dually models.
Does NOT fit models with rear overload springs - Please use SKU: 567.20.
A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft.
(#1197)

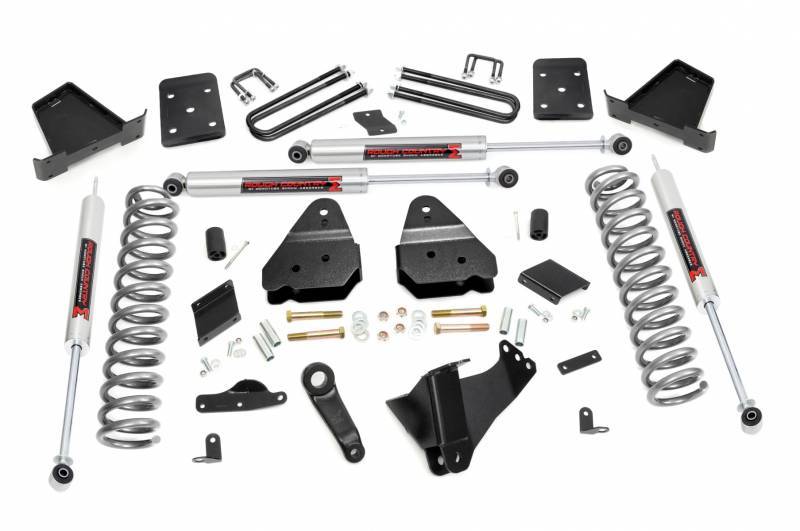

Components
Lifted coil springs
Radius arm drop brackets
Sway-bar drop brackets
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware
REAR
Fabricated lift blocks
Brake line brackets
U-bolts
Hardware
SHOCKS
(4) Shocks
Tires & Wheels
35x12.50R17 17x9 8x170 +0 -
35x12.50R17 17x9 8x170 +1 -
35x12.50R18 18x9 8x170 -12 -
35x12.50R18 18x9 8x170 +0 -
35x12.50R18 18x9 8x170 +1 -
35x12.50R20 20x9 8x170 -12 -
35x12.50R20 20x9 8x170 +0 -
35x12.50R20 20x9 8x170 +1 -
35x12.50R20 20x10 8x170 -25 Minor Trimming
35x12.50R20 20x10 8x170 -24 Minor Trimming
35x12.50R20 20x10 8x170 -19 Minor Trimming
35x12.50R20 20x10 8x170 -18 Minor Trimming
35x12.50R20 20x12 8x170 -44 Minor Trimming
35x12.50R22 22x10 8x170 -25 Minor Trimming
35x12.50R22 22x10 8x170 -24 Minor Trimming
35x12.50R22 22x10 8x170 -19 Minor Trimming
35x12.50R22 22x10 8x170 -18 Minor Trimming
35x12.50R22 22x12 8x170 -44 Minor Trimming
