53140 | Rough Country 6 Inch Lift Kit For Ford F-250 Super Duty 4WD | 2011-2014 | Diesel, No Rear Factory Overloads, M1 Shocks
6 Inch Lift Kit | Ford F-250 Super Duty 4WD | 2011-2014 | Does NOT Fit Dually Models | Diesel, No Rear Factory Overloads, M1 Shocks
Description
Take your F-250 off the freeway and onto the trails with Rough Country’s 6-inch Suspension Lift. This all-inclusive kit is a total transformation for your truck, including everything you need for increased ground clearance and killer, good looks.
This kit includes a set of lifted coil springs, radius arm drop brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country’s Nitrogen-Charged N3 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride. Includes Rough Country’s Lifetime Replacement Warranty
FEATURES
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for the properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problems.
OPTIONAL PREMIUM N3 SHOCKS
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
OPTIONAL VERTEX SHOCKS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Does NOT F-350 models.
- Does NOT fit dually models.
- Must know if rear leaf springs are equipped with a factory contact overload spring
- Gas models may require exhaust modification to clear front drive shaft
SPECS
- Est. Install Time 6-8 hours
Vehicle Applications
NOTES - IMPORTANT
Does NOT F-350 models.
Does NOT fit dually models.
Does NOT fit gas engine models.
Does NOT fit models equipped with rear factory contact overload springs

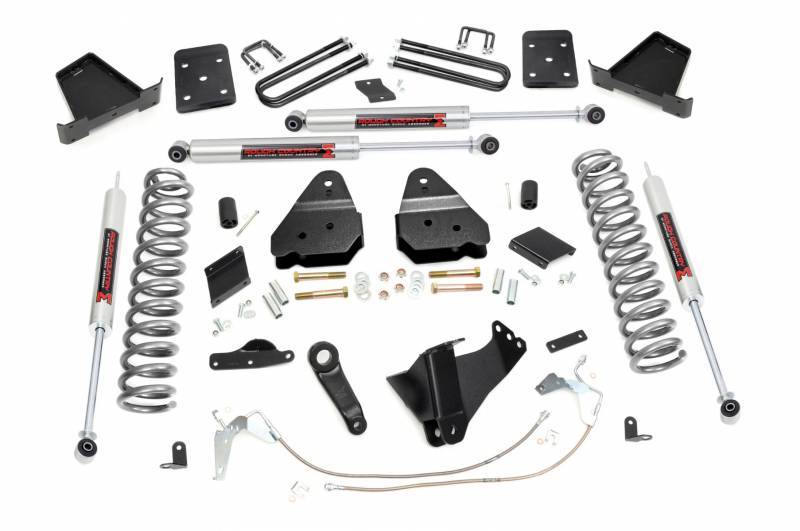

Components
Lifted coil springs
Radius arm drop brackets
Sway-bar drop brackets
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Stainless steel braided brake lines
Brake line brackets
Bumpstop spacers
Hardware
REAR
Fabricated anti-wrap lift blocks
Brake line brackets
U-bolts
Hardware
SHOCKS
(4) Shocks
Tires & Wheels
37x12.50R17 17x9 8x170 +0 -
37x12.50R17 17x9 8x170 +1 -
37x12.50R18 18x9 8x170 -12 -
37x12.50R18 18x9 8x170 +0 -
37x12.50R18 18x9 8x170 +1 -
37x12.50R20 20x9 8x170 -12 -
37x12.50R20 20x9 8x170 +0 -
37x12.50R20 20x9 8x170 +1 -
37x12.50R20 20x10 8x170 -25 -
37x12.50R20 20x10 8x170 -24 -
37x12.50R20 20x10 8x170 -19 -
37x12.50R20 20x10 8x170 -18 -
35x12.50R20 20x12 8x170 -44 Minor Trimming
37x12.50R22 22x10 8x170 -25 -
37x12.50R22 22x10 8x170 -24 -
37x12.50R22 22x10 8x170 -19 -
37x12.50R22 22x10 8x170 -18 -
35x12.50R22 22x12 8x170 -44 Minor Trimming
Details
- 53140
- 53140
- 840269917776
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
