59040 | Rough Country 8 Inch Lift Kit With 4-Link & Rear Leaf Springs For Ford F-250/F-350 Super Duty 4WD | 2005-2007 | Diesel, M1 Shocks
8 Inch Lift Kit With 4-Link & Rear Leaf Springs | Ford F-250/F-350 Super Duty 4WD | 2005-2007 | Does NOT Fit Gas & Dually Models | Diesel, M1 Shocks
Description
Compliment your 05-07 Ford F-250/350's aggressive, good looks with Rough Country's 4-Link Suspension Lift System. Rough Country's 8-inch Lift Kit was engineered to retain the F-250/350's impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with a mean profile and balanced on and off-road ride quality.
When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 4-Link Suspension Lift System features a set of ultra-durable radius arm drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.
This all-inclusive kit also features an adjustable lower control arm at the axle to allow caster adjustment as well as a track bar relocation bracket and a drop pitman arm. A full set of N3 Shocks provide a truly balanced ride quality for on and off-road use - perfect for daily drivers. This kit also ships with a set of durable, lifted coil springs and brake line relocation brackets.
This innovative kit design features a 100% bolt-on installation process that is lightning-fast compared to other kits this size. Save time and money with no need for cutting, drilling, or other complicated procedures. Rough Country's Rough Country's 4-Link Suspension Lift System is backed by our Lifetime Replacement Warranty.
FEATURES
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
OPTIONAL PREMIUM N3 SHOCKS
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
OPTIONAL VERTEX SHOCKS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Does NOT fit gas engine models.
- Does NOT fit dually models.
SPECS
- Est. Install Time 8 - 10 hours
Vehicle Applications
2005 - 2007 Ford F-350 Super Duty
NOTES - IMPORTANT
Does NOT fit gas engine models.
Does NOT fit dually models.

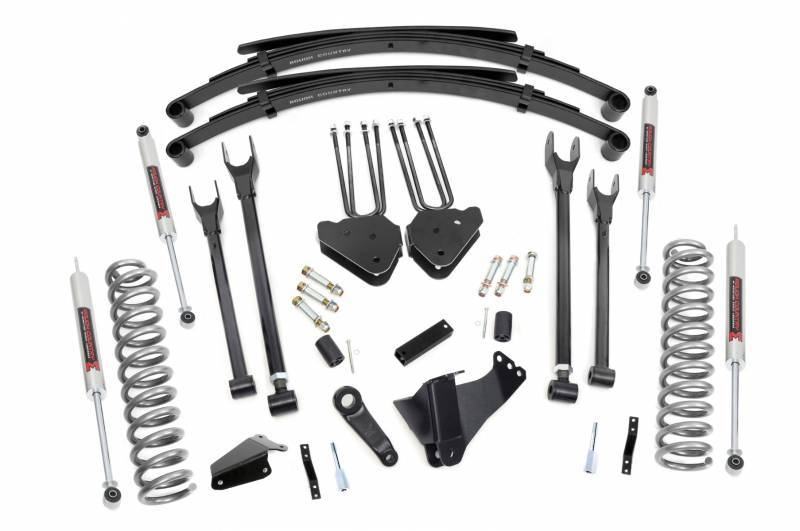

Components
Lifted coil springs
Fixed upper control arms
Adjustable lower control arms
Radius arm drop brackets
Sway-bar link extensions
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware
REAR
Lifted leaf springs
Carrier bearing drop bracket
U-bolts
Hardware
SHOCKS
(4) Vertex Reservoir Shocks
Tires & Wheels
37x13.50R18 18x9 8x170 -12 -
37x12.50R18 18x10 8x170 -25 -
37x12.50R18 18x10 8x170 -24 -
37x12.50R18 18x10 8x170 -19 -
37x12.50R18 18x10 8x170 -18 -
37x13.50R20 20x9 8x170 -12 -
37x12.50R20 20x10 8x170 -25 -
37x12.50R20 20x10 8x170 -24 -
37x12.50R20 20x10 8x170 -19 -
37x12.50R20 20x10 8x170 -18 -
37x12.50R20 20x12 8x170 -44 Minor Trimming
37x12.50R22 22x10 8x170 -25 -
37x12.50R22 22x10 8x170 -24 -
37x12.50R22 22x10 8x170 -19 -
37x12.50R22 22x10 8x170 -18 -
37x12.50R22 22x12 8x170 -44 Minor Trimming
Details
- 59040
- 59040
- 840269918247
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- $150.00
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
