59140 | Rough Country 8 Inch Lift Kit With 4-Link & Rear Blocks For Ford F-250/F-350 Super Duty 4WD | 2005-2007 | Diesel, M1 Shocks

8 Inch Lift Kit With 4-Link & Rear Blocks For Ford F-250/F-350 Super Duty 4WD | 2005-2007 | Does NOT Fit Gas & Dully Models | Diesel, M1 Shocks

59140
Pricing: $2,290.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Compliment your 05-07 Ford F-250/350's aggressive, good looks with Rough Country's 4-Link Suspension Lift System. Rough Country's 8-inch Lift Kit was engineered to retain the F-250/350's impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with a mean profile and balanced on and off-road ride quality.

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 4-Link Suspension Lift System features a set of ultra-durable radius arm drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.

This all-inclusive kit also features an adjustable lower control arm at the axle to allow caster adjustment as well as a track bar relocation bracket and a drop pitman arm. A full set of N3 Shocks provide a truly balanced ride quality for on and off-road use - perfect for daily drivers. This kit also ships with a set of durable, lifted coil springs and brake line relocation brackets.

This innovative kit design features a 100% bolt-on installation process that is lightning-fast compared to other kits this size. Save time and money with no need for cutting, drilling, or other complicated procedures. Rough Country's Rough Country's 4-Link Suspension Lift System is backed by our Lifetime Replacement Warranty.

FEATURES

  • Easy bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problems.

OPTIONAL PREMIUM N3 SHOCKS

  • 10-Stage Variable Valving
  • High-Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Does NOT fit gas engine models.
  • Does NOT fit dually models.

Vehicle Applications

2005 - 2007 Ford F-250 Super Duty
2005 - 2007 Ford F-350 Super Duty

NOTES - IMPORTANT
Does NOT fit gas engine models.
Does NOT fit dually models.

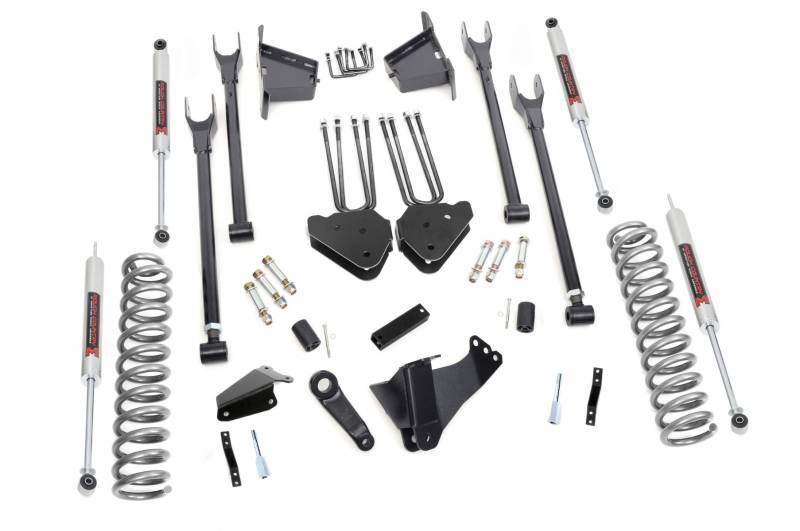

Components

FRONT
Lifted coil springs
Fixed upper control arms
Adjustable lower control arms
Radius arm drop brackets
Sway-bar link extensions
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Brake line brackets
Bumpstop spacers
Hardware

REAR
8" fabricated anti-wrap lift blocks
Carrier bearing drop bracket
U-bolts
Hardware

SHOCKS
(4) Shocks

Tires & Wheels

37x13.50R17 17x9 8x170 -12 -
37x13.50R17 17x9 8x170 +0 -
37x13.50R17 17x9 8x170 +1 -
37x13.50R18 18x9 8x170 -12 -
37x13.50R18 18x9 8x170 +0 -
37x13.50R18 18x9 8x170 +1 -
37x13.50R20 20x9 8x170 -12 -
37x13.50R20 20x9 8x170 +0 -
37x13.50R20 20x9 8x170 +1 -
37x12.50R20 20x10 8x170 -25 -
37x12.50R20 20x10 8x170 -24 -
37x12.50R20 20x10 8x170 -19 -
37x12.50R20 20x10 8x170 -18 -
37x12.50R20 20x12 8x170 -44 Trimming Required
37x12.50R22 22x10 8x170 -25 -
37x12.50R22 22x10 8x170 -24 -
37x12.50R22 22x10 8x170 -19 -
37x12.50R22 22x10 8x170 -18 -
37x12.50R22 22x12 8x170 -44 Trimming Required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
