59240 | Rough Country 8 Inch Lift Kit With 4-Link & Rear Blocks For Ford F-250/F-350 Super Duty 4WD | 2008-2010 | Diesel, M1 Shocks

8 Inch Lift Kit With 4-Link & Rear Blocks For Ford F-250/F-350 Super Duty 4WD | 2008-2010 | Does NOT Fit Gas & Dully Models | Diesel, M1 Shocks

59240
Pricing: $2,430.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Compliment your 08-10 Ford F-250/350's aggressive, good looks with Rough Country's 4-Link Suspension Lift System. Rough Country's 8-inch Lift Kit was engineered to retain the F-250/350's impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with a mean profile and balanced on and off-road ride quality.

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 4-Link Suspension Lift System features a set of ultra-durable radius arm drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle.

This all-inclusive kit also features an adjustable lower control arm at the axle to allow caster adjustment as well as a track bar relocation bracket and a drop pitman arm. A full set of N3 Shocks provide a truly balanced ride quality for on and off-road use - perfect for daily drivers. This kit also ships with a set of durable, lifted coil springs and brake line relocation brackets.

This innovative kit design features a 100% bolt-on installation process that is lightning-fast compared to other kits this size. Save time and money with no need for cutting, drilling, or other complicated procedures. Rough Country's Rough Country's 4-Link Suspension Lift System is backed by our Lifetime Replacement Warranty.

FEATURES

  • Easy bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problems.

OPTIONAL PREMIUM N3 SHOCKS

  • 10-Stage Variable Valving
  • High-Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • Metallic Silver Paint
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Does NOT fit dually models.
  • Does NOT fit gas engine models.
  • If vehicle is equipped with rear overload leafs, they will need to be removed.

Vehicle Applications

2005 - 2007 Ford F-250 Super Duty
2005 - 2007 Ford F-350 Super Duty

NOTES - IMPORTANT
Does NOT fit dually models.
Does NOT fit gas engine models.
If vehicle is equipped with rear overload leafs, they will need to be removed.

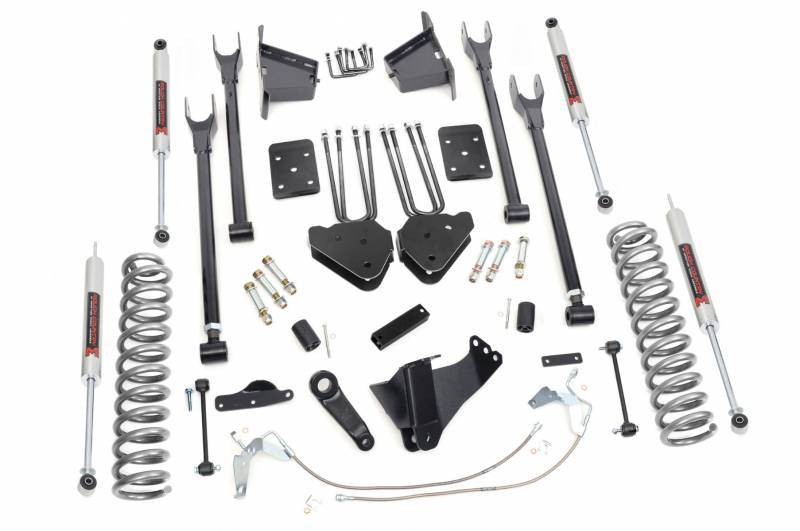

Components

FRONT
Lifted coil springs
Fixed upper control arms
Adjustable lower control arms
Radius arm drop brackets
Extended sway-bar links
Track bar drop bracket
Stabilizer relocation brackets
Pitman arm
Stainless steel braided brake lines
Bumpstop spacers
Hardware

REAR
8" fabricated anti-wrap lift blocks
Carrier bearing drop bracket
U-bolts
Hardware

SHOCKS
(4) Shocks

Tires & Wheels

37x13.50R17 17x9 8x170 -12 -
37x13.50R17 17x9 8x170 +0 -
37x13.50R17 17x9 8x170 +1 -
37x13.50R18 18x9 8x170 -12 -
37x13.50R18 18x9 8x170 +0 -
37x13.50R18 18x9 8x170 +1 -
37x13.50R20 20x9 8x170 -12 -
37x13.50R20 20x9 8x170 +0 -
37x13.50R20 20x9 8x170 +1 -
37x12.50R20 20x10 8x170 -25 -
37x12.50R20 20x10 8x170 -24 -
37x12.50R20 20x10 8x170 -19 -
37x12.50R20 20x10 8x170 -18 -
37x12.50R20 20x12 8x170 -44 Trimming Required
37x12.50R22 22x10 8x170 -25 -
37x12.50R22 22x10 8x170 -24 -
37x12.50R22 22x10 8x170 -19 -
37x12.50R22 22x10 8x170 -18 -
37x12.50R22 22x12 8x170 -44 Trimming Required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
