25340 | Rough Country 7.5 Inch Lift Kit For Chevrolet Silverado / GMC Sierra 2500 HD/3500 HD | 2011-2019 | M1 Shocks
7.5 Inch Lift Kit | Chevrolet Silverado / GMC Sierra 2500 HD/3500 HD | 2011-2019 | Does NOT Fit Dually, Magnetic Ride Models & Work With Factory Wheels | M1 Shocks
Description
Right off the lot, The GM 2500 HD has an impressive stance and a killer looks, inspiring Rough Country to build a kit that would add crucial enhancements while taking nothing away from this sharp-looking, new model truck. The 7.5" N3 Suspension Lift for GM 2500 HD features a Non-Torsion Drop Design for better clearance and handling while maintaining proper angles in a "clean and tucked away" fashion. This kit also features Heavy Duty components worthy of the HD badge; With 1/4" thick steel cross-members, 1/2" thick NTD Brackets, and a durable, thick Skid Plate - all laser-cut and powder coated in our "Hammer Black" color to match the factory components. Installation requires no drilling or modifying the differential, meaning no "invasive" mods to your new toy.
Our innovative HD lift doesn't just look like it came from the showroom floor, it drives like it did too. This kit doesn't widen the stock track width, and the Non-Torsion Drop design keeps everything at optimum angles, leaving that factory feel to handling corners and turns. A full set of Nitrogen charged N3 Shock Absorbers offer 10-Stage velocity-sensitive valving, and are custom valved for each model kit we offer - meaning you get a set of shocks designed to preserve your factory ride quality.
FEATURES
- Maintains factory ride quality.
- Maintains the stock track width.
- Torsion bars stay in the factory location.
- Unmatched ground clearance.
- Axles maintain factory position and angle.
- No drilling or modifying of the differential.
- No drivetrain or exhaust modifications are required.
- Includes our latest application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
OPTIONAL VERTEX SHOCKS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-Charged
- Massive 2.5in Piston
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Incredible ride quality & performance
- Monotube design
- Nitrogen-charged
- 46mm high-flow piston
- Mounts inverted
- 36kN Tensile Strength
- 3-year Manufacturer's Warranty
OPTIONAL N3 SHOCKS
- 10-Stage Variable Valving
- High-Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- 3-year Limited Warranty
NOTES - IMPORTANT
- Does NOT fit dually models.
- Does NOT fit models with Magnetic Ride Control.
- Does NOT work with factory wheels.
- If equipped with factory 17" wheels - new aftermarket wheels must be 17" or larger to clear brake callipers/rotor.
- Gas models may require modification to the exhaust for driveshaft clearance.
- Models equipped with factory rear overload springs require a longer u-bolt kit SKU: 7664.
SPECS
- Est. Install Time 8 - 10 hours
Vehicle Applications
2011 - 2019 Chevrolet Silverado 3500 HD
2011 - 2019 GMC Sierra 2500 HD
2011 - 2019 GMC Sierra 3500 HD
NOTES - IMPORTANT
Does NOT fit dually models.
Does NOT fit models with Magnetic Ride Control.
Does NOT work with factory wheels.
If equipped with factory 17" wheels - new aftermarket wheels must be 17" or larger to clear brake calipers/rotor.
Gas models may require modification to the exhaust for driveshaft clearance Models equipped with factory rear overload springs require longer u-bolt kit (7664) - available below.

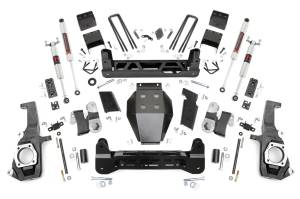

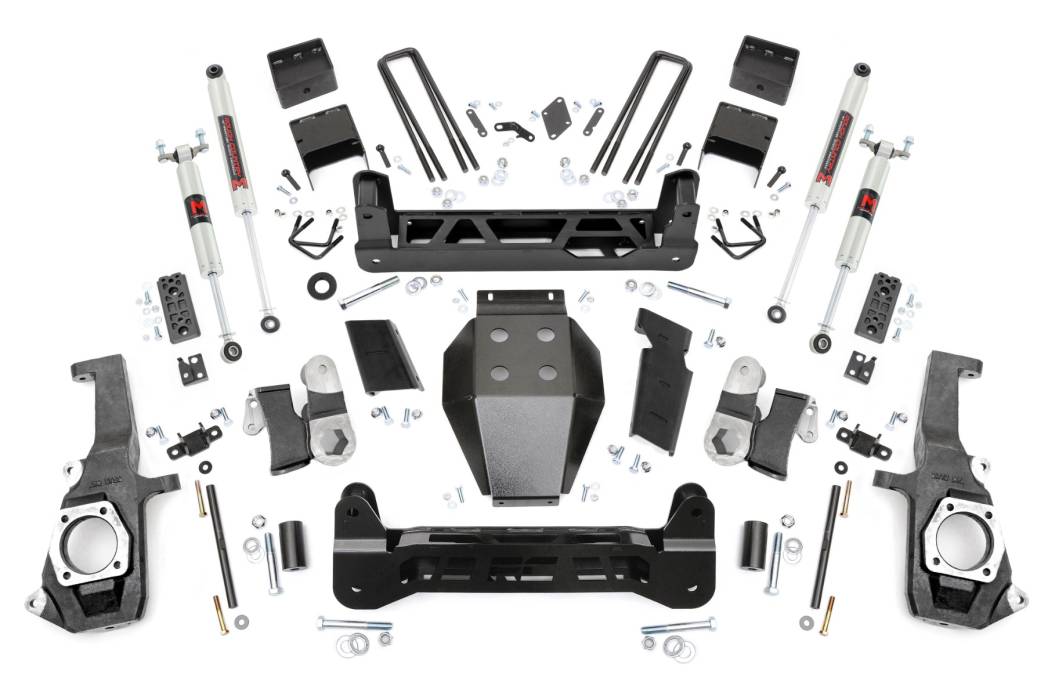

Components
Lifted knuckles
Front crossmember
Rear crossmember
Differential drop brackets
Differential skid plate
Non-torsion bar drop brackets
Sway-bar link extensions
Sway-bar brackets
Brake line relocation bracket
Hardware
REAR
Lifted blocks
U-bolts
Bump-stop brackets
Brake line brackets
E-brake line bracket
Hardware
SHOCKS
(4) Shocks
Tires & Wheels
35x12.50R17 17x8.5 8x180 +1 -
35x12.50R17 17x9 8x180 +0 -
35x12.50R17 17x9 8x180 +1 -
35x12.50R18 18x8.5 8x180 +0 -
35x12.50R18 18x8.5 8x180 +1 -
35x12.50R18 18x9 8x180 -12 -
35x12.50R18 18x9 8x180 +0 -
35x12.50R18 18x9 8x180 +1 -
35x12.50R20 20x9 8x180 -12 -
35x12.50R20 20x9 8x180 +0 -
35x12.50R20 20x9 8x180 +1 -
35x12.50R20 20x10 8x180 -25 -
35x12.50R20 20x10 8x180 -24 -
35x12.50R20 20x10 8x180 -19 -
35x12.50R20 20x10 8x180 -18 -
35x12.50R20 20x12 8x180 -44 Trimming Required
35x12.50R22 22x10 8x180 -25 -
35x12.50R22 22x10 8x180 -24 -
35x12.50R22 22x10 8x180 -19 -
35x12.50R22 22x10 8x180 -18 -
35x12.50R22 22x12 8x180 -44 Trimming Required
Does NOT fit factory wheels
Details
- 25340
- 25340
- 840269917134
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
- This item ships in its own box.
