26840 | Rough Country 3.5 Inch Lift Kit For Chevrolet / GMC 1500 2WD | 2007-2013 | Front M1 Struts, Rear M1 Shocks
3.5 Inch Lift Kit | Chevrolet / GMC 1500 2WD | 2007-2013 | Does NOT Fit AWD, 2007 Classic, Cast Aluminum/Stamped Steel Controls Arms Models | Front M1 Struts, Rear M1 Shocks
Description
Introducing the redesigned GM 3.5-inch Suspension Lift by Rough Country Suspension Systems with some exciting upgrades to make your off-road experience even better. These updated kits now feature our critically acclaimed N3 shock absorbers and fabricated rear blocks.
Our Nitrogen charged N3 Shocks offer the best in balanced performance for on and off-road use, featuring a 10-stage velocity-sensitive valving custom tuned for this specific application. That means these shocks are specifically valved for use with this specific vehicle and lift combo, giving you unparalleled performance for any driving situation.
Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.
FEATURES
- Easy bolt-on installation.
- Increased ground clearance.
- Can be returned to stock height!
- Levels the front with the rear of the vehicle
- No need to disassemble your struts to install
- Rear fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
- Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
OPTIONAL N3 LOADED STRUTS
- Includes pre-loaded coil for no-fuss installation
- Maintains smooth, factory-like ride
- Application specific velocity sensitive valving
- Structurally engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Requires cutting and grinding
- Requires minor trimming to the factory bumpstops.
- New lift block replaces the factory equipped block.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.
- Does NOT fit AWD models.
- Does NOT fit 2007 "Classic" models.
- Does NOT fit models with stock Cast Aluminum or Stamped Steel control arms.
- Retain your factory wheels with our 0.25" wheel spacers (#1065).
SPECS
- Est. Install Time 4-5 hours
Vehicle Applications
2007 - 2013 GMC Sierra 1500
NOTES - IMPORTANT
Requires minor trimming to the factory bumpstops.
Retain your factory wheels with our 0.25" wheel spacers (#1065).
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Does NOT fit 2007 "Classic" models.
Does NOT fit models with stock Cast Aluminum or Stamped Steel control arms.

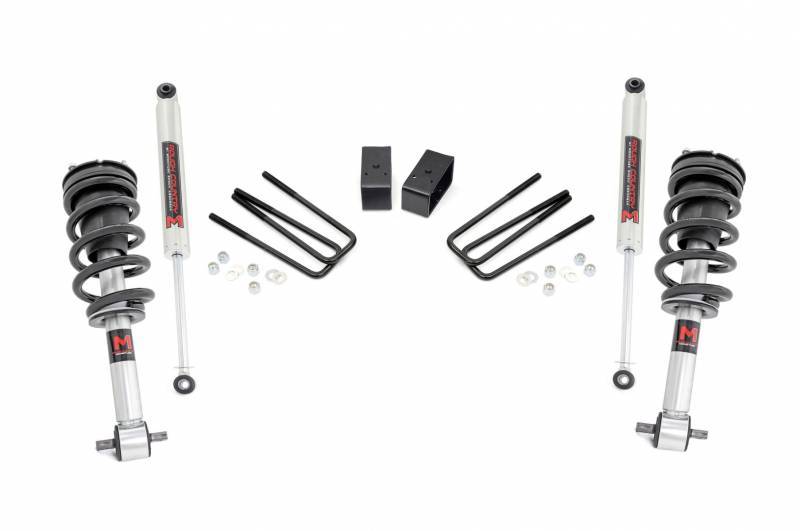

Components
Upper strut spacers
Hardware
REAR
1.5in lift blocks
U-bolts
Hardware
SHOCKS
(2) Shocks
Tires & Wheels
285/65R18 Factory 18 6x5.5 - -
285/55R20 Factory 20 6x5.5 - -
285/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +1 -
285/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +12 -
285/70R17 17x9 6x5.5 +18 -
285/65R18 18x8.5 6x5.5 +0 -
285/65R18 18x8.5 6x5.5 +1 -
285/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +12 -
285/65R18 18x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +12 -
285/55R20 20x9 6x5.5 +18 -
Details
- 26840
- 26840
- 840269910715
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 77.8 lbs.
- W14.0000” x H8.0000” x L30.0000”
- Free Ground Shipping | Exclusions Apply*
