66940 | Rough Country 3.25 Inch Lift Kit For Jeep Wrangler JK Unlimited | 2007-2018 | M1 Shocks

3.25 Inch Lift Kit For Jeep Wrangler JK Unlimited | 2007-2018 | Does NOT Fit 2 Door Models | M1 Shocks

66940
Pricing: $824.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Who says your daily driver and your weekend warrior can't be the same vehicle? The 3.25-inch N3-Series Kit for Jeep JK was engineered by Rough Country's Research and Development Team to give the perfect blend of off-road performance and smooth highway ride. A set of application tuned, lifted coil springs are included in this kit along with a set of rear sway bar links, coil spring spacers and a rear track bar bracket!

Improve your on and off-road ride quality with Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.

FEATURES

  • Easy bolt-on installation.
  • Increased ground clearance.
  • Clears up to 35" tires.
  • Factory tuned coil springs are based on the stock spring rate.

OPTIONAL N3 SHOCKS

  • 10-Stage Variable Valving
  • High Pressure Nitrogen Charged
  • 35mm Piston
  • Military Spec. Fluid Rated To –40° C
  • 36kN Tensile Strength
  • Leak-proof piston seal
  • Spring Loaded Piston Rod Seal
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX SHOCKS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • Does NOT fit 2-door models.
  • If planning on running 35" tires on factory wheels, double-check clearance between the front tire, lower control arm and sway-bar links.
  • 2012-2018 models require exhaust modifications to clear the front driveshaft SKU: 1030.

SPECS

  • Est. Install Time 2-3 hours

Vehicle Applications

2007 - 2018 Jeep Wrangler JK Unlimited

NOTES - IMPORTANT
Does NOT fit 2-door models.
If planning on running 35" tires on factory wheels, double check clearance between the front tire, lower control arm and sway-bar links.
2012-2018 models require exhaust modifications to clear the front driveshaft (#1030)

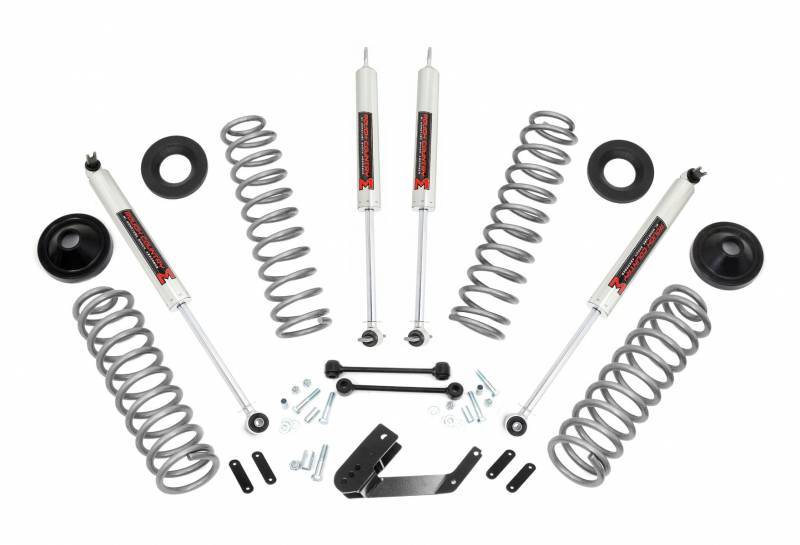

Components

FRONT
Lifted coil springs
0.75" coil spring spacers
Brake line relocation brackets
Hardware

REAR
Lifted coil springs
0.75" coil spring spacers
Track bar drop bracket
Extended sway-bar links
Brake line relocation brackets
Hardware

SHOCKS
(4) Shocks

Tires & Wheels

35x12.50R17 17x8.5 5x5.0 +0 -
35x12.50R17 17x8.5 5x5.0 +1 -
35x12.50R17 17x9 5x5.0 -12 -
35x12.50R17 17x9 5x5.0 -6 -
35x12.50R17 17x9 5x5.0 +0 -
35x12.50R17 17x9 5x5.0 +1 -
35x12.50R18 18x8.5 5x5.0 +0 -
35x12.50R18 18x8.5 5x5.0 +1 -
35x12.50R18 18x9 5x5.0 -12 -
35x12.50R18 18x9 5x5.0 -6 -
35x12.50R18 18x9 5x5.0 +0 -
35x12.50R18 18x9 5x5.0 +1 -
35x12.50R20 20x9 5x5.0 -12 -
295/60R20 20x9 5x5.0 -12 -
35x12.50R20 20x9 5x5.0 -6 -
35x12.50R20 20x9 5x5.0 +0 -
35x12.50R20 20x9 5x5.0 +1 -
295/60R20 20x9 5x5.0 +1 -
35x12.50R20 20x10 5x5.0 -25 -
35x12.50R20 20x10 5x5.0 -24 -
35x12.50R20 20x10 5x5.0 -19 -
35x12.50R20 20x12 5x5.0 -44 Trimming Required
35x12.50R22 22x10 5x5.0 -25 -
35x12.50R22 22x10 5x5.0 -24 -
35x12.50R22 22x10 5x5.0 -19 -
35x12.50R22 22x12 5x5.0 -44 Trimming Required

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 129.0 lbs.
  • W21.0000” x H6.0000” x L35.0000”
  • Free Ground Shipping | Exclusions Apply*
