7055-H | Van Compass Stage 5 System 2 Inch Lift (2019-2022 Sprinter 2500 4WD | Over 9100 LBS)

2019-2022 Mercedes Sprinter 2500 4WD | Over 9100 LBS

7055-H
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $6,188.58
Qty:

Description

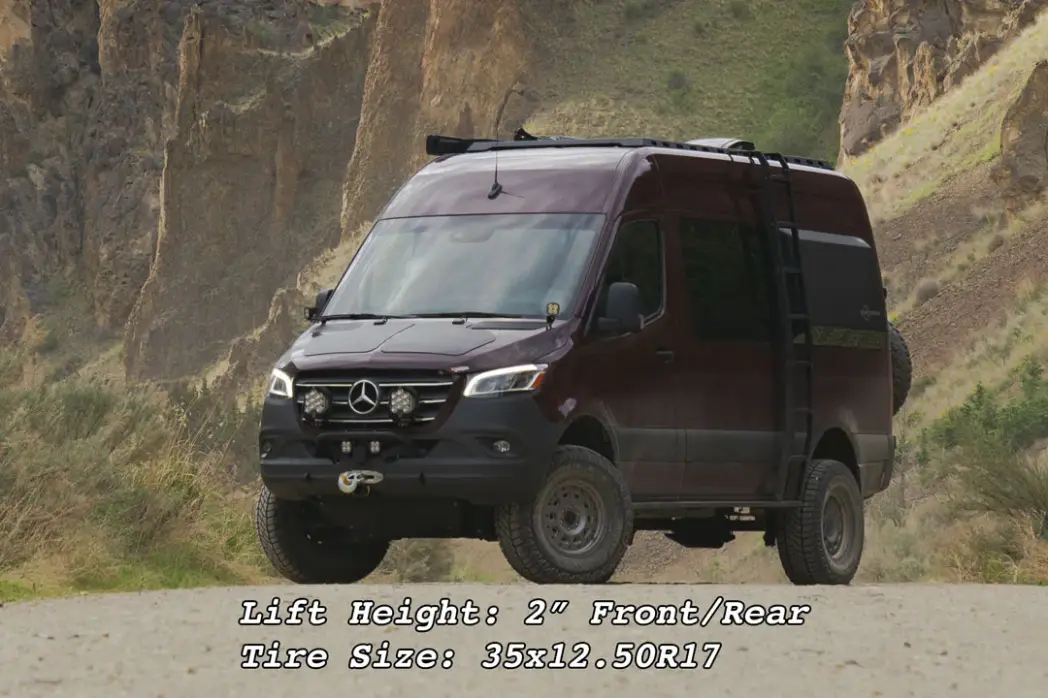

STAGE 5 SYSTEM, 2" LIFT - SPRINTER 4X4 (2019-2022 2500 ONLY) by VAN COMPASS

Stage 5 System Benefits:

  • Aggressive, 2" taller stance allows larger tires to smooth out terrain
  • Increased approach, break over and departure angles
  • VC tuned Falcon 2.1 Monotube Shocks
  • Increased spring rate to counter sag
  • Enhanced cornering stability and reduced wind sway
  • More effective control over large and small bumps
  • Improved handling feel on rough roads and broken pavement
  • Increased bottom out resistance

Intended Use:

  • Adventure and conversion vans that need more ground clearance
  • Passenger vans that want a more aggressive stance

Our Stage 5 kit delivers the pinnacle of performance for your Sprinter 4x4. Building on top of the stability and compliance added from our non-lift systems, the innovative Striker 2" lift kit includes all the necessary components to properly increase the ride height on your Sprinter. By paying careful attention to the shock tuning and preserving the original suspension geometry, we can deliver all the gains a lifted vehicle offers without any penalty to handling, stability or comfort. The added ride height allows room for larger tires, delivering a more aggressive stance, and improving overall ground clearance.

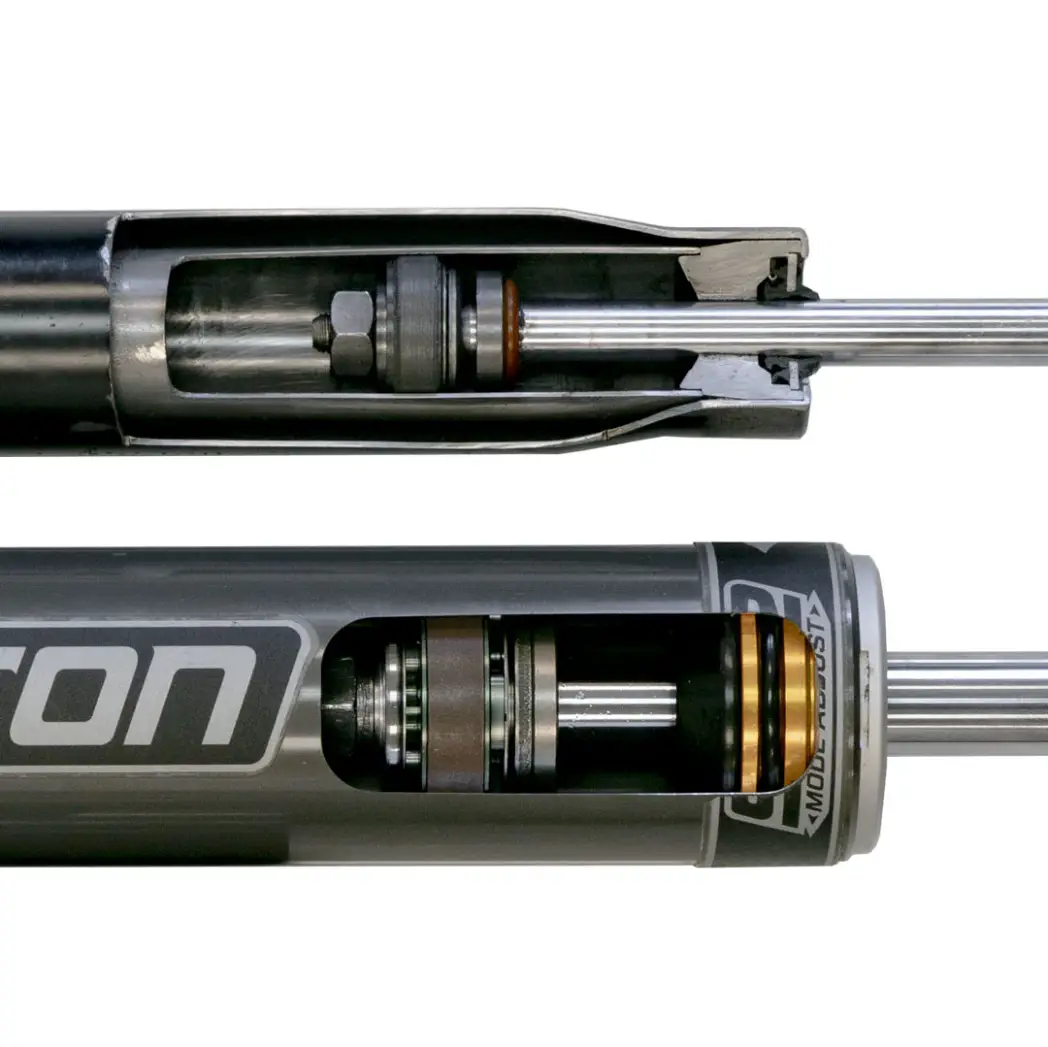

Falcon 2.1 Monotube Shocks dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamic of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts.

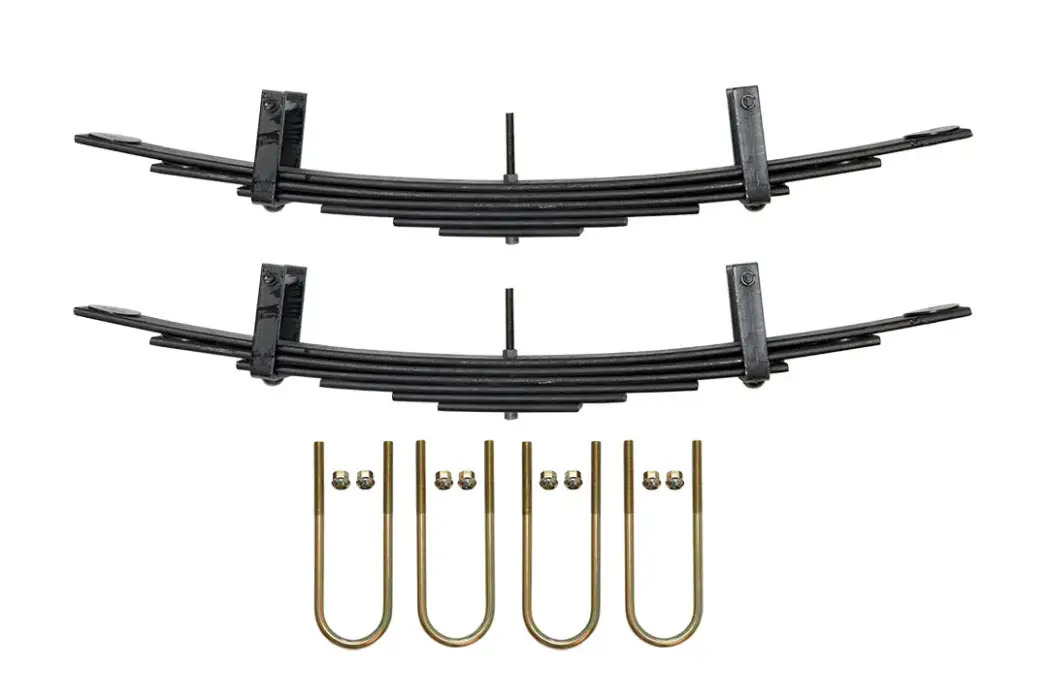

The Mini Leaf Spring pack offers a cost effective way to increase spring rate in the rear of your Sprinter, adds 2" of rear lift and restore lost ride height. Our mini spring is tuned to work perfectly with the OEM spring, maintaining factory wheel position and leaf spring geometry while restoring suspension up-travel on a heavy van. Included U-bolts ensure a quick and easy installation, and glide pads on the tips ensure quiet operation, just like your OEM springs.

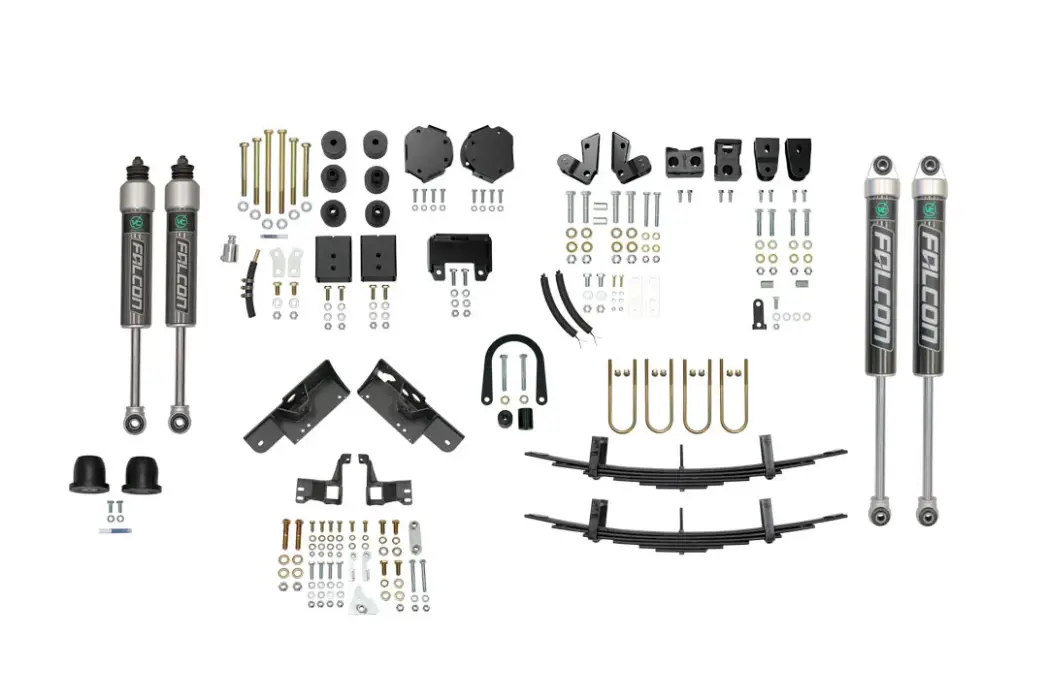

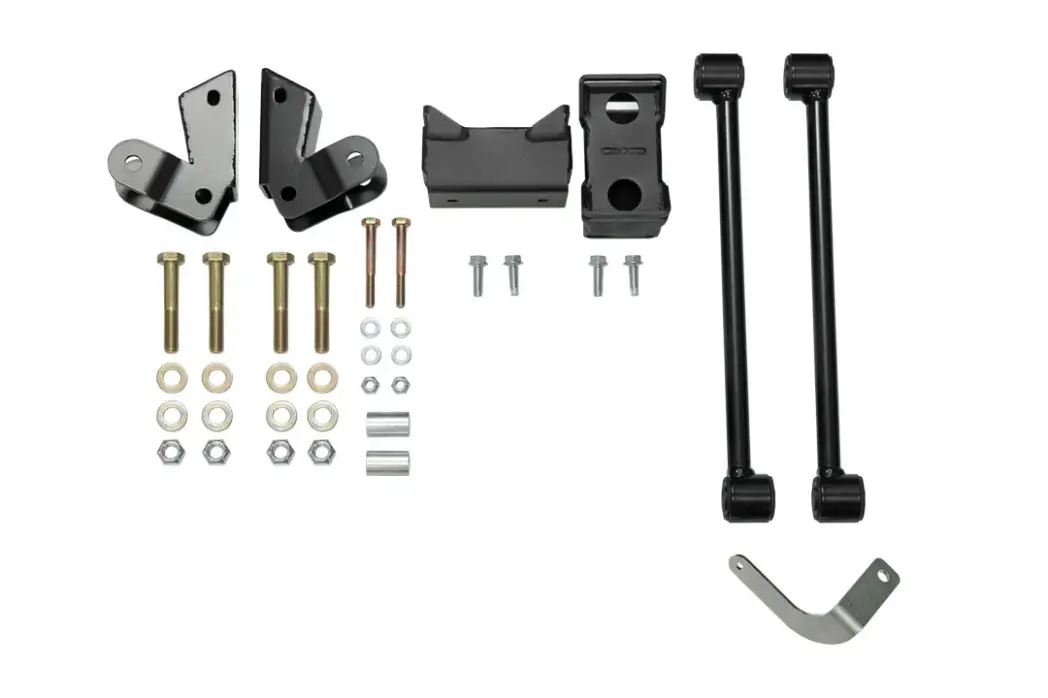

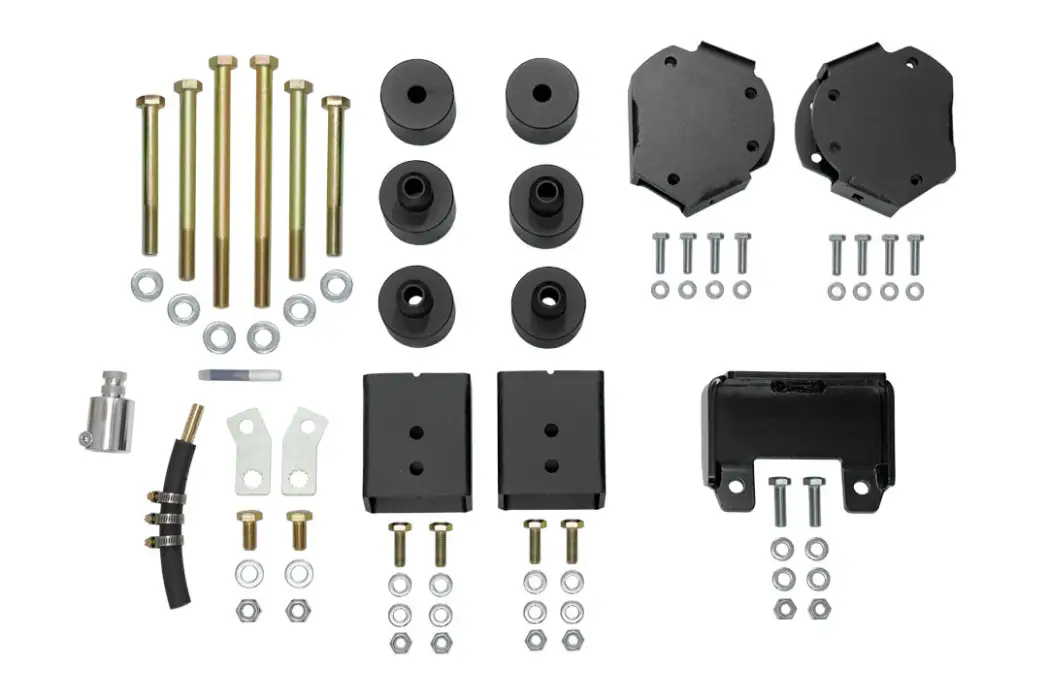

INCLUDED COMPONENTS

FITMENT GUIDE

  • MODEL: SPRINTER 2500
  • YEAR: 2019-2022
  • DRIVE TYPE: 4X4
  • NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
  • NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
  • Recommended Wheel Size: 17" x 8.5", +45mm offset

LABOR TIMES

  • Recommended Shop Labor Time: 17 Hours

Application List

2019-2022 Mercedes Benz Sprinter 2500 4WD | Over 9100 LBS

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 51.0 lbs.
  • W9.0000” x H5.0000” x L32.0000”
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*
