7071-LM | Van Compass Stage 2.3 System (2015-2024 Sprinter 2500 4WD | Under 8500 LBS)
2015-2024 Mercedes Sprinter 2500 4WD | Under 8500 LBS
Description
STAGE 2.3 SYSTEM - SPRINTER AWD, 4X4 (2015-PRESENT 2500 ONLY) by VAN COMPASS
Stage 2.3 System Benefits:
- VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps
- Improved handling feel on rough roads and broken pavement
- Increased bottom out resistance
- 100% bolt on
Intended Use:
- Lightweight adventure vans below GVWR
- Passenger vans
Customers looking for maximum handling flexibility from their vans, need look no further than our Stage 2.3 system. Whether you are looking for maximum stability in highway travel and treacherous wind conditions, or maximum compliance off pavement, we're able to minimize side to side sway and balance out jarring impacts using our deep knowledge of suspension tuning.

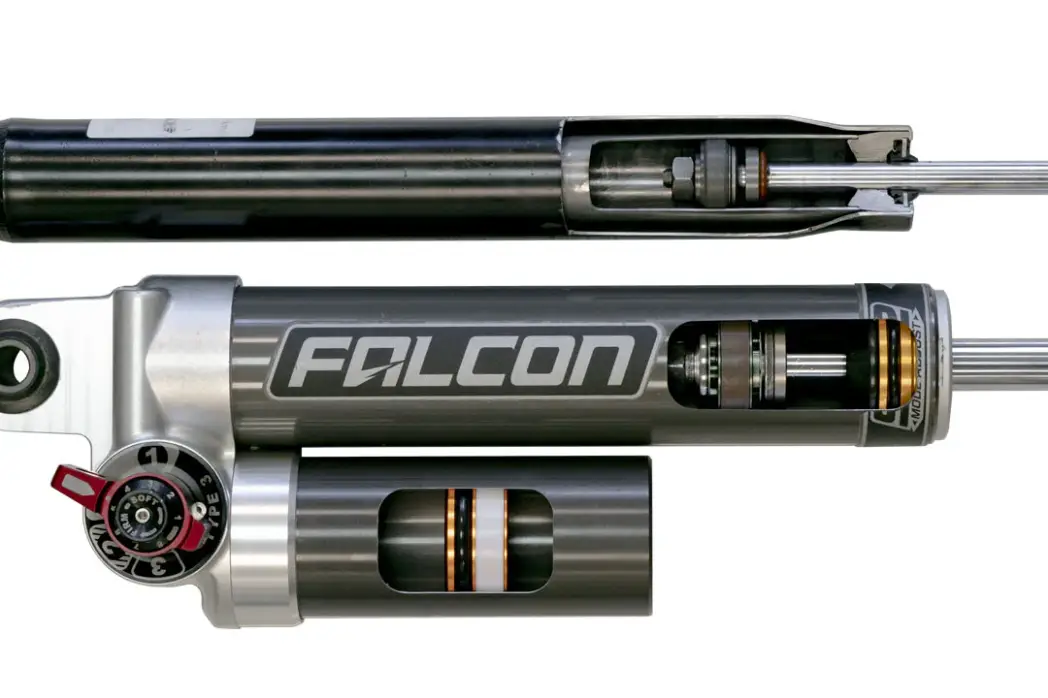

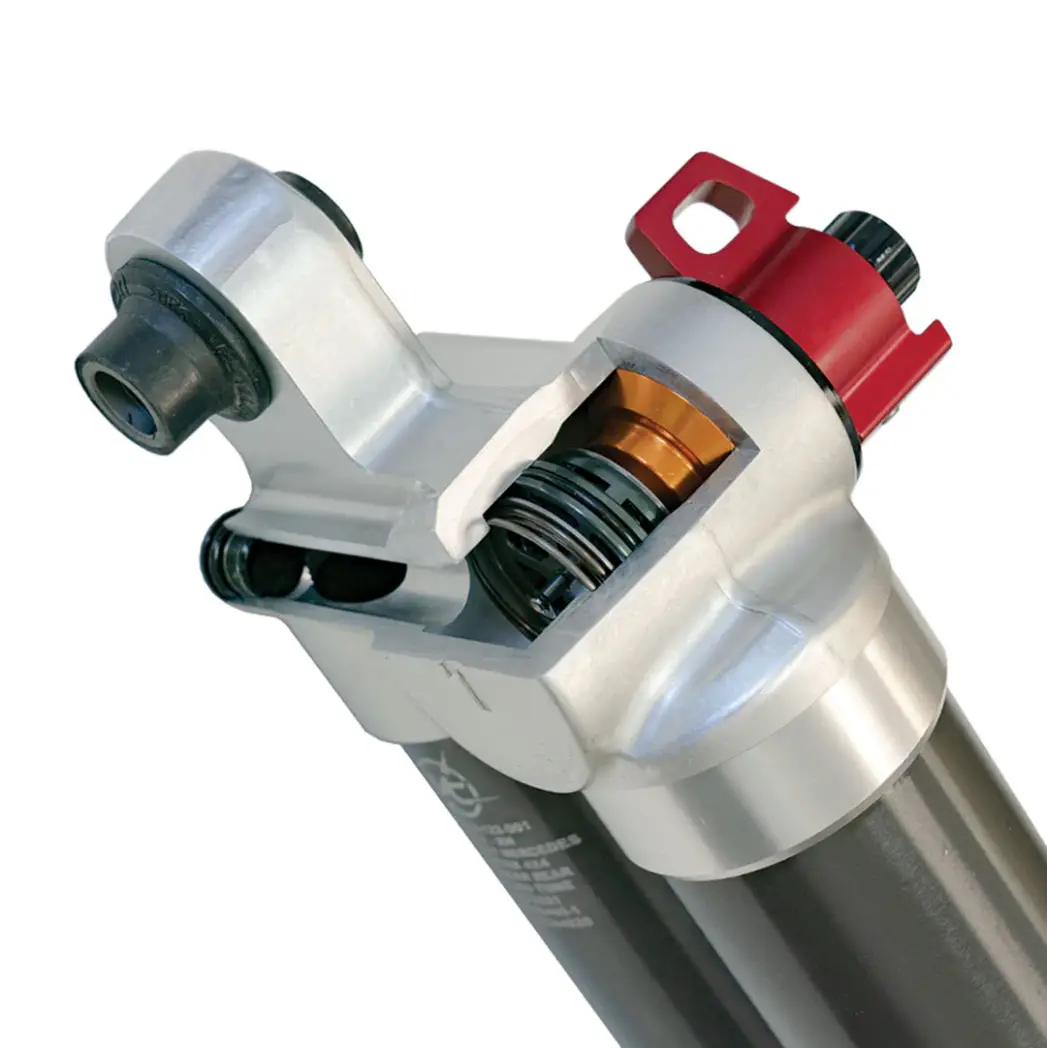

The cornerstone of our Stage 2.3 kit is the 4-corner, adjustable Falcon 3.3 Fast Adjust Shocks with their huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters. A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.
Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.

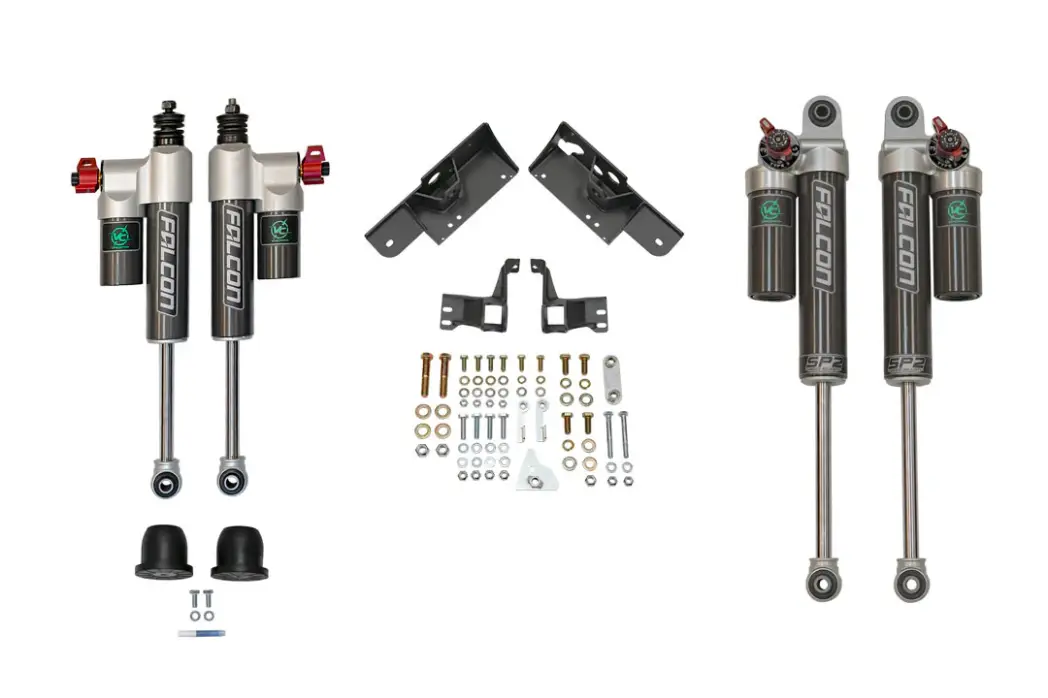

INCLUDED COMPONENTS

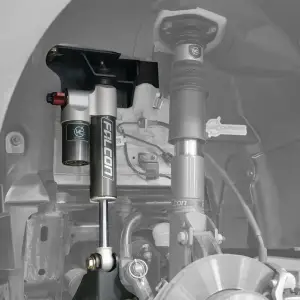

- Falcon 3.3 Fast Adjust Front Shocks with Mounting Brackets
- Front Bump Buddies

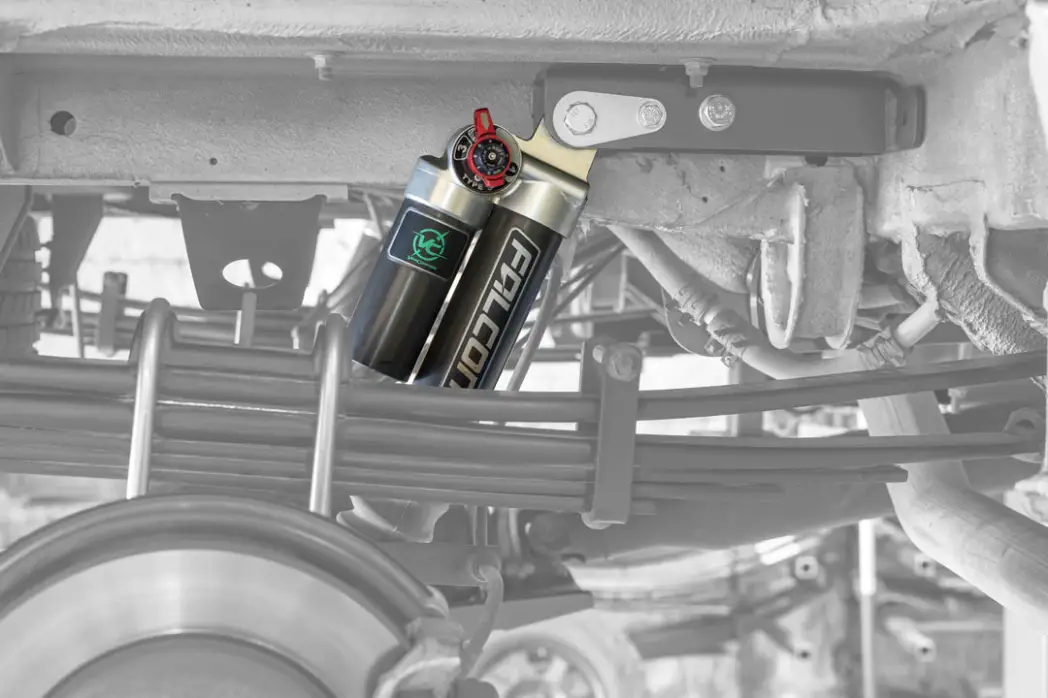

- Falcon 3.3 Fast Adjust Rear Shocks with SP2
- Dust boots for all 4 shocks.
- All necessary hardware and instructions for a simple installation
FITMENT GUIDE
- MODEL: SPRINTER 2500
- YEAR: 2015-PRESENT
- DRIVE TYPE: 4X4 and AWD
- NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
- NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
- Recommended Wheel Size: 17" x 8.5", +45mm offset
- WHEEL FITMENT NOTE: 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.
LABOR TIMES
- Recommended Shop Labor Time: 5 Hours
Application List
Details
- 7071-LM
- 7071-LM
- Van Compass
- New
Categories
Shipping Information
- Item Requires Shipping
- 63.0 lbs.
- W12.0000” x H7.0000” x L32.0000”
- Free Ground Shipping Unavailable | This Product Does Not Qualify*
