4090 | Van Compass Rocker Guards (2015-2022 Sprinter 2500, 3500 2WD/4WD | 170 Inch Wheelsbase ONLY)

2015-2022 Mercedes Sprinter 2500 2WD/4WD | 2015-2022 Mercedes Sprinter 3500 2WD/4WD | 170 inch Wheelbase ONLY

4090
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $4,378.50
Qty:

Description

ROCKER GUARDS - SPRINTER 4X4 (2015-2022 170" WHEELBASE ONLY) by VAN COMPASS

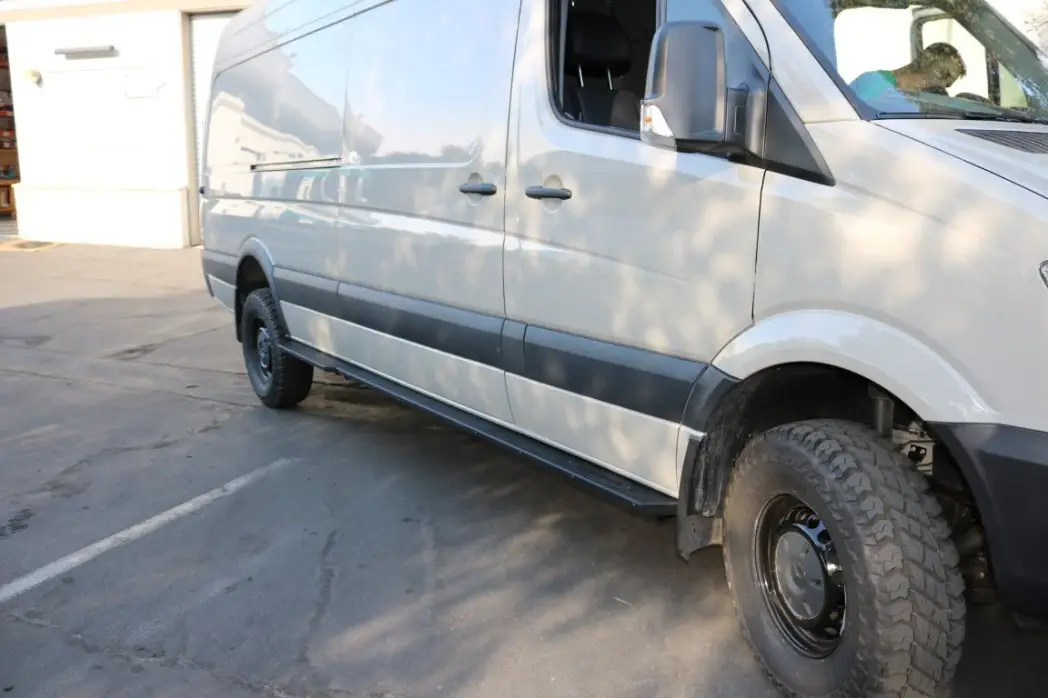

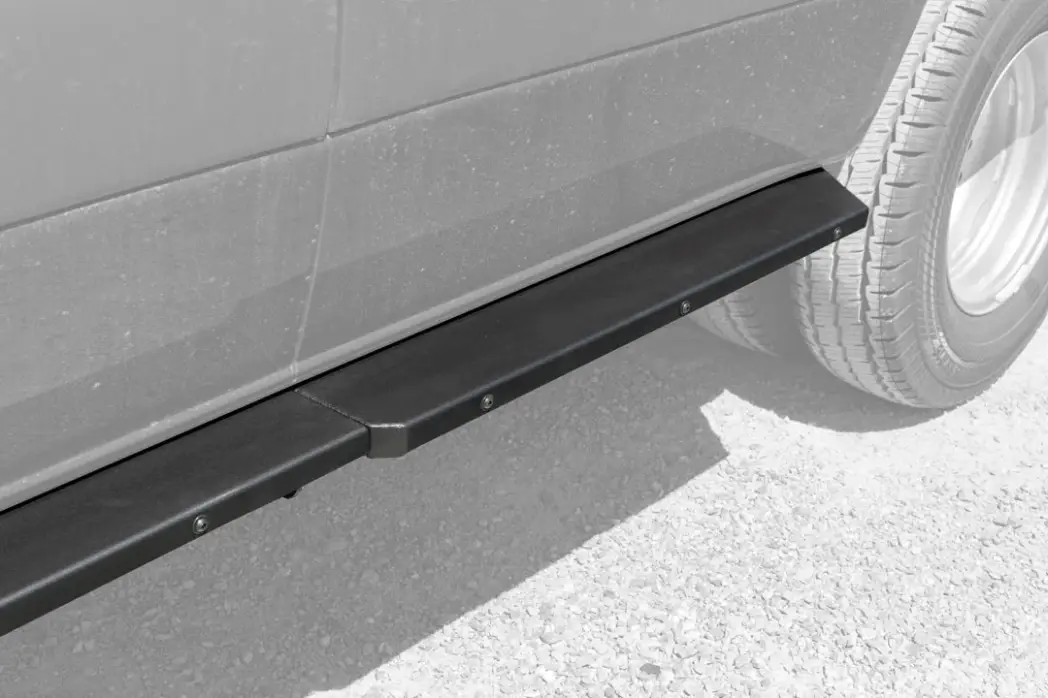

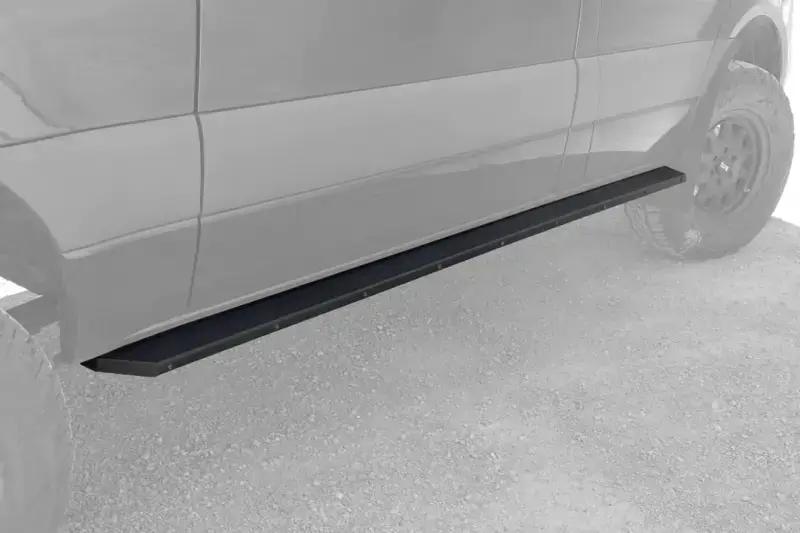

More than just a step! Add functional protection, chassis rigidity and ease of access to your 170" wheelbase 4x4 Sprinter in sleek style with a set of Van Compass Rocker Guards. Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient, and the rear portion features an additional 1" of width for additional protection on tight trails. This robust design offers excellent body protection and adds easy to access vehicle lifting points. Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.

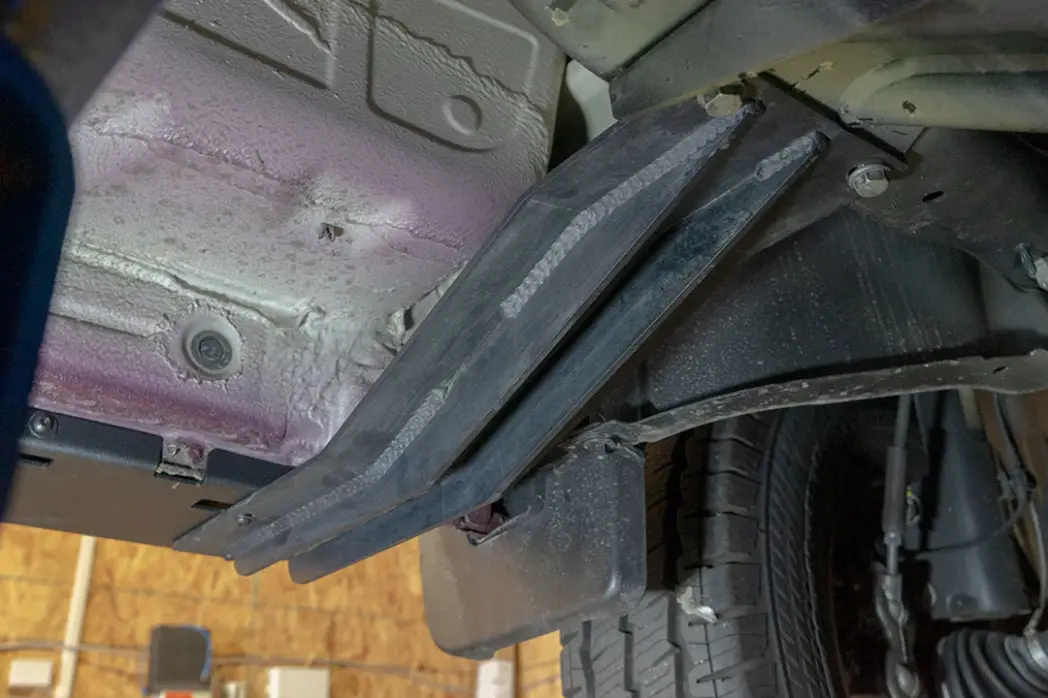

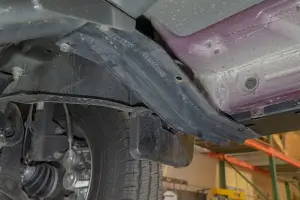

The main step surfaces are constructed from 1/8" steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis. This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation. Now shipping with front subframe mounts for both lifted and non-lifted vans, and 2019+ VS30 compatible!

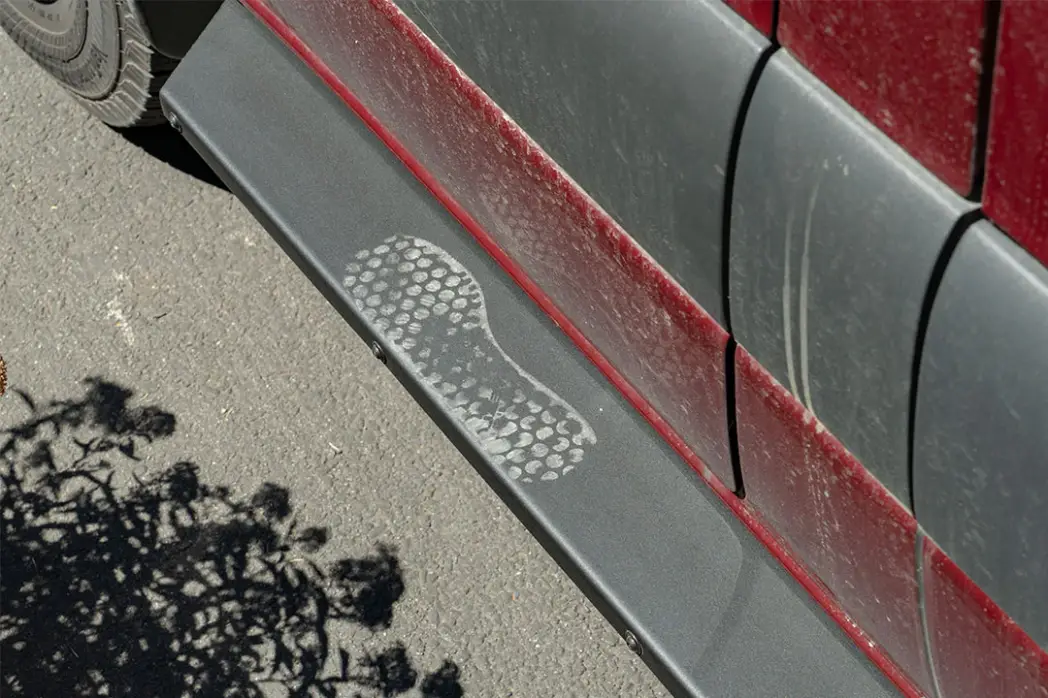

Step Surface Width: 3.5-4" (van body has slight taper at front door sill); 4.375" at rear kick out with doors closed.

** NOT COMPATIBLE with Winnebago Boldt, water tanks are in the way **

*** These ship in a very long crate, non-commercial address may be subject to additional delivery fees. ***

INCLUDED COMPONENTS

  • Rocker Guard step plates, 1/8" Steel, Black Powdercoat

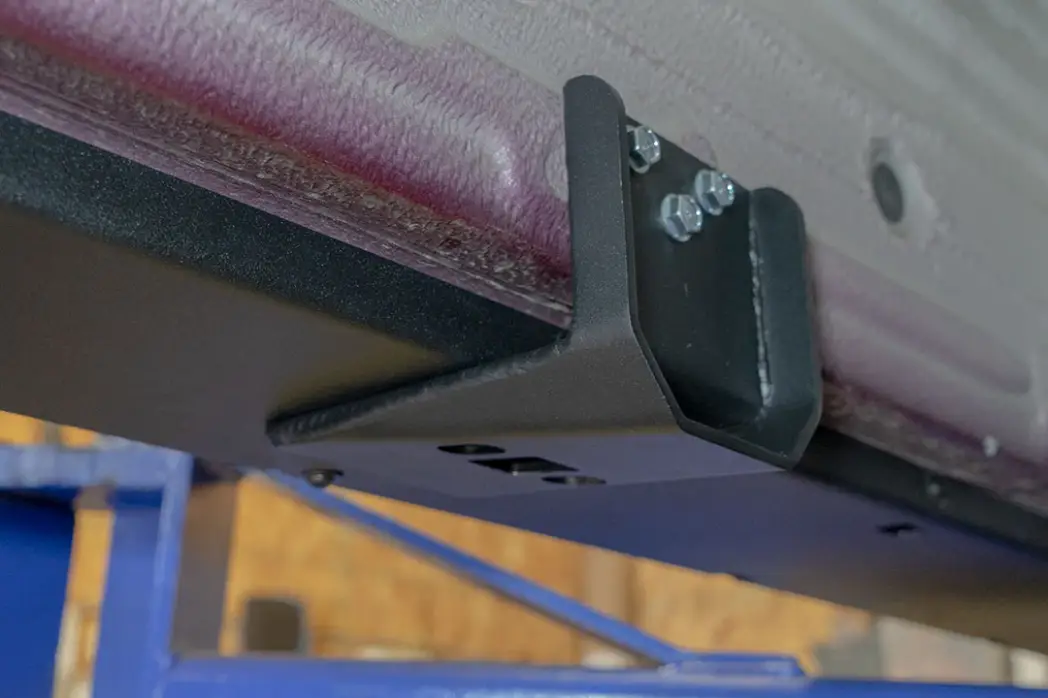

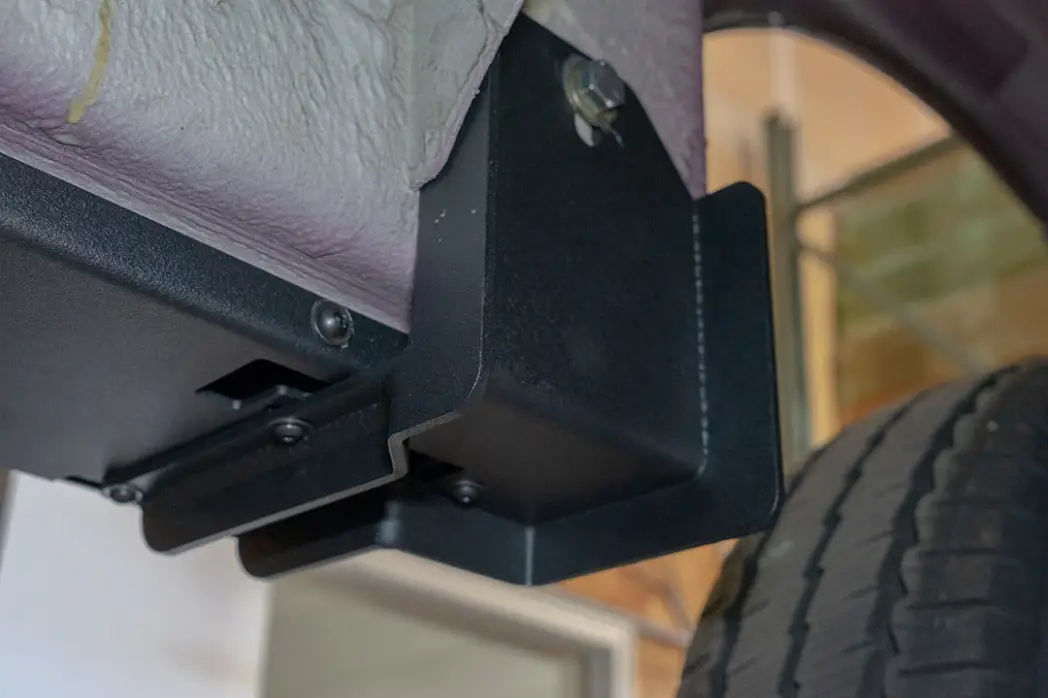

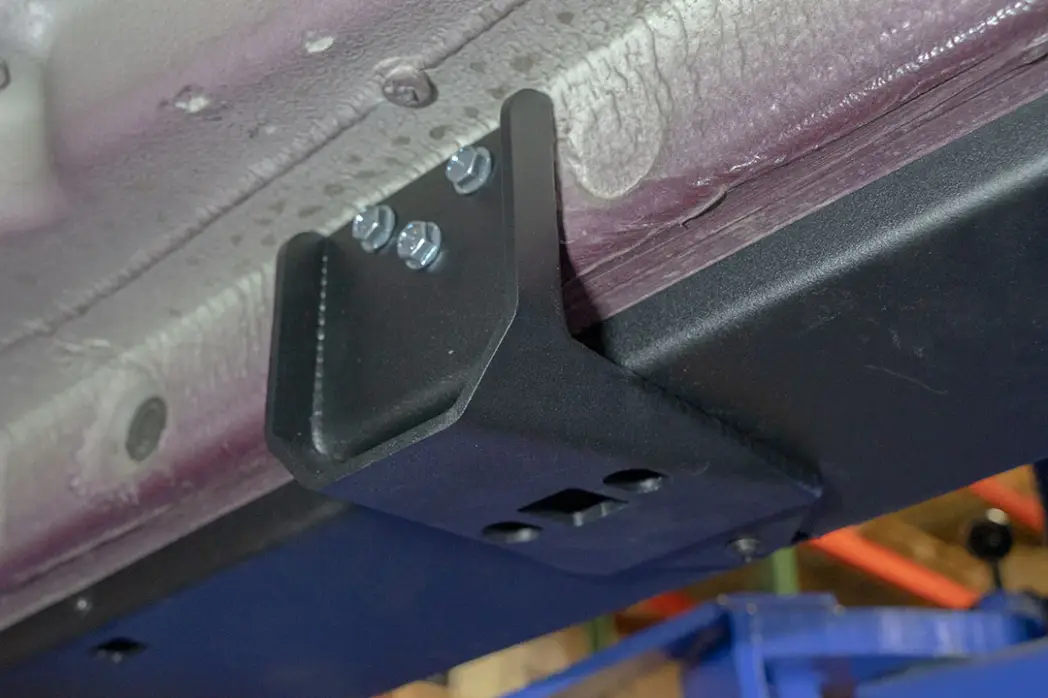

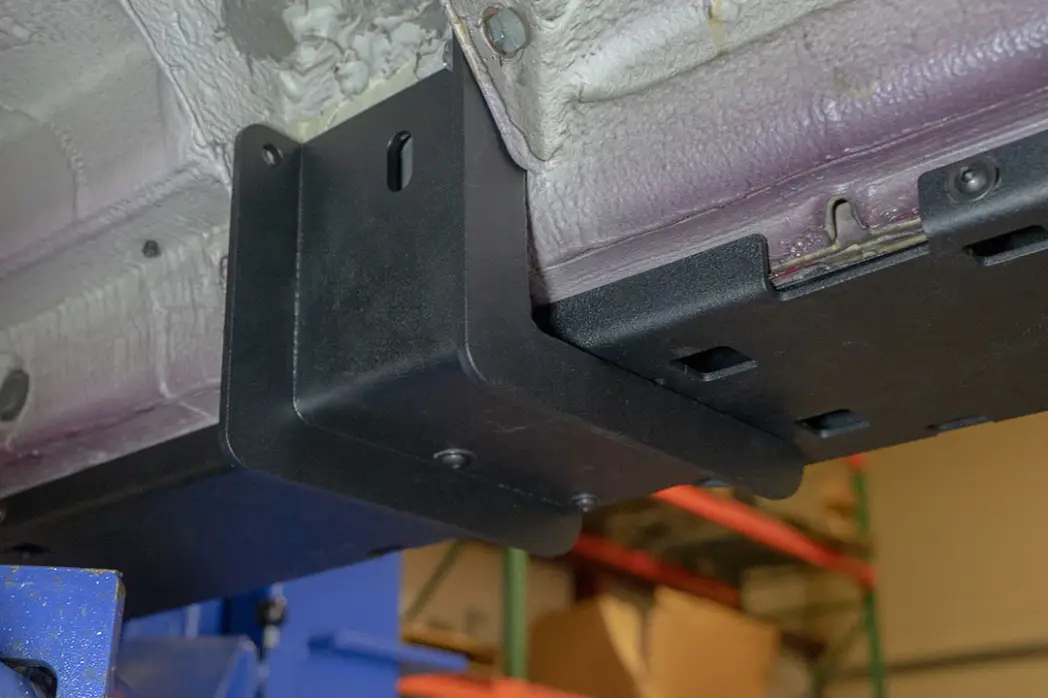

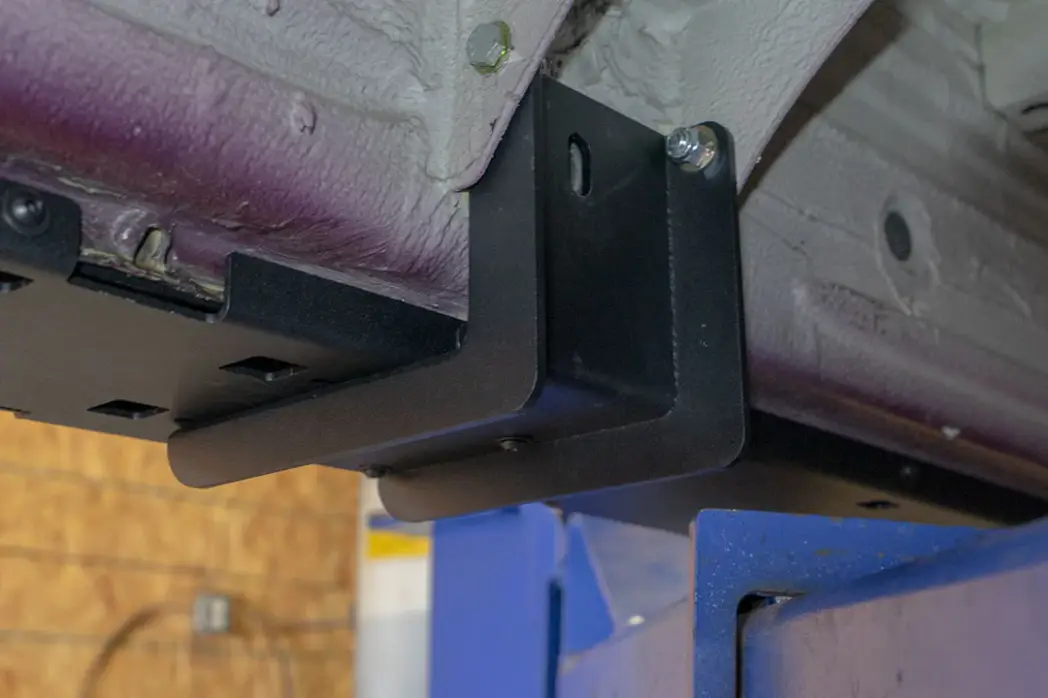

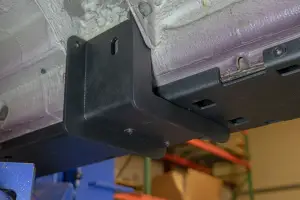

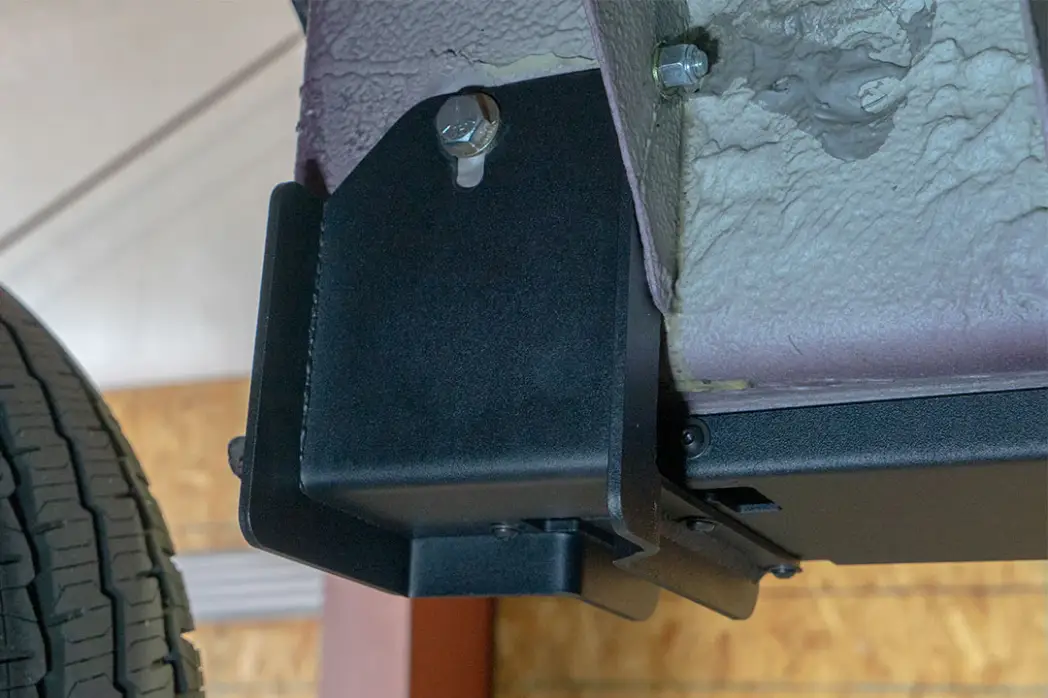

  • Front, 2x Middle and Rear Chassis Tie In Brackets, 3/16" Steel, Black Powdercoat
  • Stainless Mounting hardware with AL2000 black finish for step plates

FITMENT GUIDE

  • MODEL: SPRINTER 2500 and 3500
  • YEAR: 2015-2022
  • DRIVE TYPE: 4X4
  • NOTE: Not compatible with Winnebago BOLDT
  • NOTE: May be installed on a 2WD when equipped with a Striker lift kit. Select non-lifted 4x4 height sliders.

LABOR TIMES

  • Recommended Shop Labor Time: 6 Hours

Application List

2015-2022 Mercedes Benz Sprinter 2500 2WD/4WD
2015-2022 Mercedes Benz Sprinter 3500 2WD/4WD

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W13.0000” x H20.0000” x L100.0000”
  • $250.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
