STAGE 6.3 SYSTEM, 2" LIFT - SPRINTER 4X4 (2015-2018 2500 ONLY) by VAN COMPASS

Ready to take your Sprinter to the ulitmate level of capability? Adventure in comfort and confidence with a Van Compass system tuned for your van and needs. The Stage 6.3 kit combines our ground-breaking Striker lift kit with the proven shock and spring upgrades of the Stage 4.3 system. This is the ideal system for the uncompromising owner that wants to not only fix poor ride quality and wallowing handling, but take their van to the limit of what is possible off road. This kit will transform both the stance and handling of your Sprinter.

System Benefits:

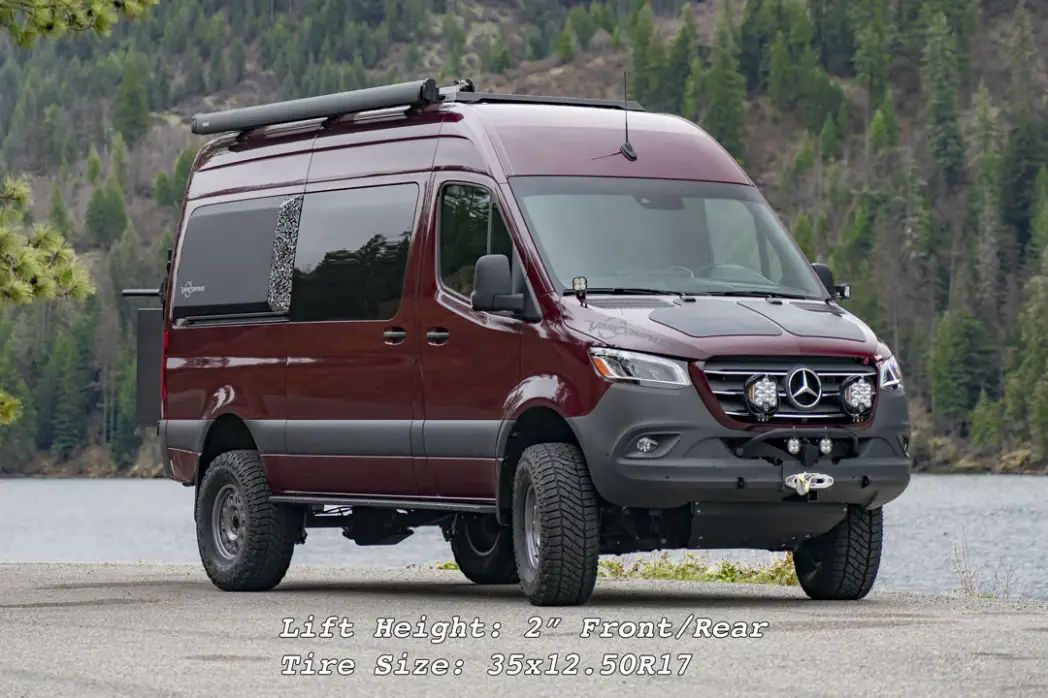

• True 2" of lift increases ground and tire size clearance
• Preserves factory CV, tie rod and control arm angles
• 4 corner external shock adjustment
• Enhanced sway and cornering stability
• Increase compliance and control over small bumps
• Increased off road performance and capability

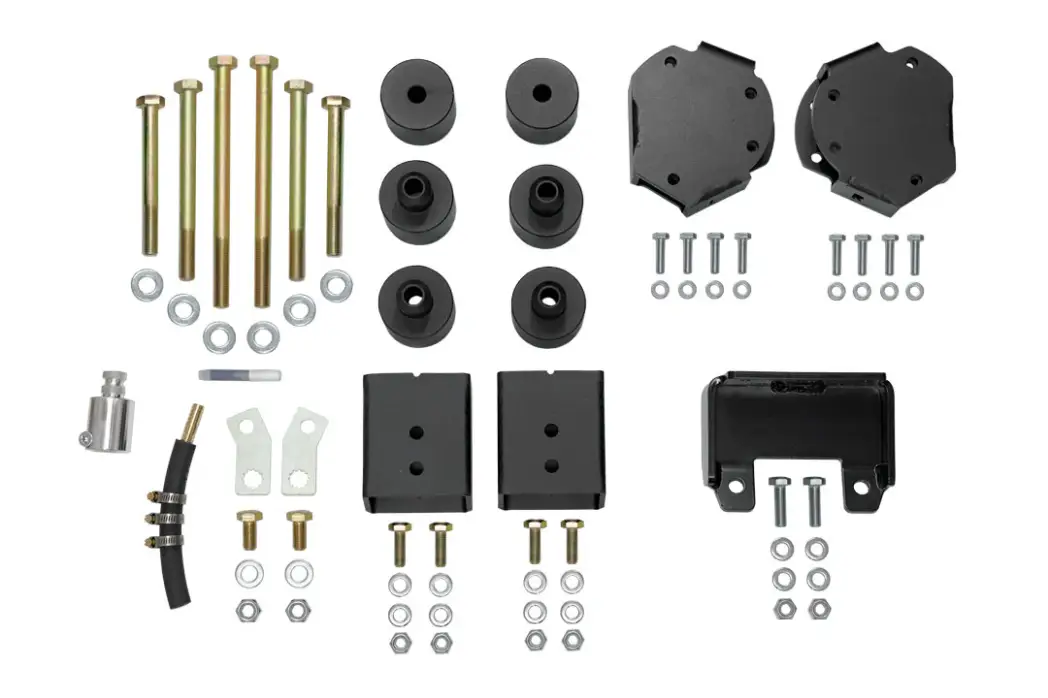

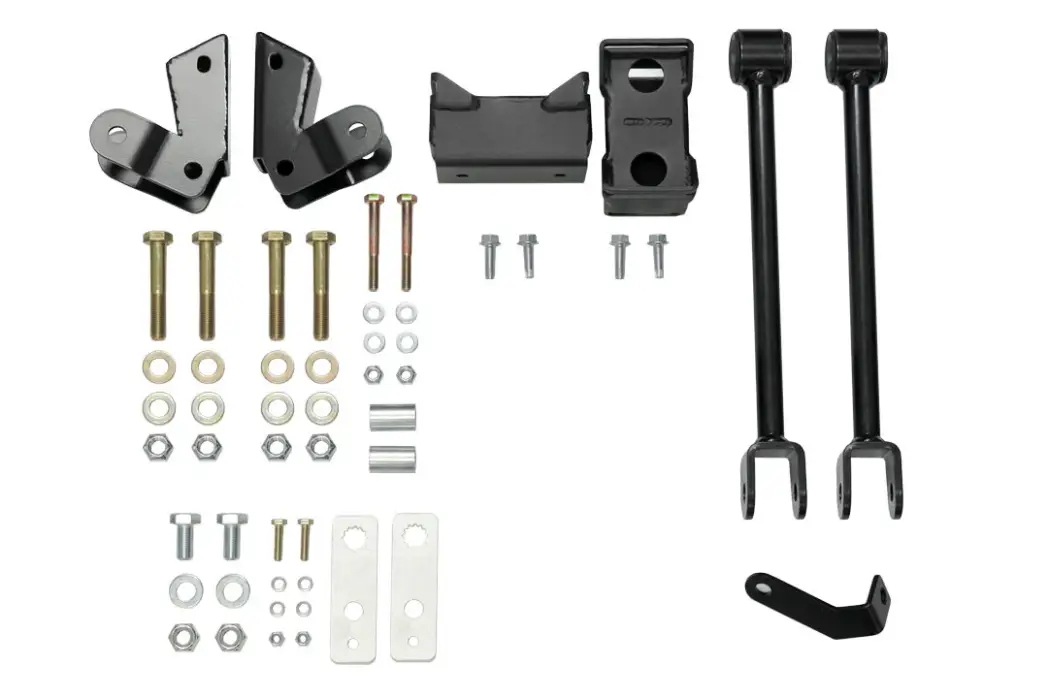

The Striker lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability. Through hours of careful development and design, we've created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible. Using a mix of machined and welded spacers, we move the front subframe to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes. At the rear, a taller version of our Mini Leaf Spring pack is paired with longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or can over-compress on axle articulation. With proper wheel offset and fender trimming, fitment of a 35 x 12.50 tire is possible, for a huge increase in traction and ground clearance.

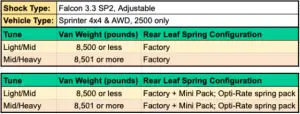

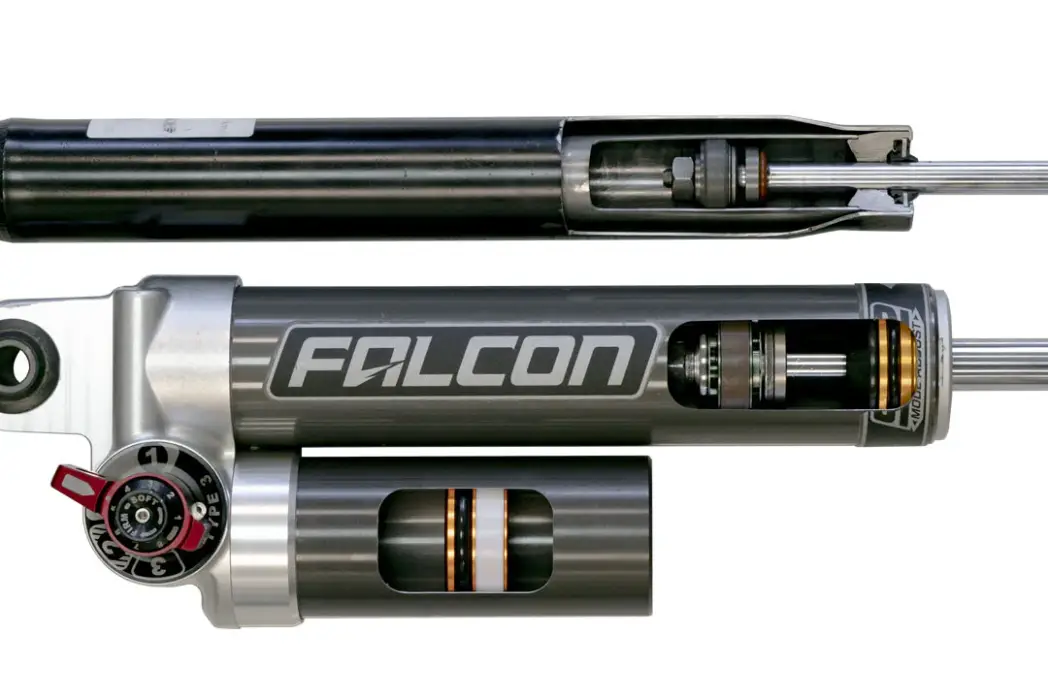

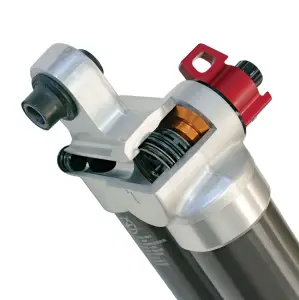

Falcon's 3.3 Fast Adjust Piggyback Reservoir Shocks represent the perfect pairing to upgrade your Sprinter's handling. Built specifically to our tune specifications, they represent the culmination of years of accumulated knowledge, applied directly to the adventure van market. These shocks have a MASSIVE range of compression adjustment at the simple flip of a knob. We've put the large red knob in an easy to reach location that allows for easy access and quick confirmation of the settings. The rear shocks also include the SP2 adjustment, which allows for further refinement specific to your preferences and vehicle's weight; with a simple turn of the shaft one of 2 tune profiles is engaged during installation. For more info on the functions of these shocks, you can read our 3.3 shock settings guide.

Our Stage 6.3 system retains the factory suspension geometry and transforms the Mercedes Sprinter 4x4 from a violently swaying and lumbering cargo van into a vehicle with true German luxury car feeling and control, both on and offroad. Vehicle control and suspension compliance are the two areas of ride quality we focused on when we engineered this kit, and the payoff is increased performance over any terrain while also improving handling for unexpected emergencies.

The Mini Leaf Spring pack offers a cost effective way to increase spring rate in the rear of your Sprinter, adds 2" of rear lift and restore lost ride height. Our mini spring is tuned to work perfectly with the OEM spring and represents an excellent solution to maintain factory wheel position and leaf spring geometry while restoring suspension up-travel on a heavy van. Included U-bolts ensure a quick and easy installation, and glide pads on the tips ensure quiet operation, just like your OEM springs.

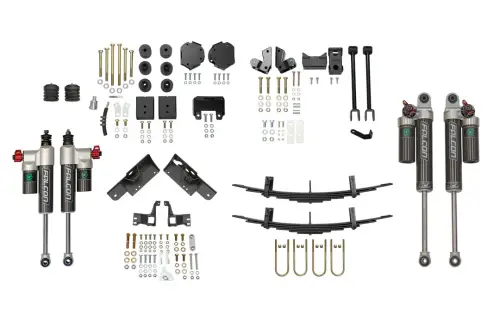

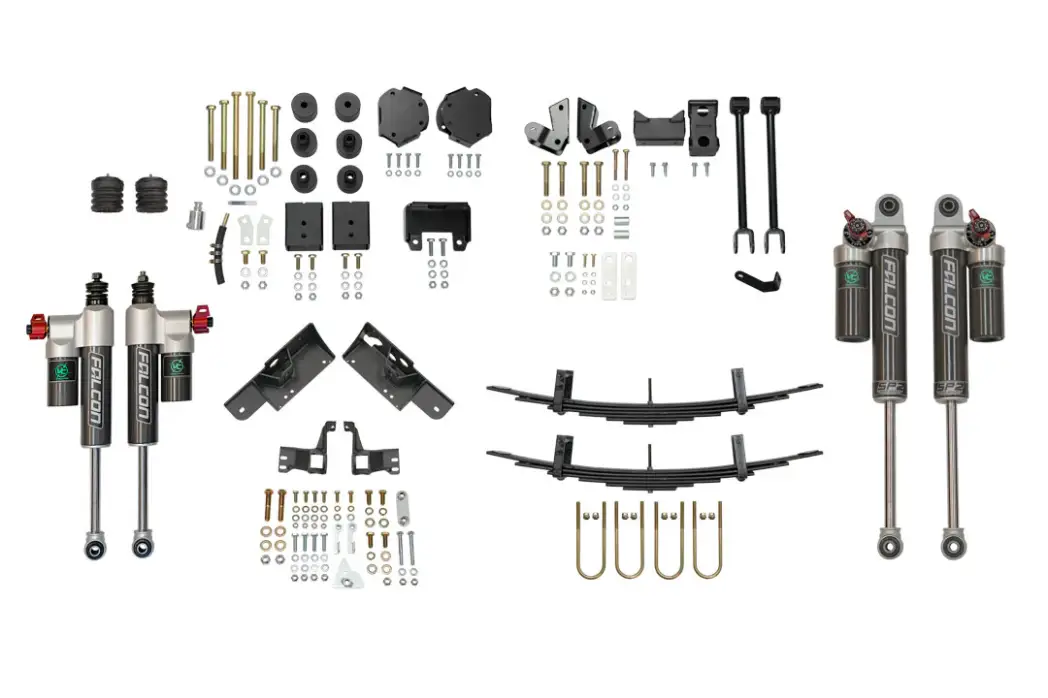

INCLUDED COMPONENTS
