7023-M | Van Compass Stage 3 System (2015-2018 Sprinter 2500 4WD | 8000-9100 LBS)
2015-2018 Mercedes Sprinter 2500 4WD | 8000-9100 LBS
Description
STAGE 3 SYSTEM - SPRINTER 4X4 (2015-2018 2500 ONLY) by VAN COMPASS
Stage 3 System Benefits:
- VC tuned Falcon 2.1 Monotube shocks, front and rear
- Restores lost ride height and reduces sagging
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps off road
- Improved handling feel on rough roads and broken pavement
- Increased bottom out resistance
Intended Use:
- Adventure vans at or near GVWR full time
- Heavy Class B RV's
- Heavy Passenger vans seeking a handling upgrade
The Stage 3 system is ideal for heavy vans that are seeing rear sag from the weight of a build out or conversion. A tuned 4 corner shock upgrade, rear leaf spring upgrade and front bump stop all combine to tighten up your Sprinter's loose handling. Vehicle control and suspension compliance are the two areas of ride quality we focused on when we engineered this kit, and the payoff is increased performance over any terrain while also improving handling for unexpected emergencies.

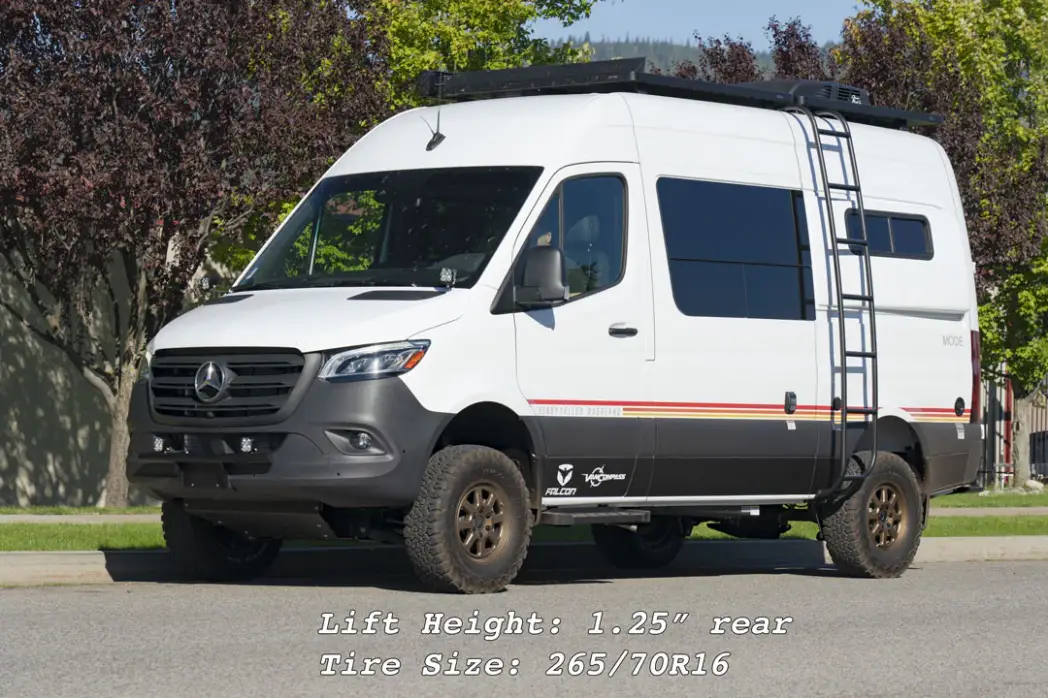

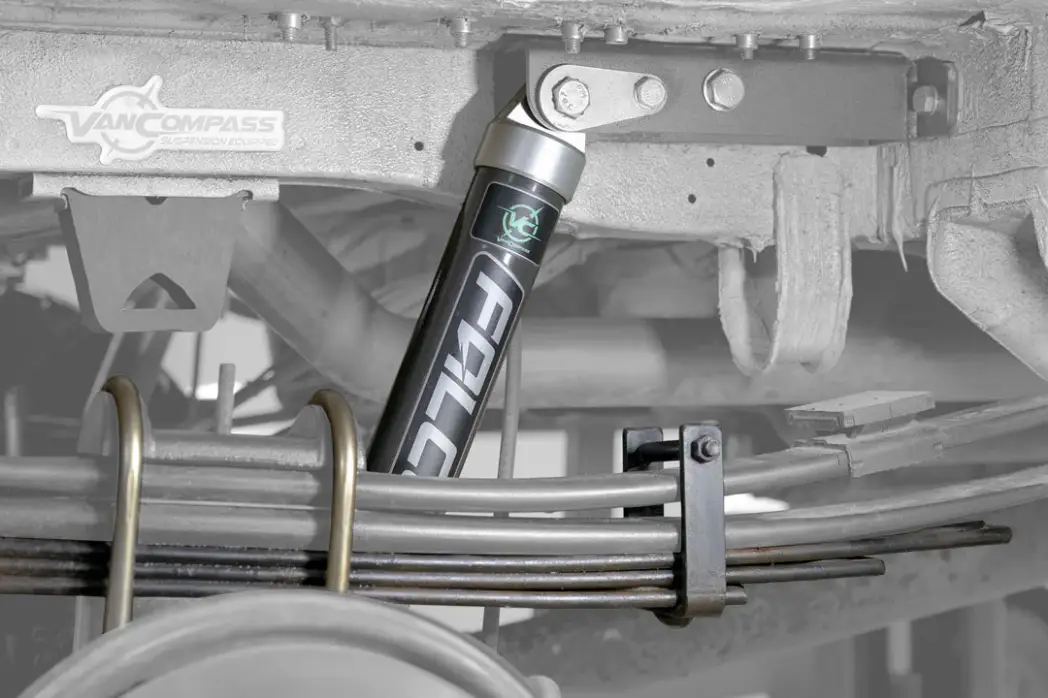

The rear mini leaf spring pack, tuned specifically to work with the stock rear leaf spring, restores lost ride height and corrects sag while retaining the quiet ride of the factory leaf spring. Typically, 1.25" of rear lift is seen, resulting in a nicely leveled stance.

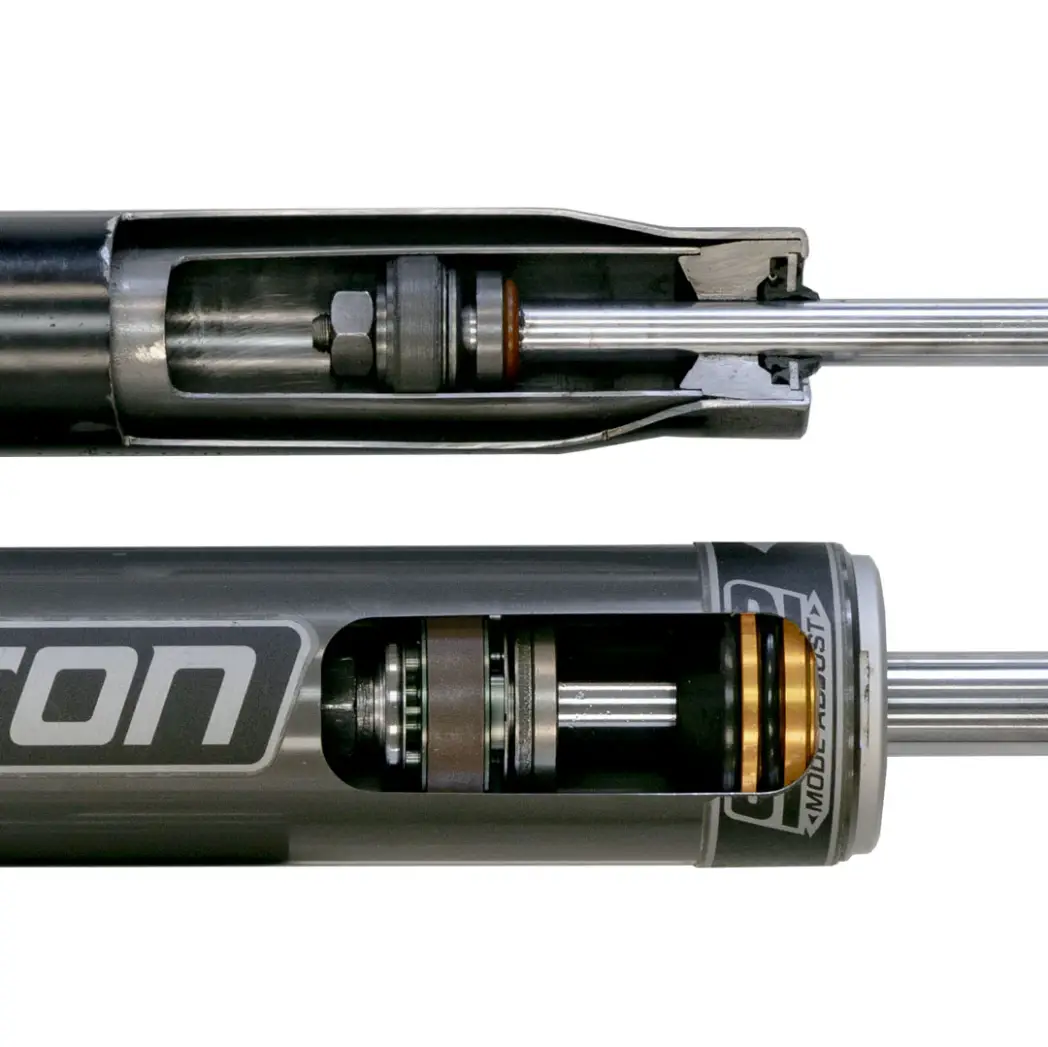

Falcon 2.1 Monotube Shocks, expertly tuned for van users, dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamics of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts. This in turn increases comfort and safety factor, while reducing driver fatigue.
Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.

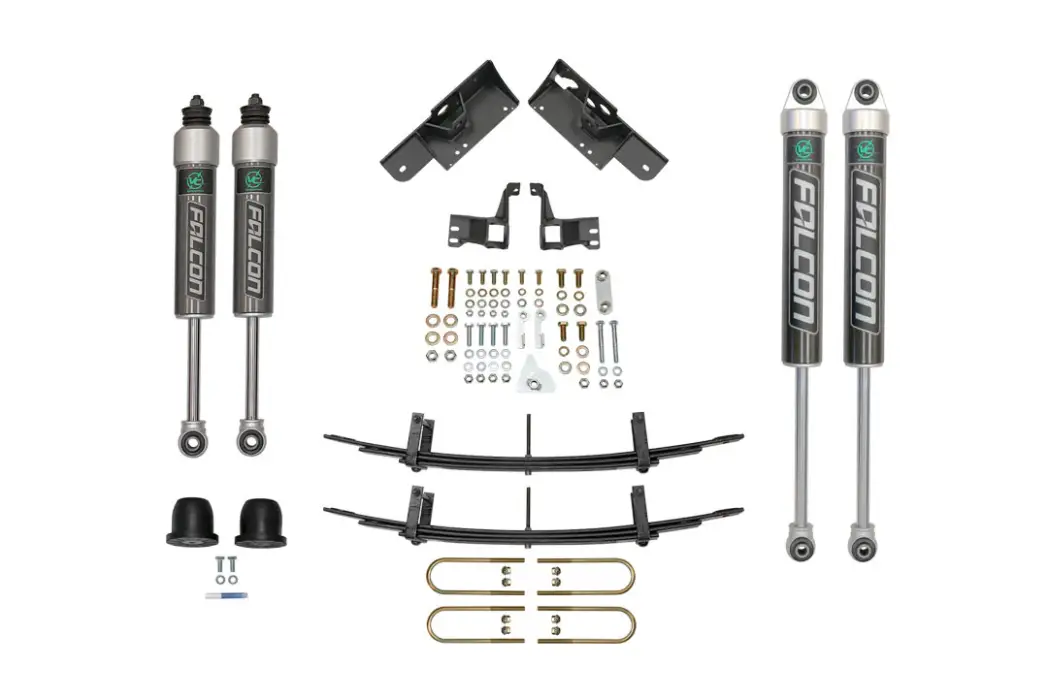

INCLUDED COMPONENTS

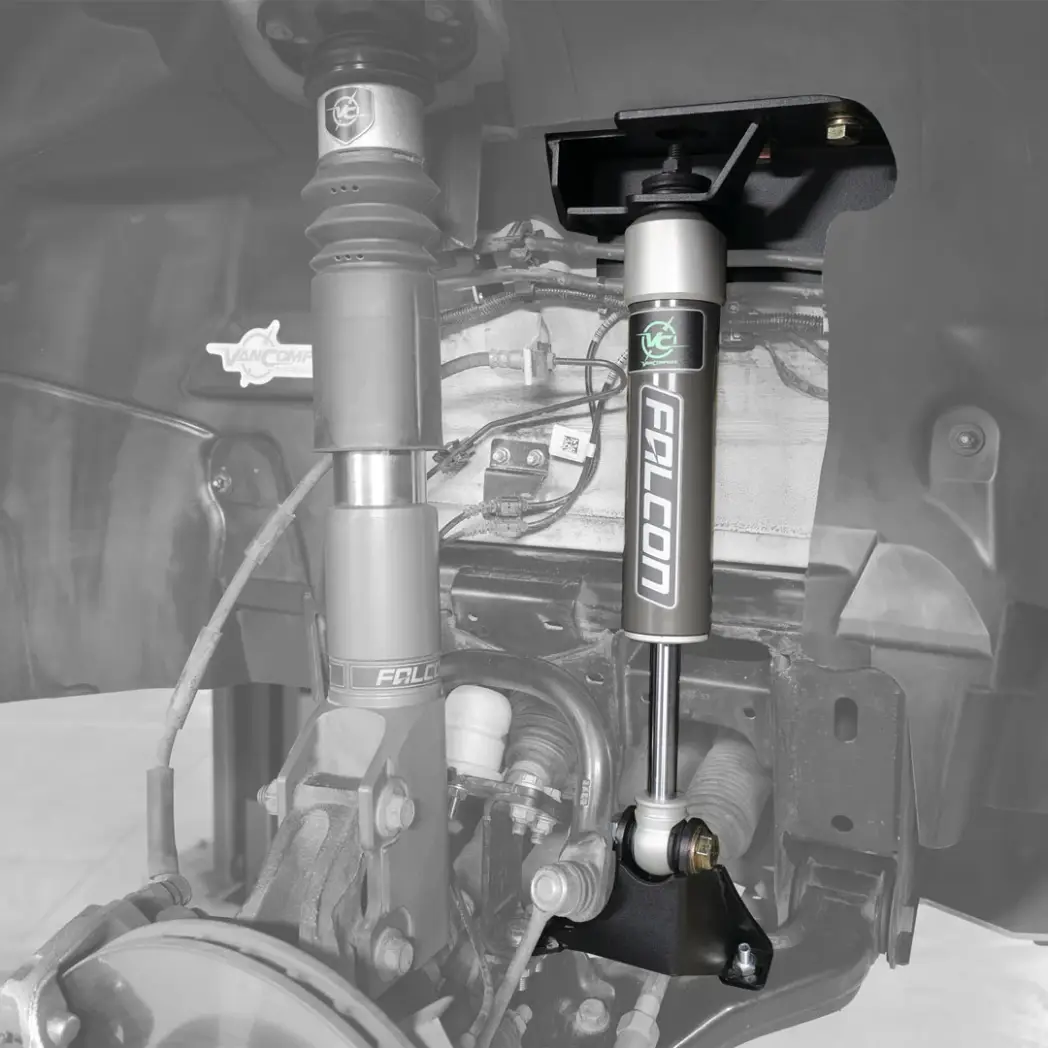

- Falcon 2.1 Monotube Front Shocks with Mounting Brackets
- Front Bump Buddies
- Falcon 2.1 Monotube Rear Shocks
- Rear Mini Leaf Spring Pack
- Dust boots for all 4 shocks.
- All necessary hardware and instructions for a simple installation
FITMENT GUIDE
- MODEL: SPRINTER 2500
- YEAR: 2015-2018
- DRIVE TYPE: 4X4
- NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
- Recommended Wheel Size: 17" x 8.5", +45mm offset
LABOR TIMES
- Recommended Shop Labor Time: 7 Hours
