7023-3500-L | Van Compass Stage 3 Opti-Rate Dually System (2015-2018 Sprinter 3500 4WD | Under 8000 LBS)
2015-2018 Mercedes Sprinter 3500 4WD | Under 8000 LBS
Description
STAGE 3 OPTI-RATE DUALLY SYSTEM - SPRINTER 4X4 (2015-2018 3500) by VAN COMPASS
Stage 3 System Benefits:
- VC tuned Falcon 2.1 Monotube shocks, front and rear
- Innovative Opti-Rate springs restore ride height
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps off road
- Improved handling feel on rough roads and broken pavement
- Increased bottom out resistance
Intended Use:
- Adventure vans at or near GVWR full time
- Heavy Class B and C RV's
- Heavy Passenger vans seeking a handling upgrade
The Stage 3 system is ideal for heavy vans that are seeing rear sag from the weight of a build out or conversion. A tuned 4 corner shock upgrade, rear leaf spring upgrade and front bump stop all combine to tighten up your Sprinter's loose handling. Vehicle control and suspension compliance are the two areas of ride quality we focused on when we engineered this kit, and the payoff is increased performance over any terrain while also improving handling for unexpected emergencies.

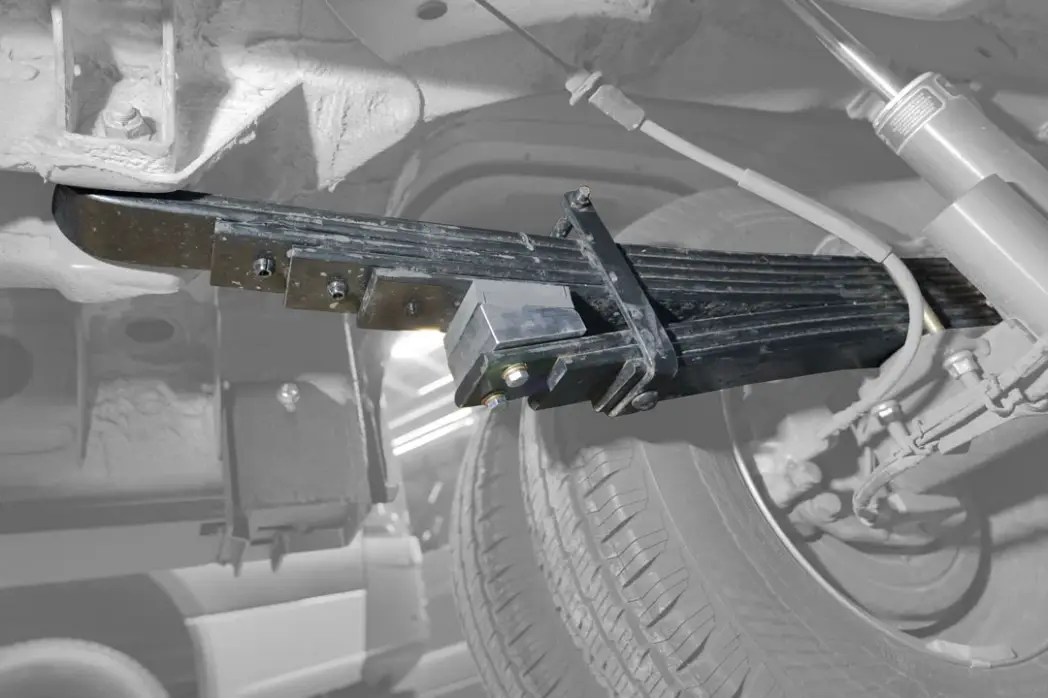

The Opti-Rate leaf spring pack offers flexibility for different van weights, restores lost ride height and corrects sag. Typically, 1.25" of rear lift is seen, resulting in a nicely leveled stance.
Falcon 2.1 Monotube Shocks, expertly tuned for van users, dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamics of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts. This in turn increases comfort and safety factor, while reducing driver fatigue.
Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.

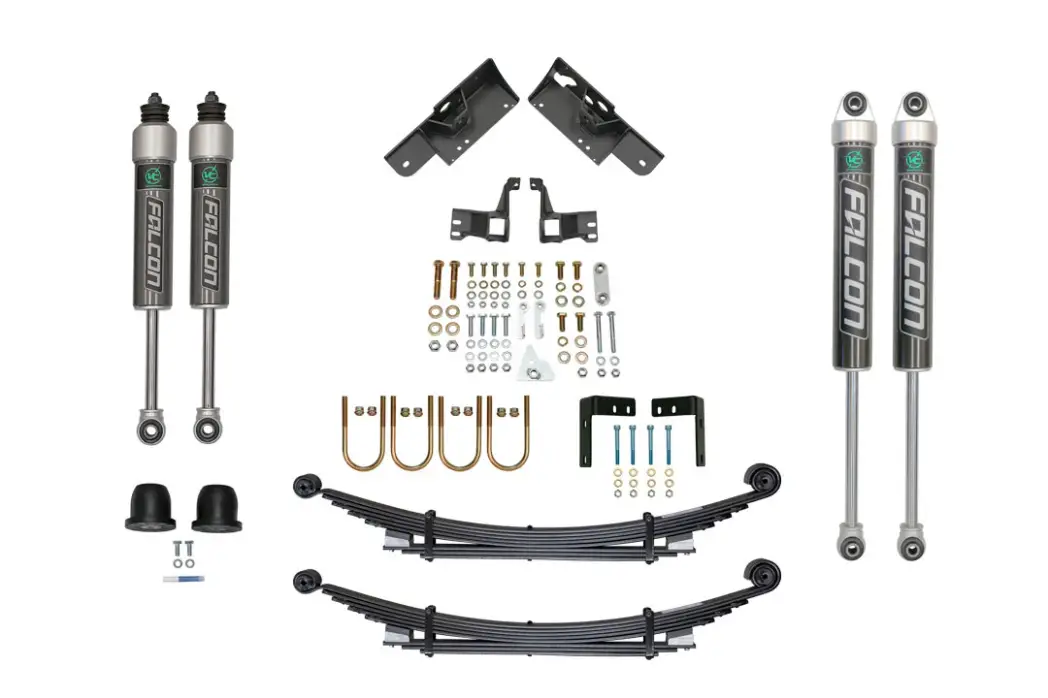

INCLUDED COMPONENTS

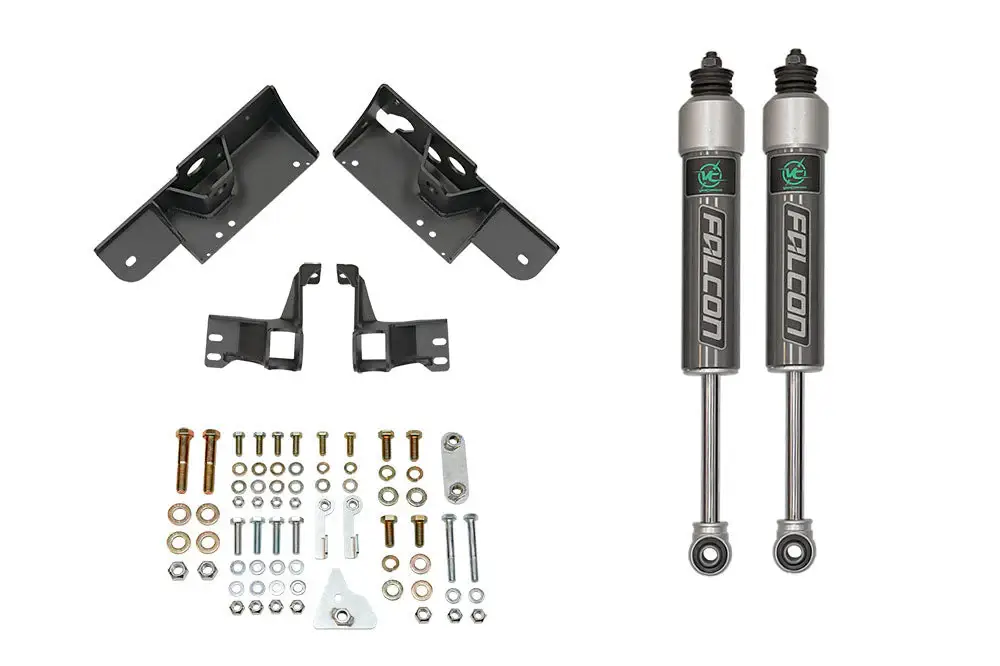

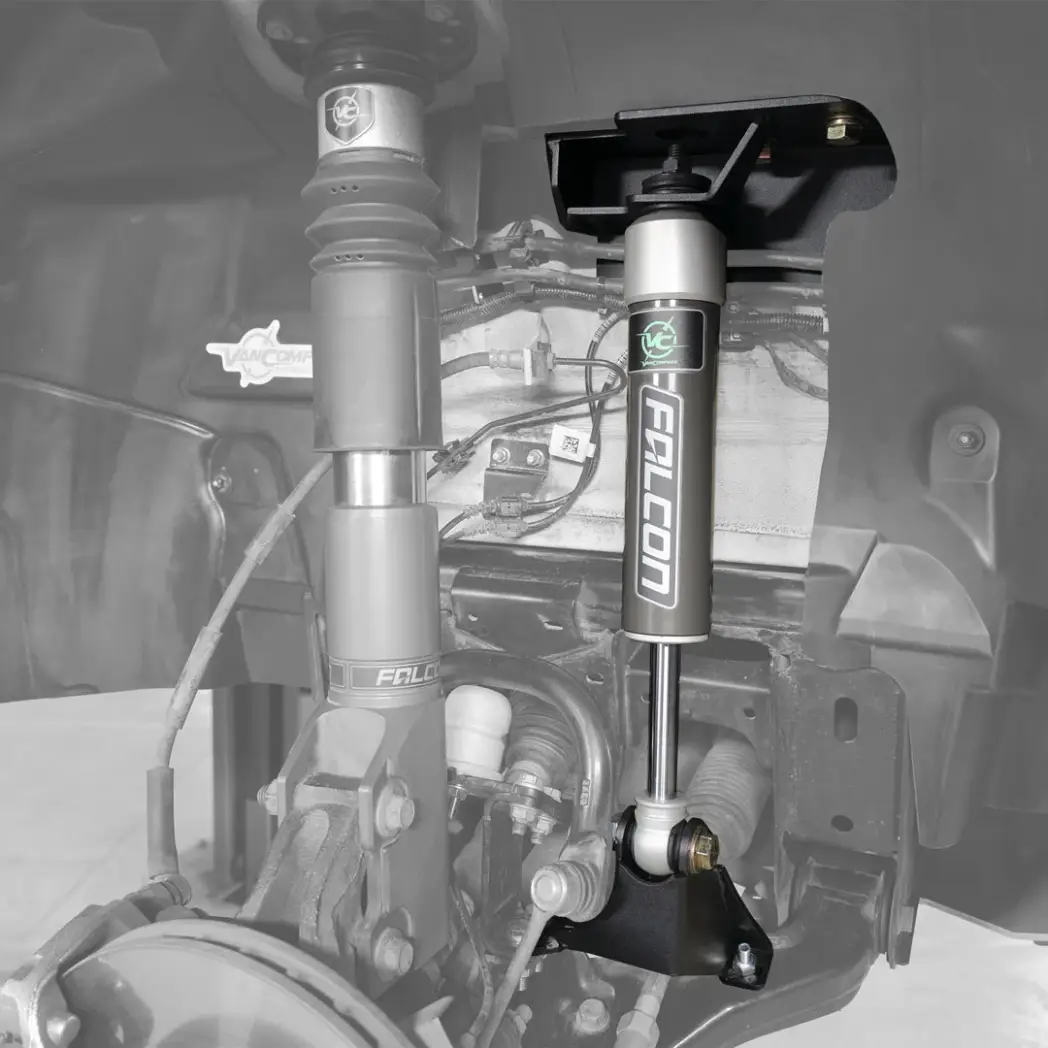

- Falcon 2.1 Monotube Front Shocks with Mounting Brackets
- Front Bump Buddies

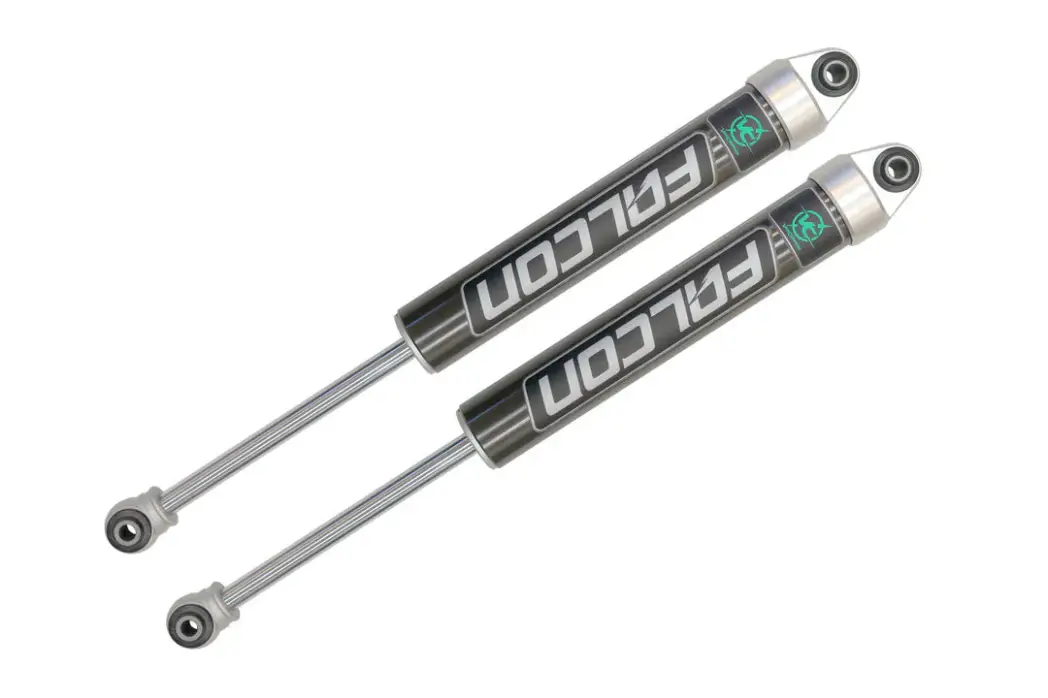

- Falcon 2.1 Monotube Rear Shocks

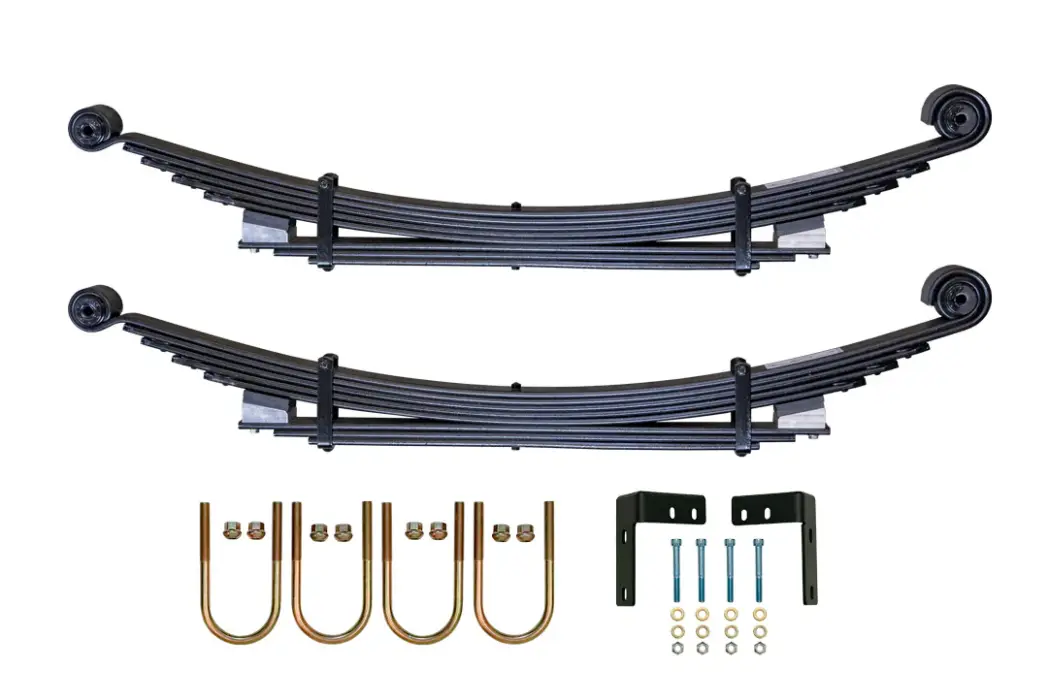

- Opti-Rate Full Replacement Rear Leaf Spring System
- Dust boots for all 4 shocks.
- All necessary hardware and instructions for a simple installation
FITMENT GUIDE
- MODEL: SPRINTER 3500
- YEAR: 2015-2018
- DRIVE TYPE: 4X4
- NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
- NOTE: NOT compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.
LABOR TIMES
- Recommended Shop Labor Time: 7 Hours
Application List
Details
- 7023-3500-L
- 7023-3500-L
- Van Compass
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- $250.00
- Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
