74530RED | Rough Country 3 Inch Lift Kit For Toyota Tacoma 2/4WD | 2005-2023 | Front No Struts (Red Spacer), Rear N3 Shocks
3 Inch Lift Kit For Toyota Tacoma 2/4WD | 2005-2023 | Front No Struts (Red Spacer), Rear N3 Shocks | NOT Fit 5 Lug Wheels, T/X Baja, XSP-X Models
Description
The power of N3 also arrives for Toyota Tacoma at an incredible value. Take your truck to new heights with this excellent option for Toyota Tacoma.

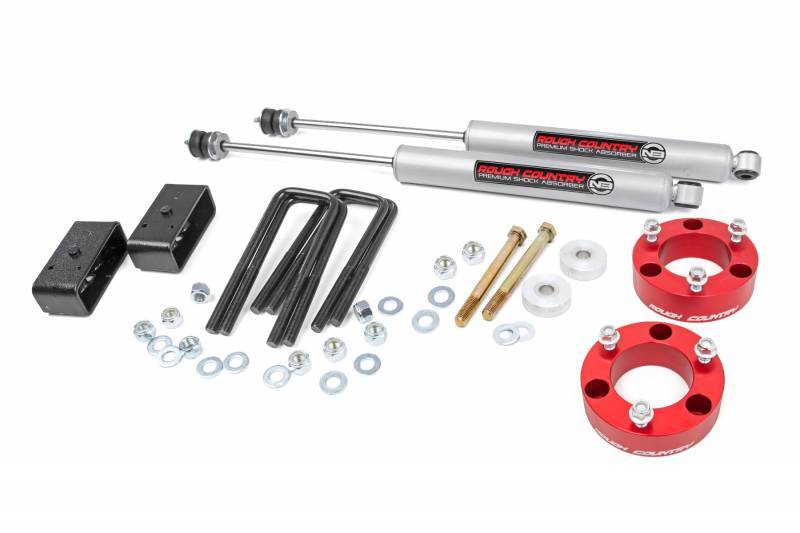

Rough Country’s 3-inch Bolt-On Kit features N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of durable strut spacers and 2" rear blocks to provide lift height from front to rear. Once installed, this kit gives your truck plenty of ride height for larger tires while offering a clean, level look from front to rear.
This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring an easy installation process that requires minor cutting and drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.
FEATURES
- Easy installation.
- Increased ground clearance.
- Maintains factory ride quality.
- Levels the front with the rear of the vehicle.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
OPTIONAL N3 LOADED STRUTS
- Maintains smooth, factory-like ride
- Increased ground clearance
- Nitrogen-charged
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
OPTIONAL VERTEX COILOVERS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Requires minor cutting.
- Does NOT fit models with 5 lug wheels.
- Does NOT fit T/X Baja models.
- Does NOT fit XSP-X models.
- A carrier-bearing drop bracket is advised for trucks equipped with a 2-piece rear driveshaft. SKU: 1776BOX1.
SPECS
- Est. Install Time 2-4 hours
Vehicle Applications
NOTES - IMPORTANT
Requires minor cutting.
Does NOT fit models with 5 lug wheels.
Does NOT fit T/X Baja models.
Does NOT fit XSP-X models.
Components
Strut extensions
Differential spacers
Hardware
REAR
2in lift blocks
U-bolts
Hardware
SHOCKS
(2) Rear Shocks
Tires & Wheels
285/70R17 Factory 17 6x5.5 - 0.25 Spacer
285/70R17 17x8.5 6x5.5 +0 Minor trimming
265/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +1 Minor trimming
265/70R17 17x8.5 6x5.5 +1 -
265/70R17 17x9 6x5.5 -12 -
285/70R17 17x9 6x5.5 +0 Minor trimming
265/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 Minor trimming
265/70R17 17x9 6x5.5 +1 -
285/65R18 18x8.5 6x5.5 +0 Minor trimming
265/70R18 18x8.5 6x5.5 +0 -
285/65R18 18x8.5 6x5.5 +1 Minor trimming
265/70R18 18x8.5 6x5.5 +1 -
265/70R18 18x9 6x5.5 -12 -
285/65R18 18x9 6x5.5 +0 Minor trimming
265/70R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 Minor trimming
265/70R18 18x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +0 Minor trimming
285/55R20 20x9 6x5.5 +1 Minor trimming
Details
- 74530RED
- 74530RED
- 843030153489
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W6.0000” x H6.0000” x L24.0000”
- Free Ground Shipping | Exclusions Apply*
