7214-LM | Van Comapss Stage 4 TOPO 2.0 System (2020-2024 Transit AWD | Under 8500 LBS)

2020-2024 Ford Transit 150, 250, 350 AWD | Single Rear Wheel ONLY | Under 8500 LBS

4084
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $3,749.16
Qty:

Description

STAGE 4 TOPO 2.0 SYSTEM - TRANSIT AWD (2020+ SINGLE REAR WHEEL) by VAN COMPASS

Stage 4 System Benefits:

  • Aggressive, 2" taller stance allows larger tires to smooth out terrain
  • Increased approach, break over and departure angles
  • VC tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings
  • Increased rear spring rate fights sag
  • Enhanced cornering stability and reduced wind sway
  • More effective control over large and small bumps
  • Improved handling feel on rough roads and broken pavement
  • Increased bottom out resistance

Intended Use:

  • Users that want the ability to change ride quality
  • Heavier vans experiencing rear sagging
  • Passenger vans that want a versatile ride and more aggressive stance

Improve the ride quality and stance of your Ford Transit AWD with the Stage 4 Topo 2.0 package. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the 2020+ AWD Transit platform.

Our Topo 2" lift kit includes a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to our specifications we gain 1.25" of lift, with a corresponding increase in compression travel. A 5 leaf mini pack works in conjunction with the factory leaf pack to provide a 10-15% spring rate increase in the rear while lifting the back of the van anywhere from 2.0" to 2.5" depending on vehicle weight. Friction reducing tips on our leaves ensure a smooth, quiet ride. Included rear shock relocation brackets allow for the low hanging factory brackets to be trimmed, resulting in better overall ground clearance under the axle tube.

Adjustable Falcon 3.3 Fast Adjust Shocks feature a huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters. A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.

(Bilstein B6 strut are not included with AWD systems, their added length can cause CV boot failure)

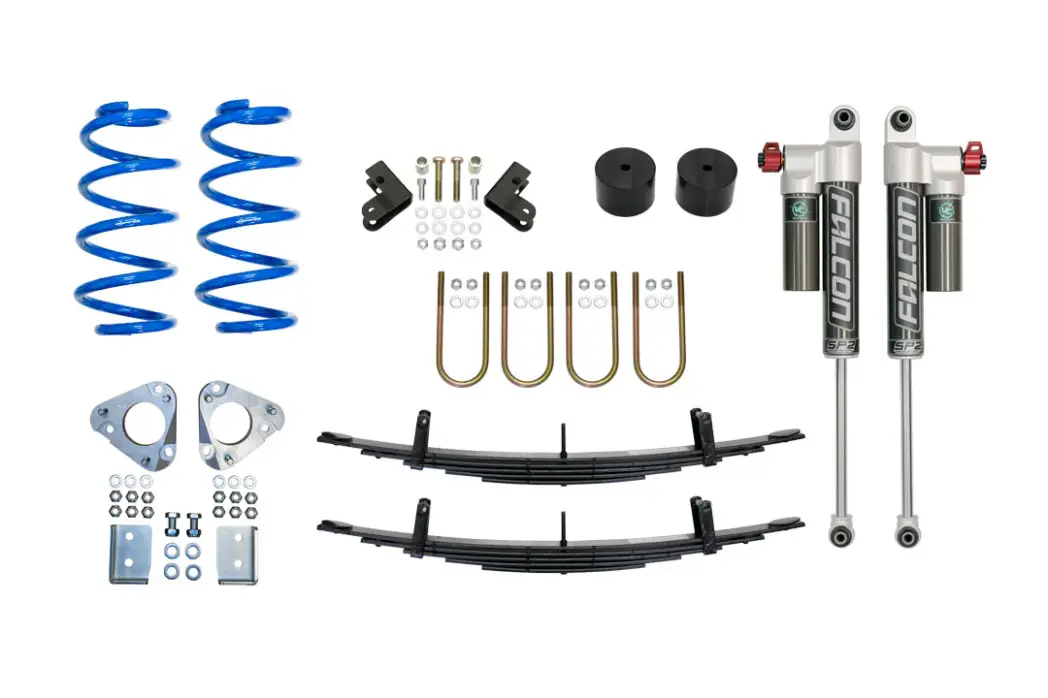

INCLUDED COMPONENTS

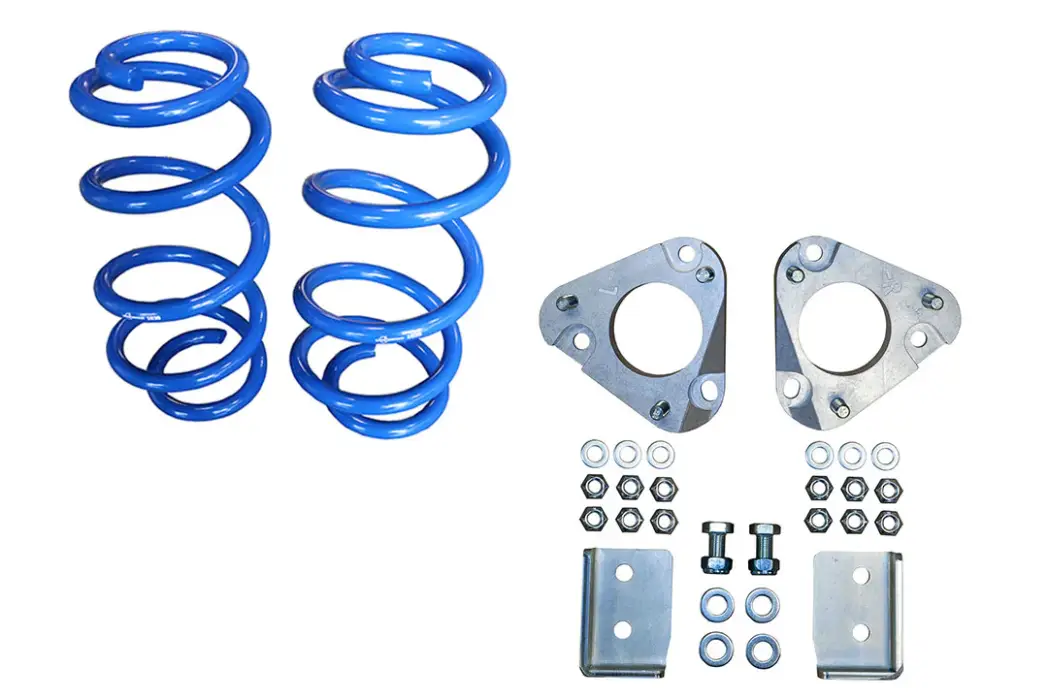

  • Topo 2.0 Front Lift Kit

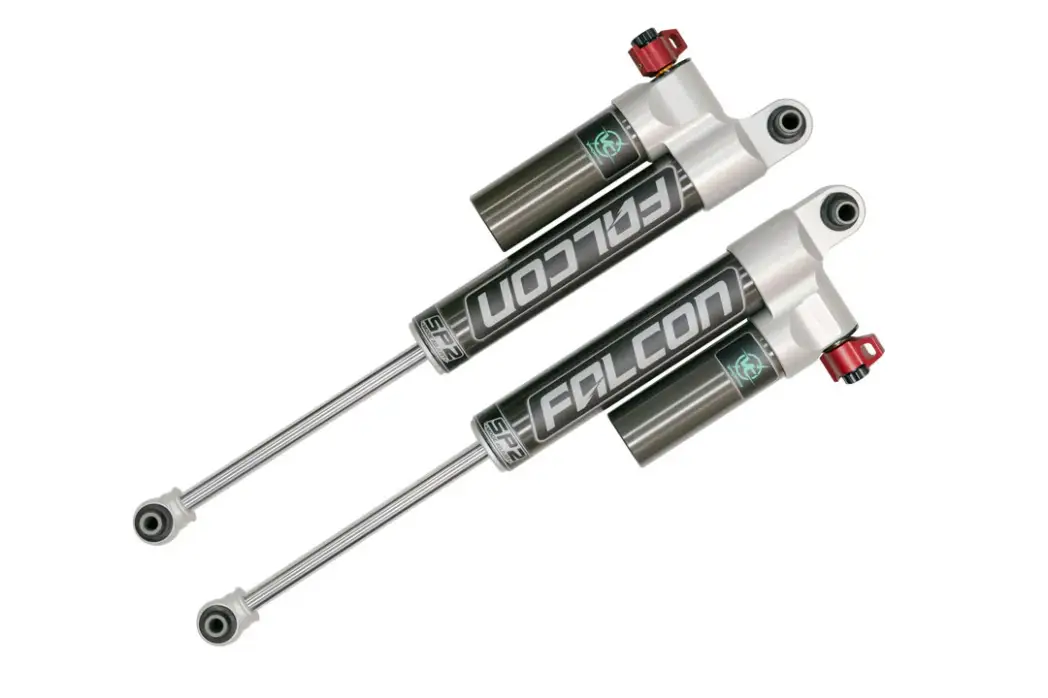

  • Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)

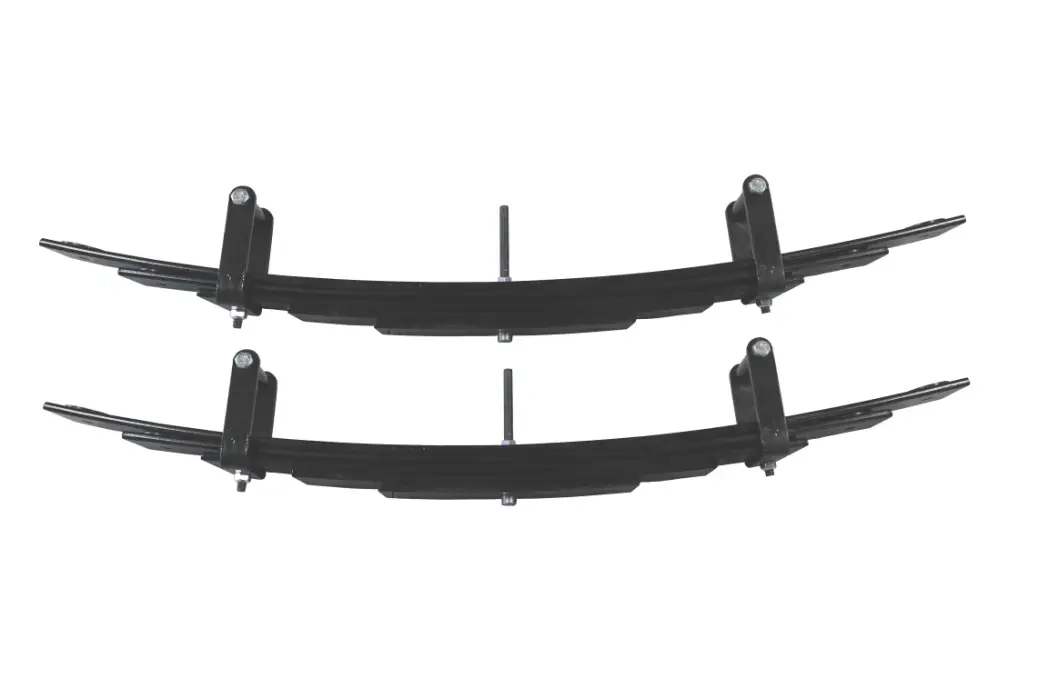

  • Rear 5-Leaf Mini-Spring Pack and Bump Stop Spacers
  • High Clearance Rear Shock Brackets

FITMENT GUIDE

  • MODEL: TRANSIT SINGLE REAR WHEEL
  • YEAR: 2020-PRESENT
  • DRIVE TYPE: AWD
  • NOTE: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

LABOR TIMES

  • Recommended Shop Labor Time: 8.25 Hours



Application List

2020-2024 Ford Transit 150 AWD, SRW | Under 8500 LBS
2020-2024 Ford Transit 250 AWD, SRW | Under 8500 LBS
2020-2024 Ford Transit 350 AWD, SRW | Under 8500 LBS
