7112-H | Van Compass Stage 1 TOP 2.0 System (2013-2017 Transit RWD | SRW & DRW Over 8900 LBS)
2013-2017 Ford Transit 150, 250, 350 2WD | Over 8900 LBS
Description
STAGE 1 TOPO 2.0 SYSTEM - TRANSIT RWD (2013-2017 SINGLE OR DUAL REAR WHEEL) by VAN COMPASS
Stage 1 System Benefits:

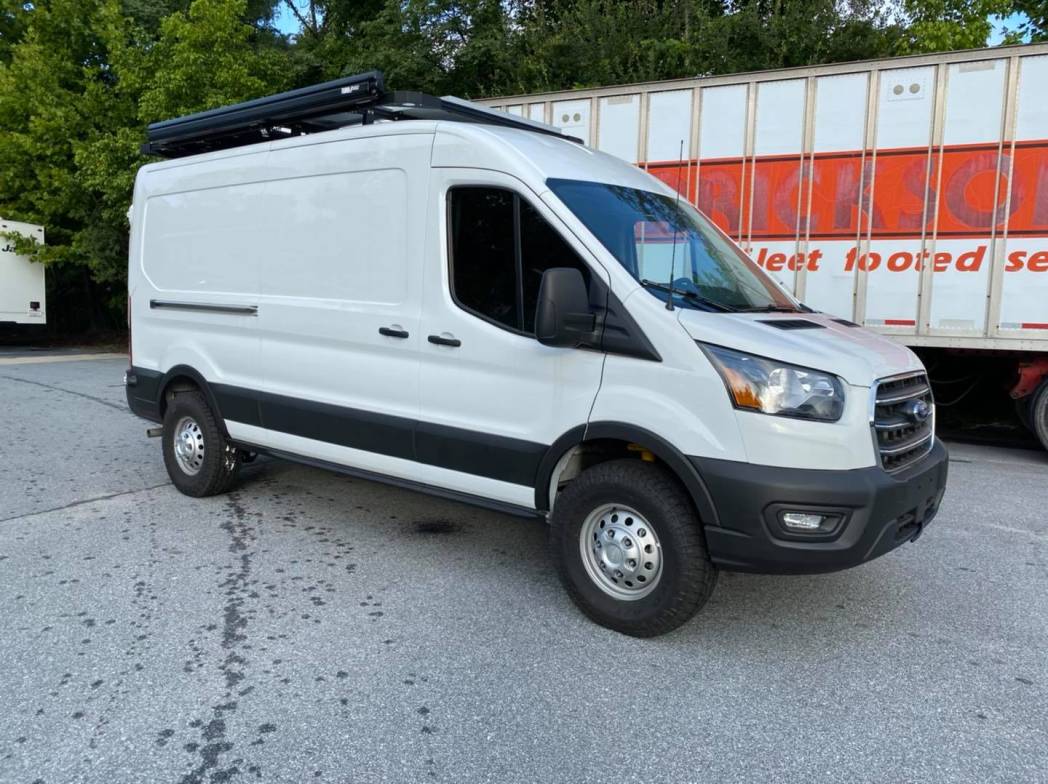

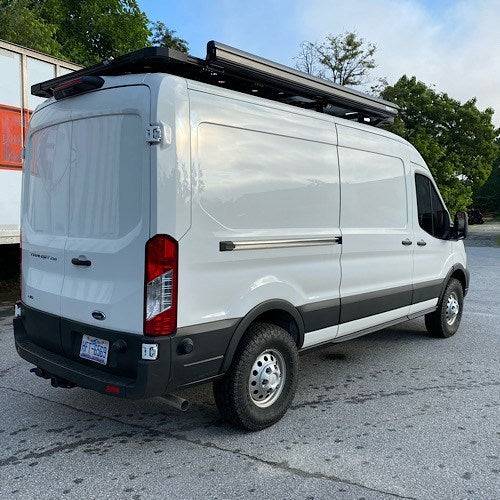

- Aggressive, 2" taller stance allows larger tires to smooth out terrain
- Increased approach, break over and departure angles
- VC tuned Falcon 2.1 Monotube Shocks
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps
- Improved handling feel on rough roads and broken pavement
- Increased bottom out resistance
Intended Use:
- Entry level kit for lighter vans without sag problems
- Passenger vans that want a more aggressive stance
Improve the ride quality and stance of your Ford Transit RWD with the Stage 1 Topo 2.0 package. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the 2020+ AWD Transit platform.
Our Topo 2" lift kit includes a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to our specifications we gain 1.25" of lift, with a corresponding increase in compression travel. Rear lift at Stage 1 is accomplished by a 2" billet aluminum block and corresponding bump stop spacers to keep rear suspension geometry intact. Included rear shock relocation brackets allow for the low hanging factory brackets to be trimmed, resulting in better overall ground clearance under the axle tube.
Falcon 2.1 Monotube Shocks dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamic of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts.
The RWD specific Topo systems include Bilstein B6 front struts to increase damping and further improve handling.

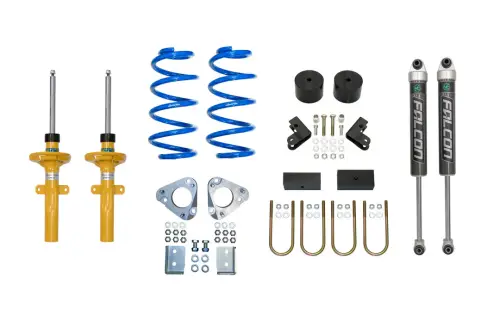

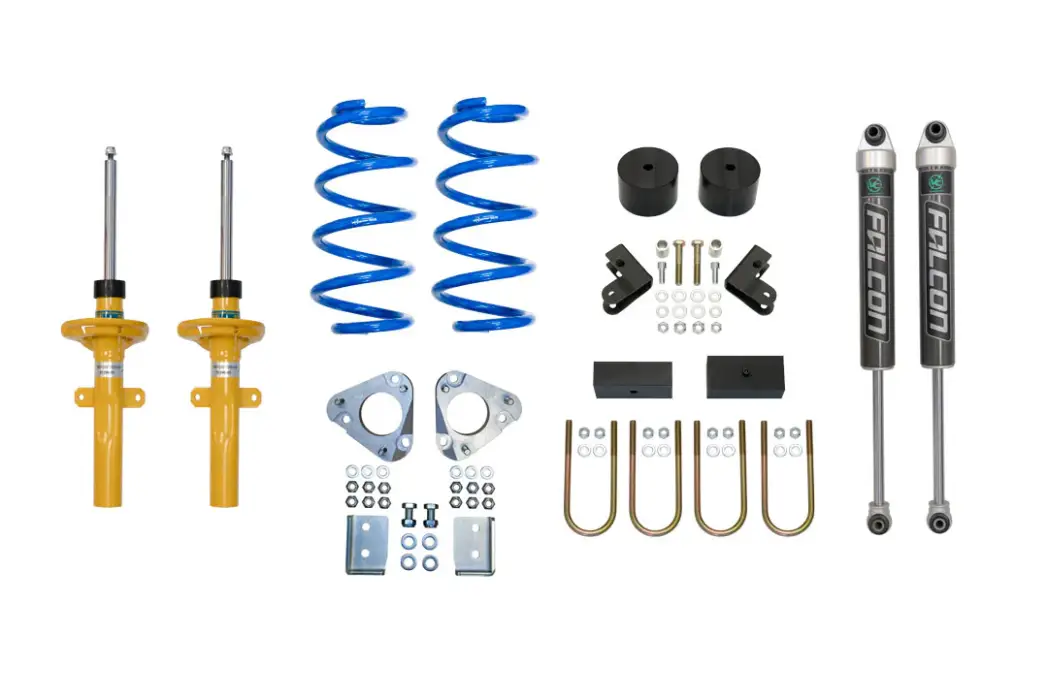

INCLUDED COMPONENTS

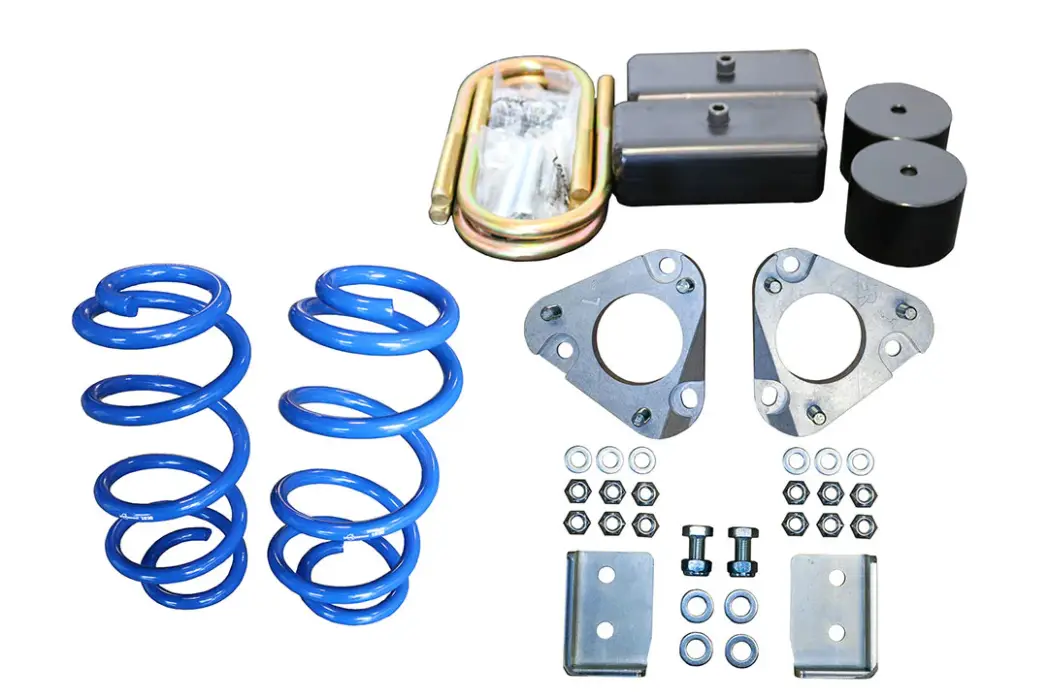

- Topo 2.0 Front and Rear Lift Kit

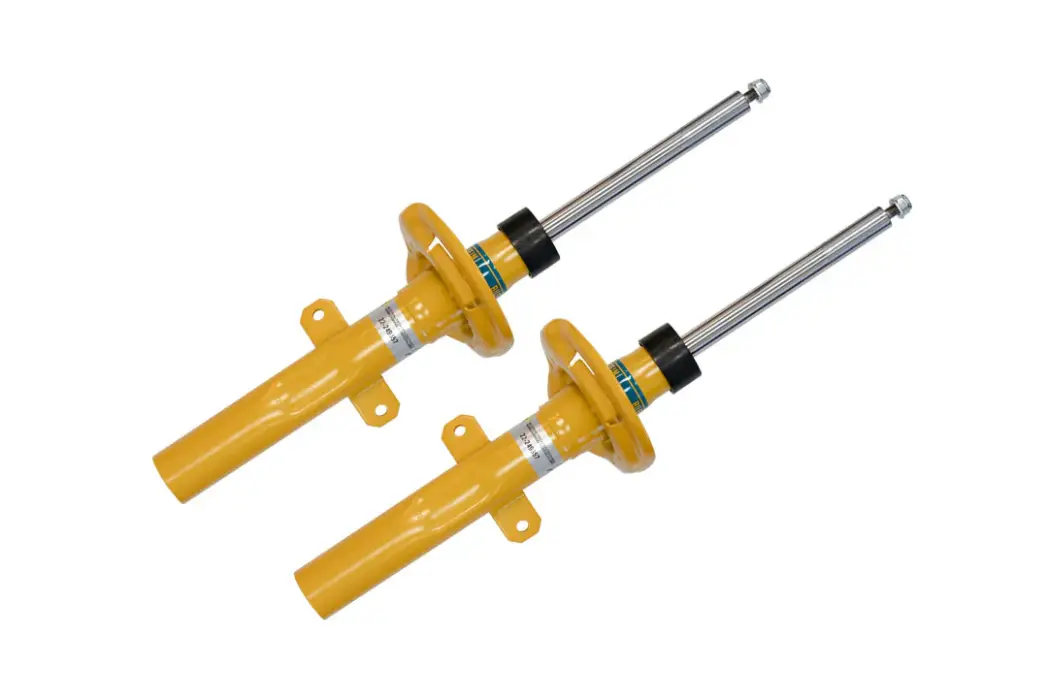

- Bilstein B6 Front Strut Kit (1 pair)

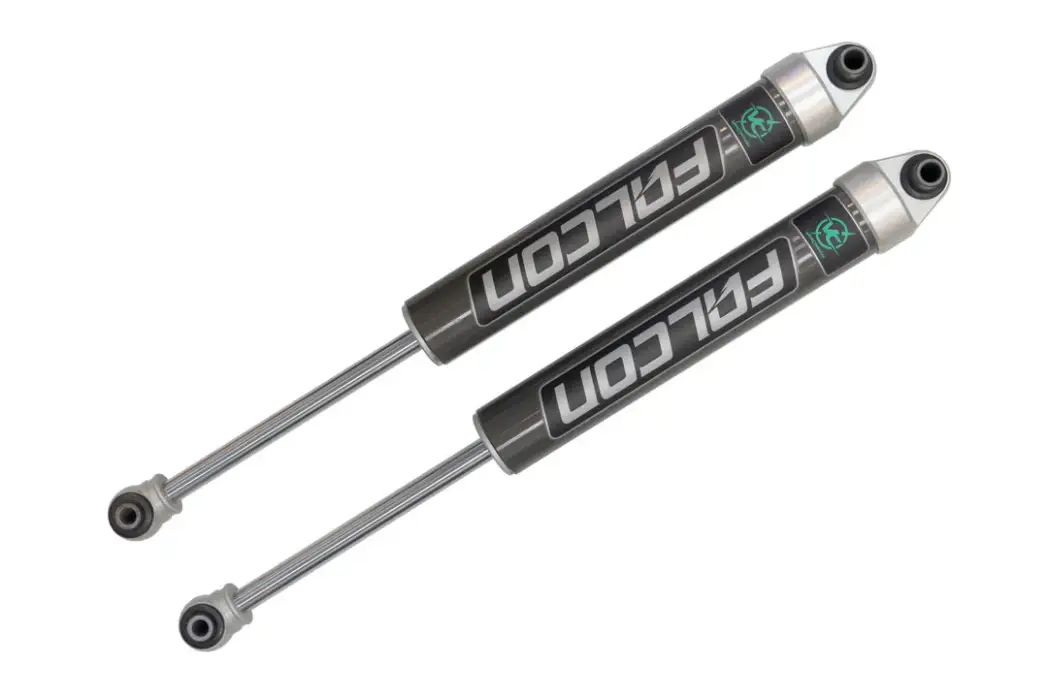

- Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)
- High Clearance Rear Shock Brackets
FITMENT GUIDE
- MODEL: TRANSIT
- YEAR: 2013-2017
- DRIVE TYPE: RWD
- NOTES: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
LABOR TIMES
- Recommended Shop Labor Time: 10 Hours
Application List
2013-2017 Ford Transit 250 2WD | Over 8900 LBS
2013-2017 Ford Transit 350 2WD | Over 8900 LBS
Fit Single and Dual Rear Wheel
Details
- 7112-H
- 7112-H
- Van Compass
- New
Categories
Shipping Information
- Item Requires Shipping
- 97.0 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | This Product Does Not Qualify*
