4026 | Van Compass Air System Mount (2007-2018 Sprinter 2500, 3500 2WD/4WD)

2007-2018 Mercedes Sprinter 2500, 3500 2WD/4WD

4026
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $214.01
Qty:

Description

AIR SYSTEM MOUNT - SPRINTER (2007-2018) by VAN COMPASS

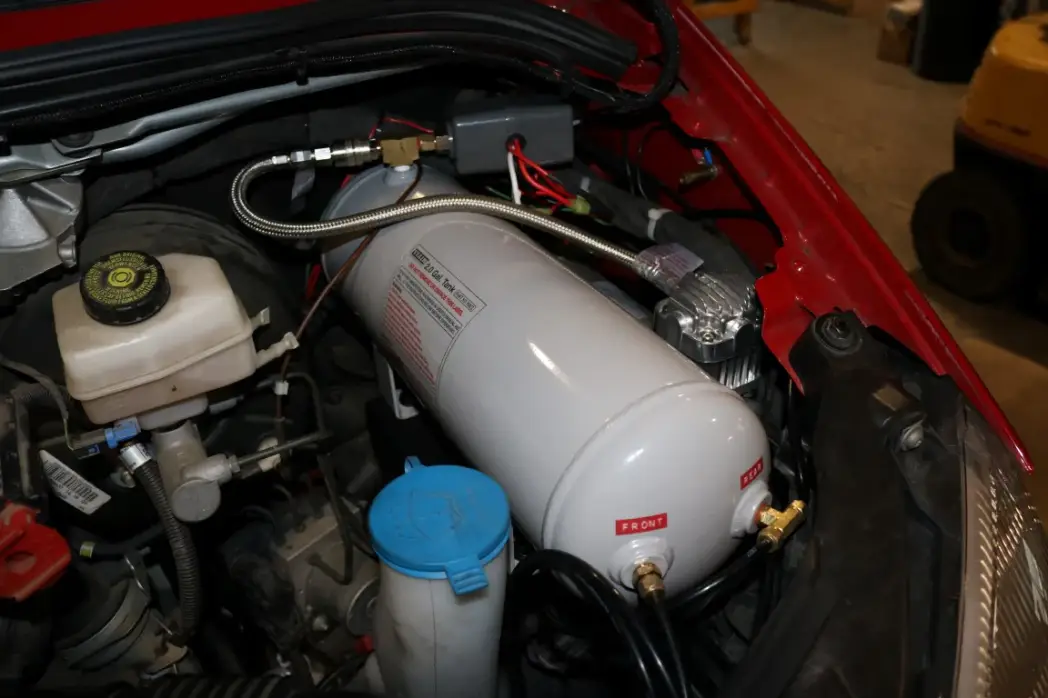

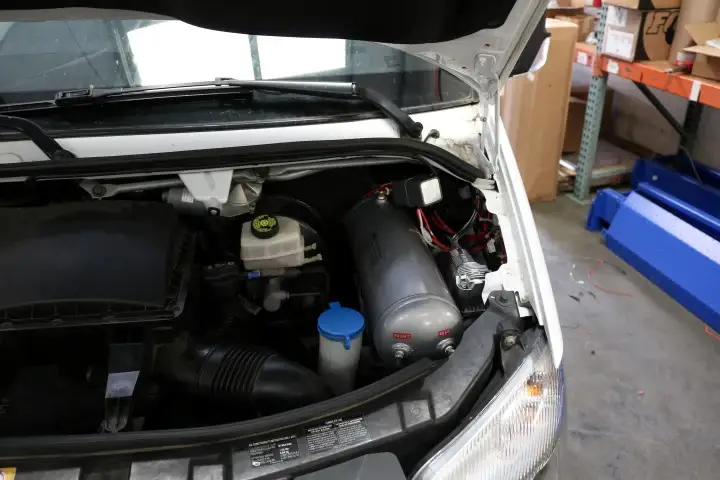

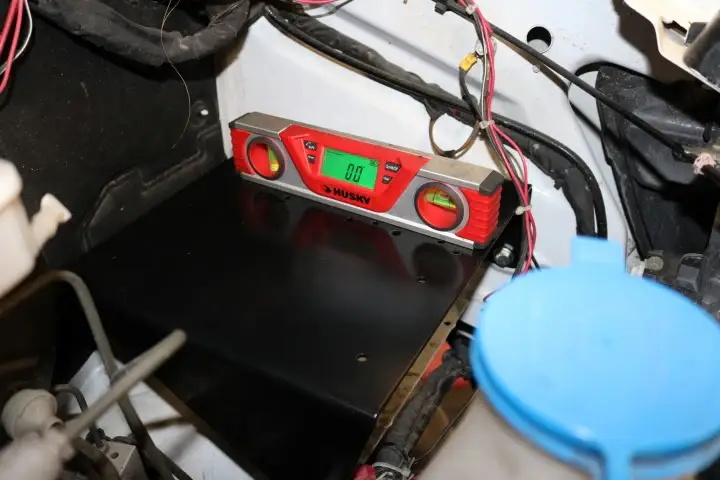

This bracket makes it easy to add an air system to your van. The bracket installs where the factory auxiliary battery is normally mounted under the hood.

Designed to fit a Viar 2.0 Gallon air tank (Part Number: 91022) and most single Viar air compressor up to a 450H in size.

  • The Viar 2.0 gallon tank is also compatible with ARB compressors: CKMA12 or CKSA12
  • An ARB Twin Air Compressor (Part Number: CKMTA12) can be mounted to the bracket if no air tank is desired.

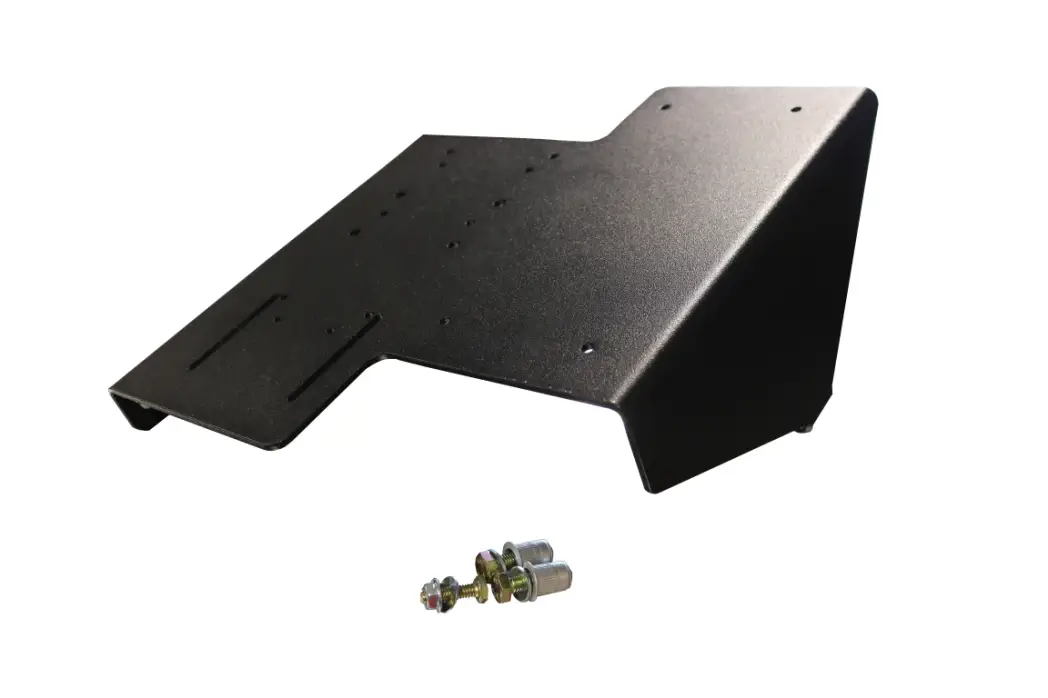

INCLUDED COMPONENTS

  • NCV3 Air Compressor Mounting Bracket
  • Mounting hardware

FITMENT GUIDE

  • MODEL: SPRINTER 2500 and 3500
  • YEAR: 2007-2018
  • DRIVE TYPE: 4X4 and 2WD
  • NOTE: Vans with factory auxiliary battery require that battery to be relocated and the battery mount removed.

LABOR TIMES

  • Recommended Shop Labor Time: 1 Hour

Application List

2007-2018 Mercedes Benz Sprinter 2500 2WD/4WD
2007-2018 Mercedes Benz Sprinter 3500 2WD/4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 11.0 lbs.
  • W16.0000” x H7.0000” x L16.0000”
  • Free Ground Shipping Unavailable | This Product Does Not Qualify*
