4044 | Van Compass Front Winch Mount (2015-2018 Sprinter2WD/4WD)

2015-2018 Mercedes Sprinter 1500, 2500, 3500 2WD/4WD

4044
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
Pricing: $1,537.38
Qty:

Description

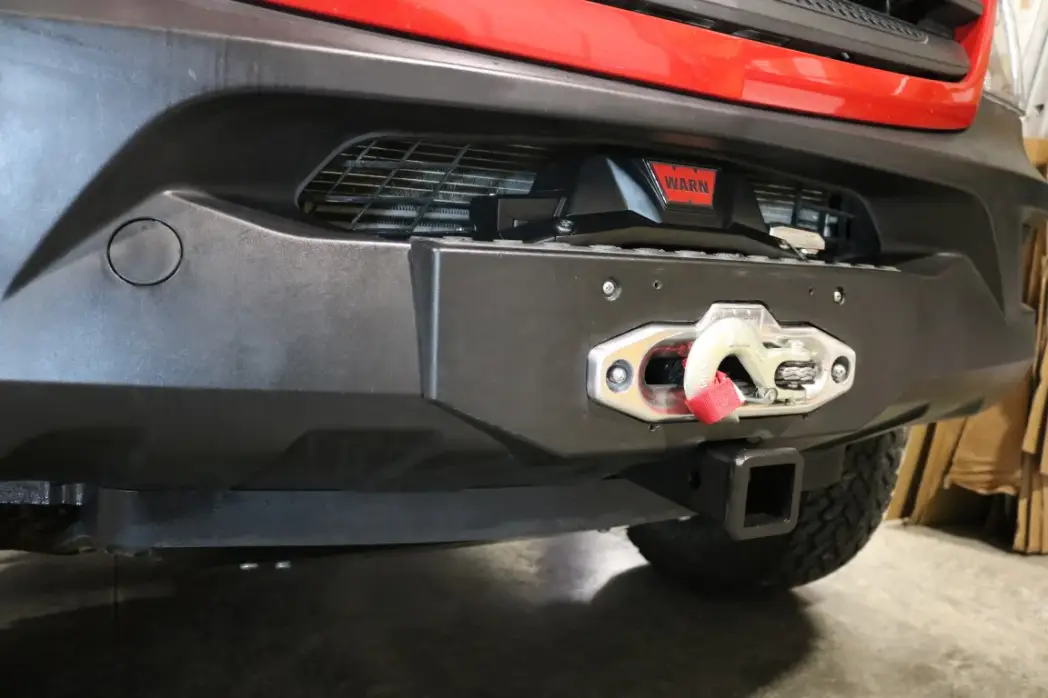

FRONT WINCH BUMPER - SPRINTER (2015-2018) by VAN COMPASS

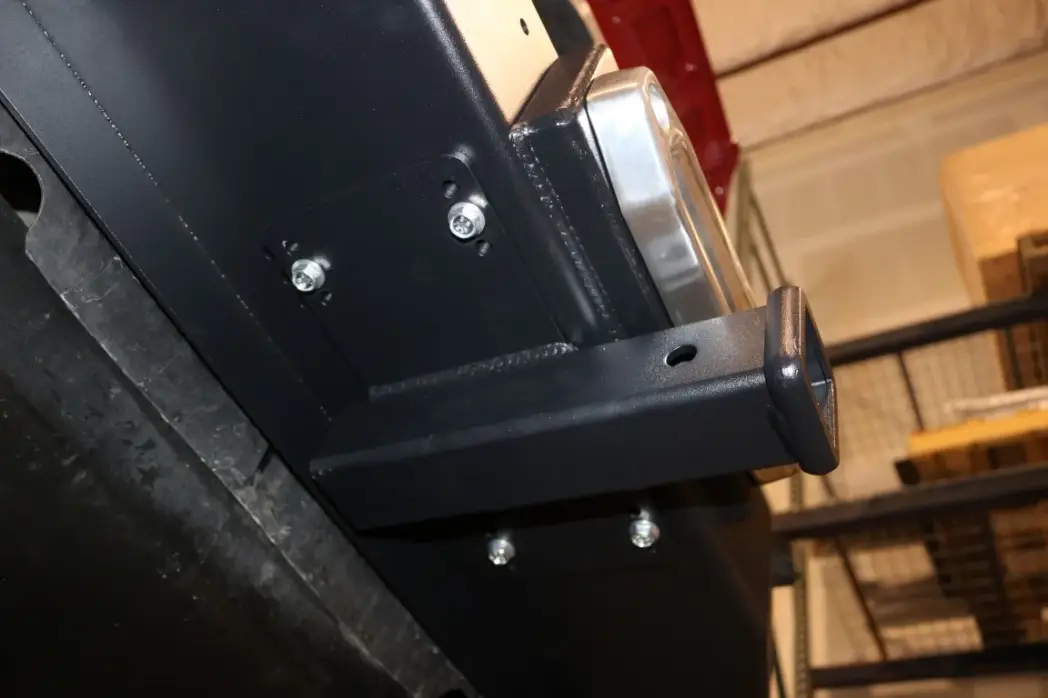

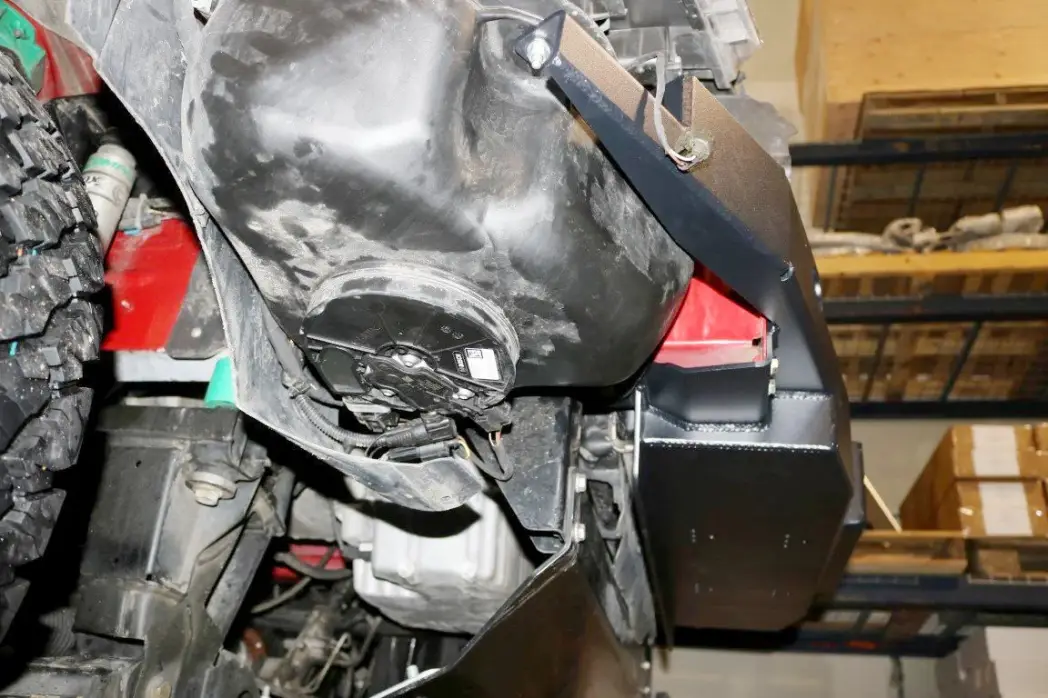

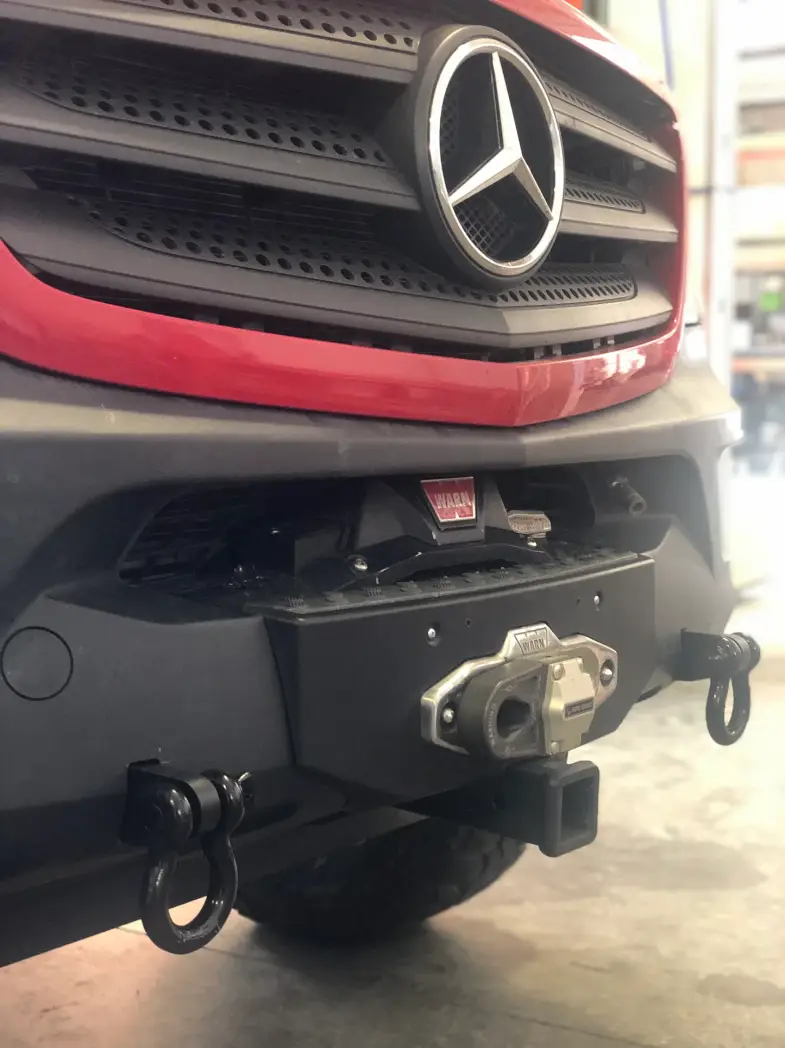

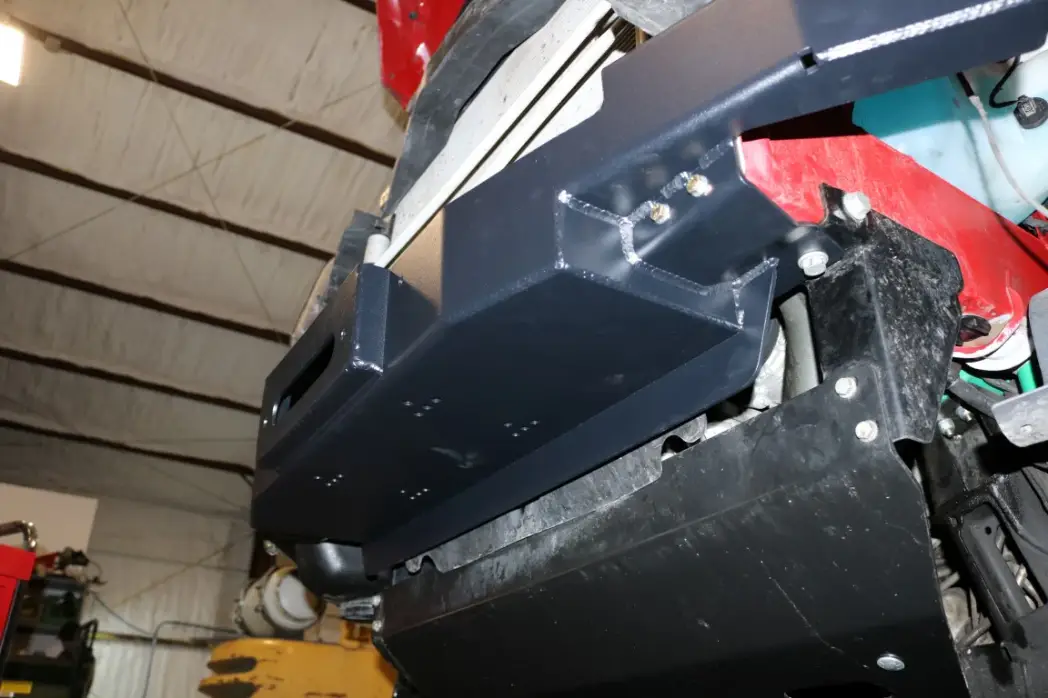

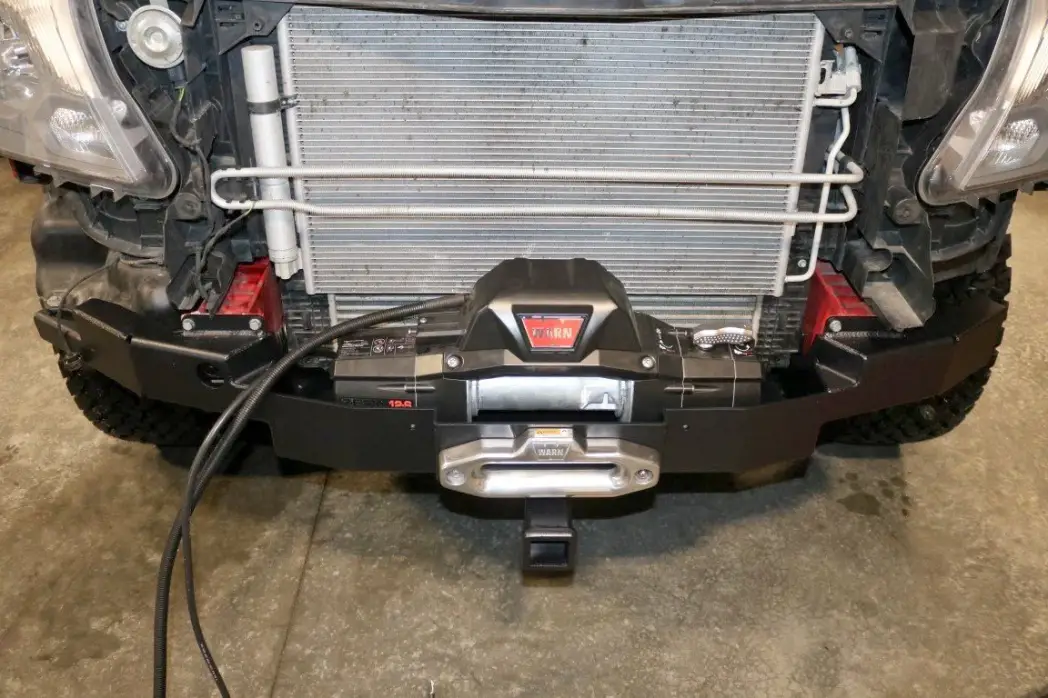

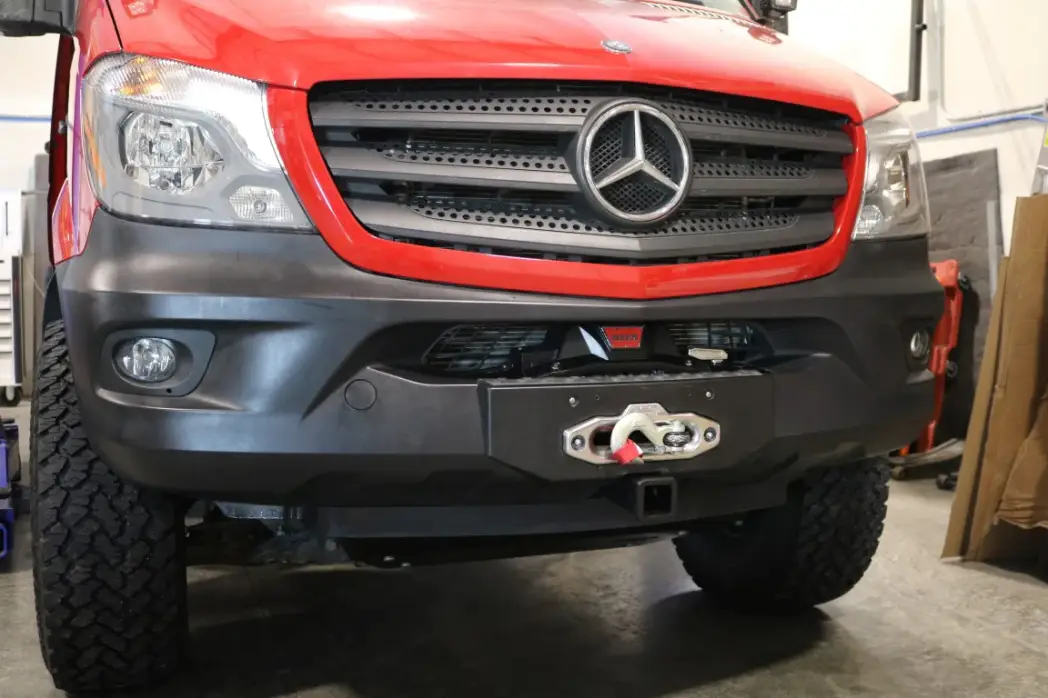

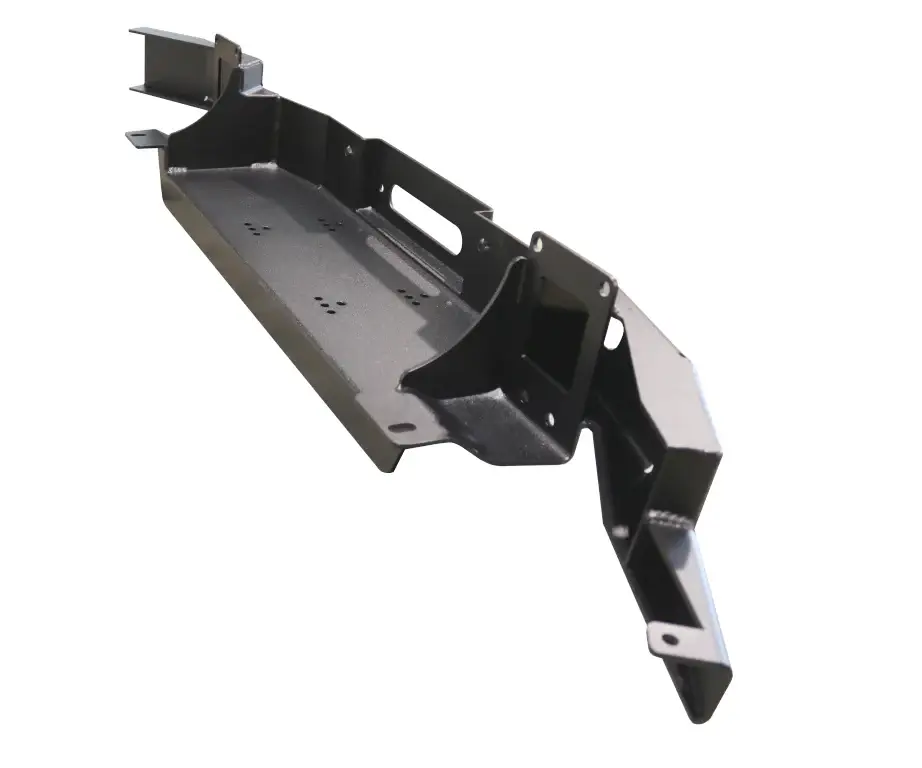

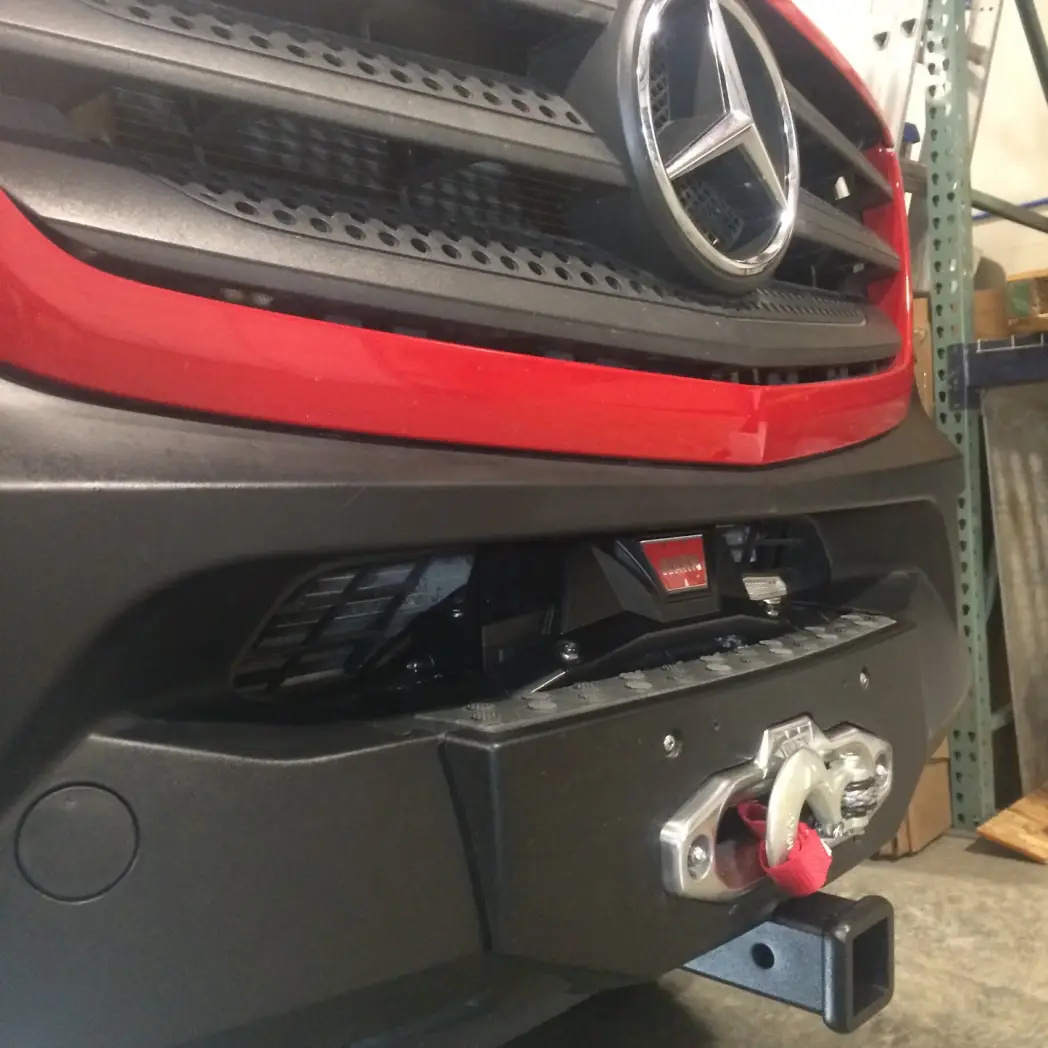

Venture onto dirt roads knowing you have a back up plan if you get stuck or a trail obstacle ahead of you is just a bit beyond your van's capability. Our winch mounting system completely replaces the factory bumper under the plastic cover. We include two front 3/4" thick recovery points and a 2" front receiver hitch attachment. You can choose to run all three of the bolt on accessories or any combination. The optional hitch is great for bicycle racks, as a recovery point and campground utility. Constructed from 3/16" steel plate and 1/4" square tube. Powder coated black with a zinc primer for maximum corrosion resistance. This front winch mount is designed around the Warn Zeon series of winches. Many other winches are compatible with this kit, but please reference the Warn Zeon 12 winch for the maximum winch size. The front hitch should only be used on vans without collision assist / brake sensors, as carrying gear can cause sensor warnings.

Hitch Receiver Static Load Capacity: 300 lbs

INCLUDED COMPONENTS

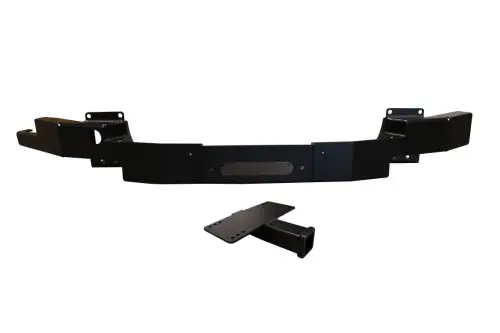

  • Front Hitch Mount
  • Bolt On Shackle Mounting Points
  • Mounting Hardware

FITMENT GUIDE

  • MODEL: SPRINTER 2500 and 3500
  • YEAR: 2015-2018
  • DRIVE TYPE: 4X4 and 2WD
  • NOTES: Designed around the Warn VR series of winches. Many other winches are compatible with this kit, but please reference the Warn VR 12-S winch for the maximum winch size.
  • NOTE: Not compatible with 4-cyl diesel or gas engine.
  • NOTE: Not compatible with vans that have the HD Rear AC Package, the additional cooling fans do not clear.

LABOR TIMES

  • Recommended Shop Labor Time: 6 Hours

Application List

2015-2018 Mercedes Benz Sprinter 1500 2WD/4WD
2015-2018 Mercedes Benz Sprinter 2500 2WD/4WD
2015-2018 Mercedes Benz Sprinter 3500 2WD/4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W14.0000” x H18.0000” x L64.0000”
  • $100.00
  • Free Ground Shipping Unavailable | Special Handling Is Required* (Add To Cart To View Details)
