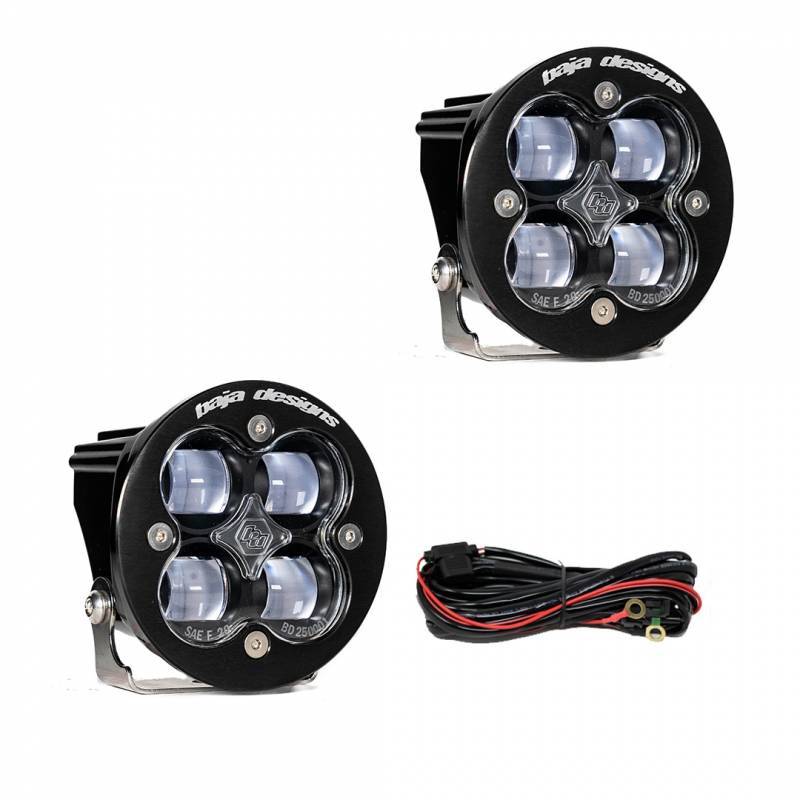

247802 | Baja Designs Squadron-R SAE LED Auxiliary Fog Light Pod | Pair, Clear, Universal
Squadron-R SAE LED Auxiliary Fog Light Pod | Pair, Clear, Universal - Check Specification Before Ordering
Description
Baja Designs next generation Squadron® SAE is the perfect road-legal auxiliary fog light on the market today. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model.
The Squadron® SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts. Keeping you safe on the road or trails, the Squadron® SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics.
Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection. USPTO Reg No. 5,766,659
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
SKU: 247802
Dimensions
| Depth (in.) | 2.77 |
| Height (in.) | 3.07 |
| Length (in.) | 3.07 |
| Weight (lbs.) | 0.75 |
Specifications
| Amperage Rating (A) | 2.1 |
| Average Rated Life (hr.) | 49930 |
| Beam Pattern | SAE Fog |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 2420 |
| Description | Round; SAE Fog; Clear; Pair |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lens Material | Beam |
| Lighting Quantity | 4 |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron-R SAE LED Light Pod Pair w/ Wiring Harness |
| Wattage (W) | 29 |
| Wiring Harness Included | Yes |
Standards & Compliance
| DOT Approved | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (SAE) | SAE Standard J583 |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Street Legal | Yes |
