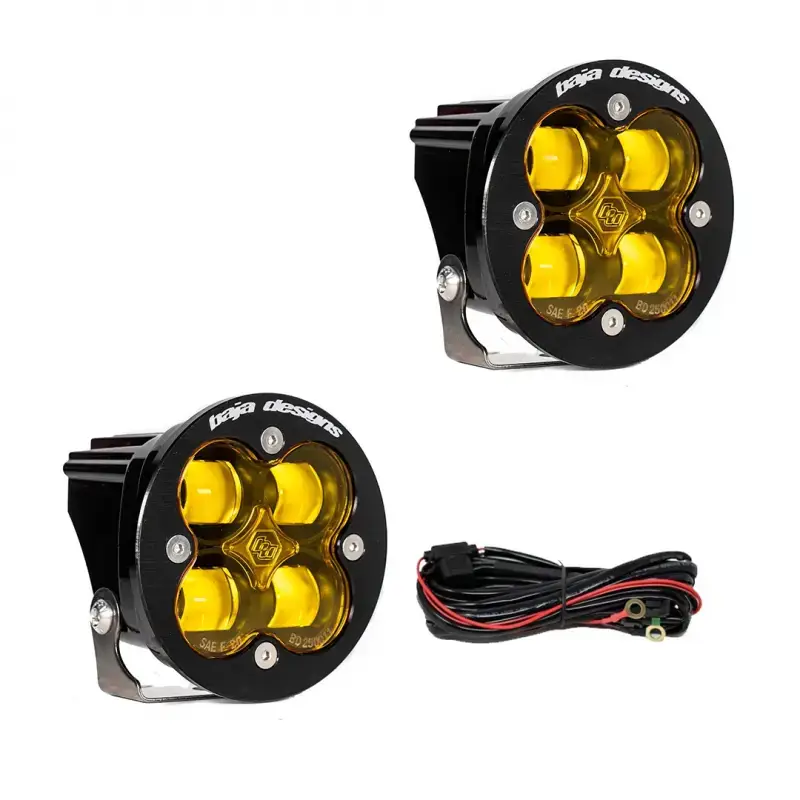

247816 | Baja Designs Squadron-R SAE LED Auxiliary Fog Light Pod | Pair, Amber, Universal

Squadron-R SAE LED Auxiliary Fog Light Pod | Pair, Amber, Universal - Check Specification Before Ordering

247816
Pricing: $486.43
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Baja Designs next generation Squadron® SAE is the perfect road-legal auxiliary fog light on the market today. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model.

The Squadron® SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts. Keeping you safe on the road or trails, the Squadron® SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics.

Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection. USPTO Reg No. 5,766,659

  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications

SKU: 247816

Dimensions

Depth (in.) 2.77
Height (in.) 3.07
Length (in.) 3.07
Weight (lbs.) 0.75

Specifications

Amperage Rating (A) 2.1
Average Rated Life (hr.) 49930
Beam Pattern SAE Fog
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2420
Description Round; SAE Fog; Amber; Pair
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Amber
Lighting Modes Hardcoated Polycarbonate
Light Quantity 2
Lens Material Beam
Lighting Quantity 4
Lighting Type Forward Projecting
Lighting Technology Cree LED
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron-R SAE LED Light Pod Pair w/ Wiring Harness
Wattage (W) 29
Wiring Harness Included Yes

Standards & Compliance

DOT Approved No
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (SAE) SAE Standard J583
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Street Legal Yes
