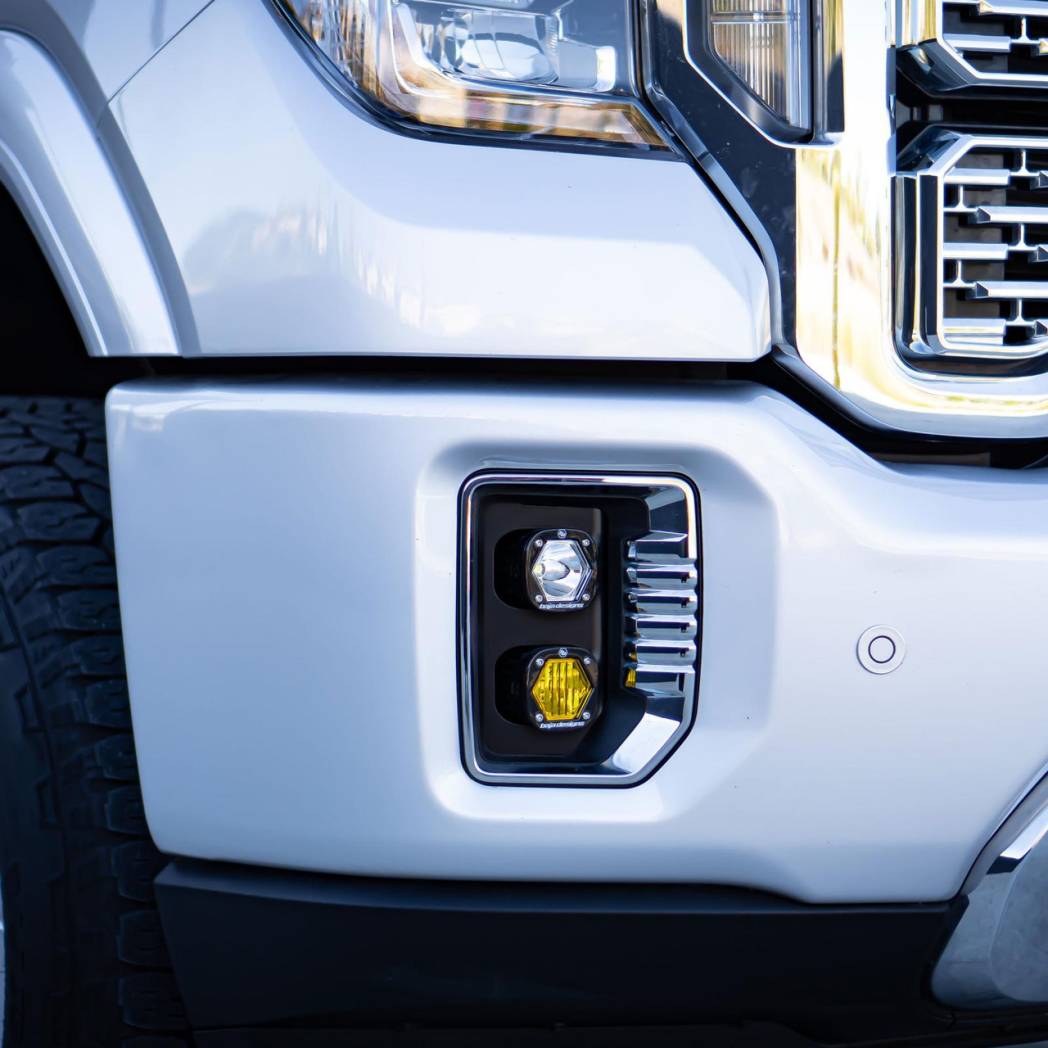

he Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your GMC Sierra 2500 & 3500. This kit utilizes the factory fog pocket location to pack two S1 lights on each side. This kit is controlled by the factory fog switch to operate the lower pair S1 lights. The upper pair of S1 lights are operated by your high beams.
The included wiring harness is designed to be used in conjunction with factory light switches, and sPOD / Switch Pros units. If you're looking to add not only safety but lighting performance this is your kit! US Patent Number 11273751.
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color

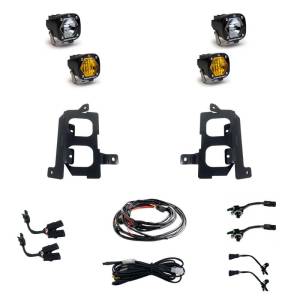

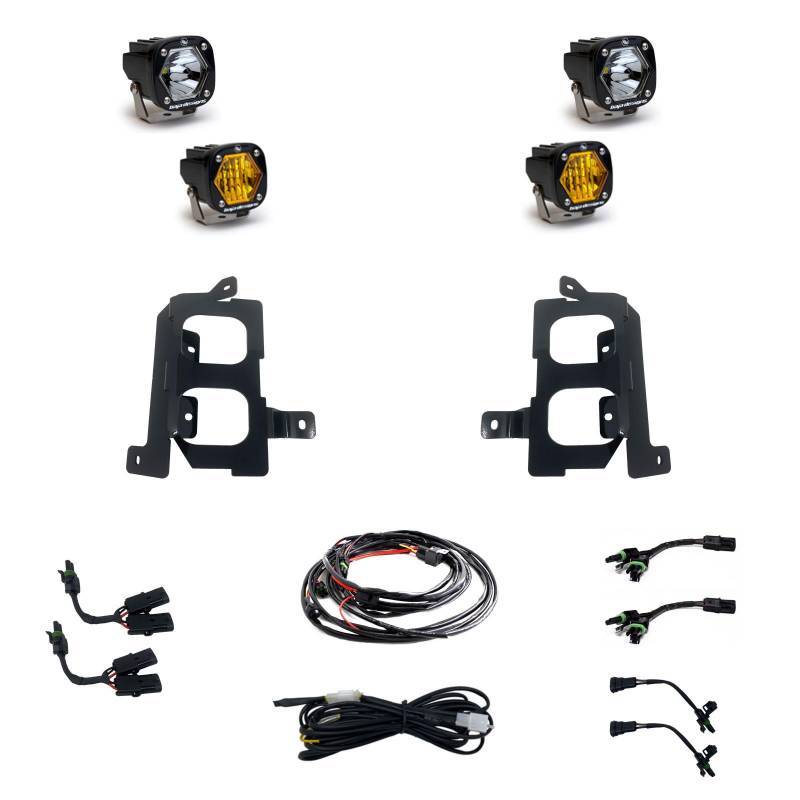

INCLUDED WITH KIT:
SKU: 380001
Dimensions
| Depth (in.) |
2.100 |
| Height (in.) |
2.100 |
| Length (in.) |
2.100 |
| Weight (lbs.) |
0.400 |
Specifications
| Amperage Rating (A) |
1.420 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Spot |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
2320 |
| Description |
Spot; Clear |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lighting Modes |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lens Material |
Beam |
| Lighting Quantity |
1 |
| Lighting Type |
LED |
| Lighting Technology |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
S1 LED Light Pod |
| Voltage |
9-28 |
| Wattage (W) |
19.596 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 380015
Dimensions
| Depth (in.) |
2.100 |
| Height (in.) |
2.100 |
| Length (in.) |
2.100 |
| Weight (lbs.) |
0.400 |
Specifications
| Amperage Rating (A) |
1.420 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Wide Cornering |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
2320 |
| Description |
Wide Cornering; Amber |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Amber |
| Lighting Modes |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lens Material |
Beam |
| Lighting Quantity |
1 |
| Lighting Type |
LED |
| Lighting Technology |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
S1 LED Light Pod |
| Voltage |
9-28 |
| Wattage (W) |
19.596 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
